Part 2SK2225-80-E
Description High Speed Power Switching MOSFET
Category MOSFET
Manufacturer Renesas
Size 207.46 KB
2SK2225-80-E Datasheet (PDF) Download
Renesas
2SK2225-80-E

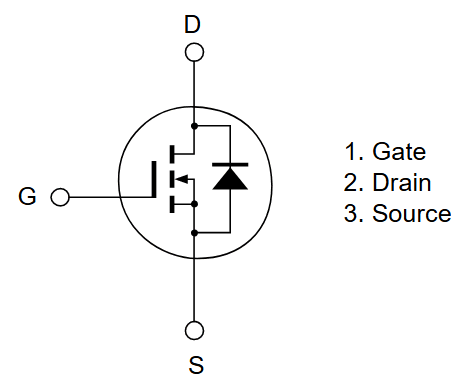

2SK2225-80-E reference image

Representative 2SK2225-80-E image (package may vary by manufacturer)

Overview

  • High breakdown voltage (VDSS = 1500 V)
  • High speed switching
  • Low drive current
  • Quality grade: Standard Outline RENESAS Package code: PRSS0003ZP-A, PRSS0003ZD-A (Package name: TO-3PFP, TO-3PF)
  • G 1 S 23 Datasheet
2SK2225-80-E datasheet preview
