Renesas Electronics HSM83
Silicon Epitaxial Planar Diode
| Part No. | HSM83 |
|---|---|
| Datasheet | HSM83 Download |
| Manufacturer |  Renesas Electronics |
| Description | Silicon Epitaxial Planar Diode |
| Buy | Stock & Price |
FEATURES

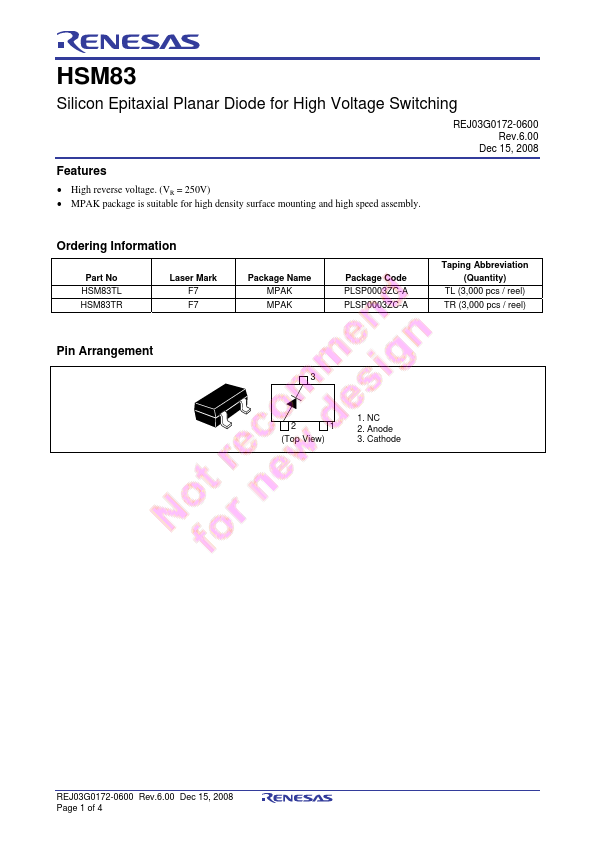

● High reverse voltage. (VR = 250V)● MPAK package is suitable for high density surface mounting and high speed assembly. Ordering Information Part No HSM83TL HSM83TR Laser Mark F7 F7 Package Name MPAK MPAK Package Code PLSP0003ZC-A PLSP0003ZC-A Taping Abbreviation (Quantity) TL (3,000 pcs / reel) TR (3,000 pcs / reel) Pin Arrangement 3 2 1 (Top View) 1. NC 2. Anode 3. Cathode REJ03G0172-0600 Rev.6.00 Dec 15, 2008 Page 1 of 4 HSM83

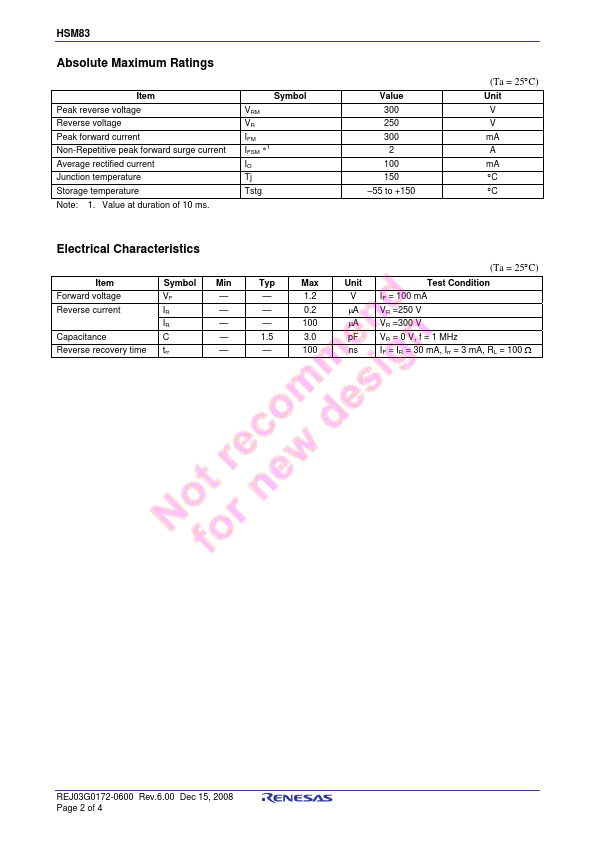

ABSOLUTE MAXIMUM RATINGS
Item Peak reverse voltage Reverse voltage Peak forward current Non-Repetitive peak forward surge current Average rectified current Junction temperature Storage temperature Note: 1. Value at duration of 10 ms. Symbol VRM VR IFM IFSM *1 IO Tj Tstg Value 300 250 300 2 100 150 –55 to +150 (Ta = 25°C) Unit V V mA A mA °C °CELECTRICAL CHARACTERISTICS

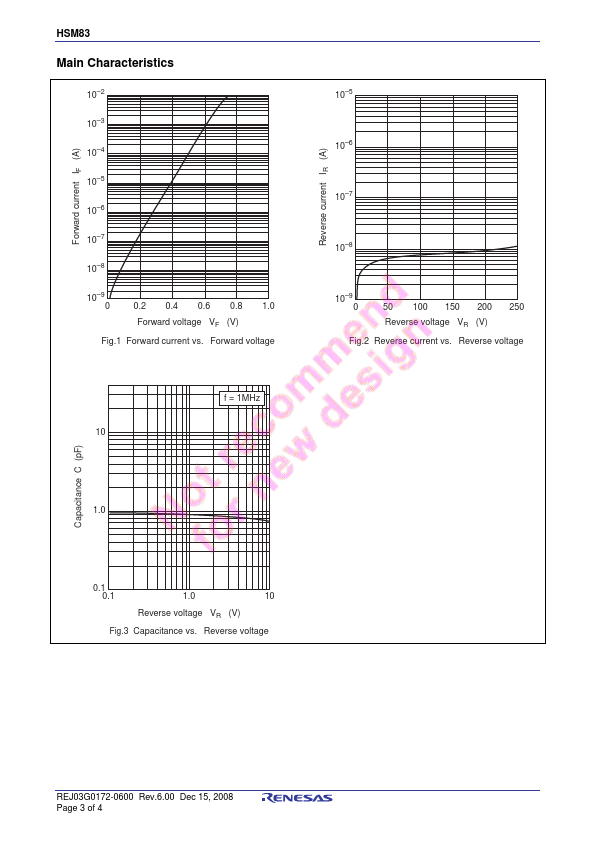

(Ta = 25°C) Item Symbol Min Typ Max Unit Test Condition Forward voltage VF Reverse current IR IR Capacitance C Reverse recovery time trr — — 1.2 V IF = 100 mA — — 0.2 μA VR =250 V —...
