HSM88WA Datasheet Silicon Schottky Barrier Diode

Manufacturer: Renesas

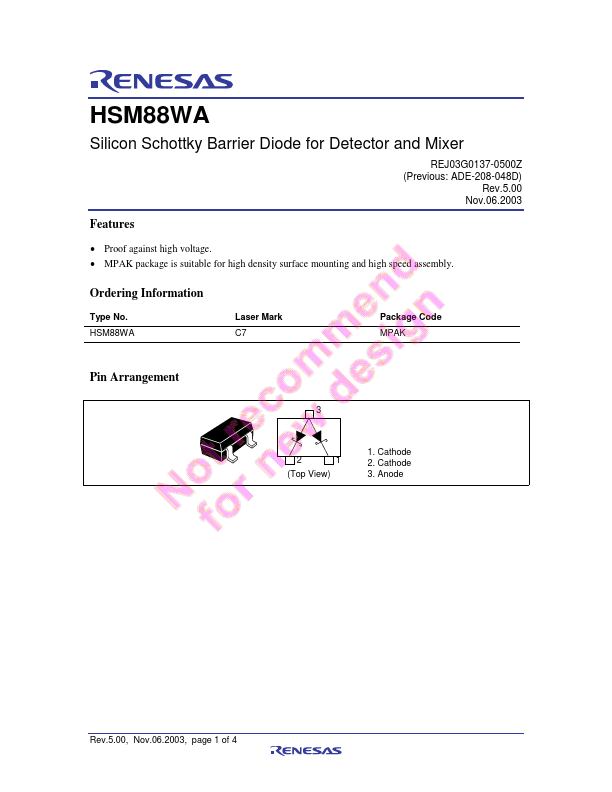

Overview: HSM88WA Silicon Schottky Barrier Diode for Detector and Mixer REJ03G0137-0500Z (Previous: ADE-208-048D) Rev.5.00 Nov.06.

Datasheet Details

Part number	HSM88WA
Manufacturer	Renesas
File Size	171.34 KB
Description	Silicon Schottky Barrier Diode
Datasheet	HSM88WA-Renesas.pdf

Proof against high voltage.

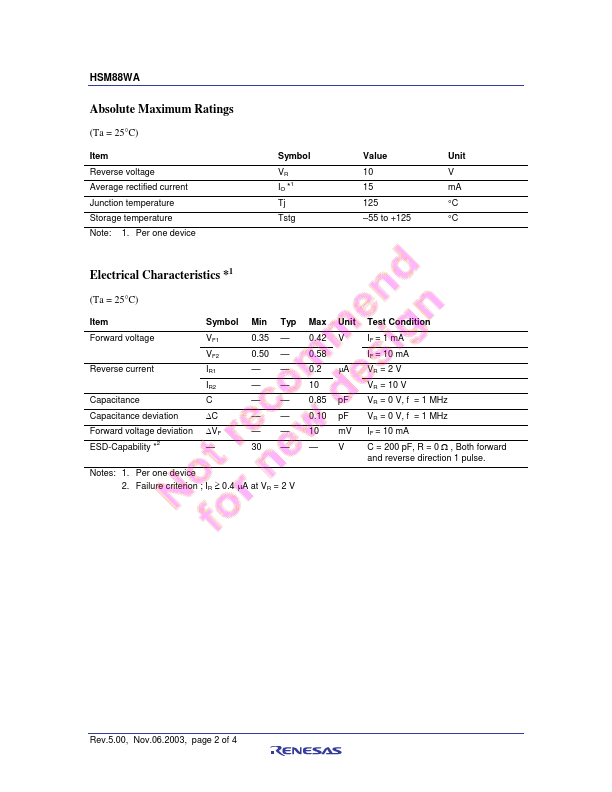

MPAK package is suitable for high density surface mounting and high speed assembly. Ordering Information Type No. HSM88WA Laser Mark C7 Package Code MPAK Pin Arrangement 3 2 1 (Top View) 1. Cathode 2. Cathode 3. Anode Rev.5.00, Nov.06.2003, page 1 of 4 HSM88WA Absolute Maximum Ratings (Ta = 25°C) Item Reverse voltage Average rectified current Junction temperature Storage temperature Note: 1. Per one device Symbol VR IO.
1 Tj Tstg V.
