RC21005B - VersaClock 7 Programmable Clock Generator

This page provides the datasheet information for the RC21005B, a member of the RC21008B VersaClock 7 Programmable Clock Generator family.

Product Overview

Renesas

📥 Download Datasheet

Datasheet Details

Part number	RC21005B
Manufacturer	Renesas
File Size	1.84 MB
Description	VersaClock 7 Programmable Clock Generator
Datasheet	RC21005B Datasheet

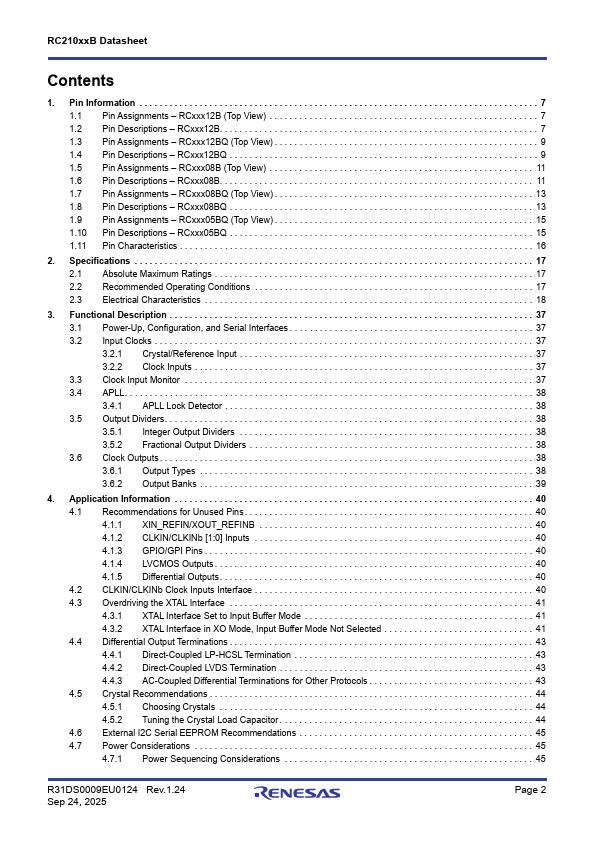

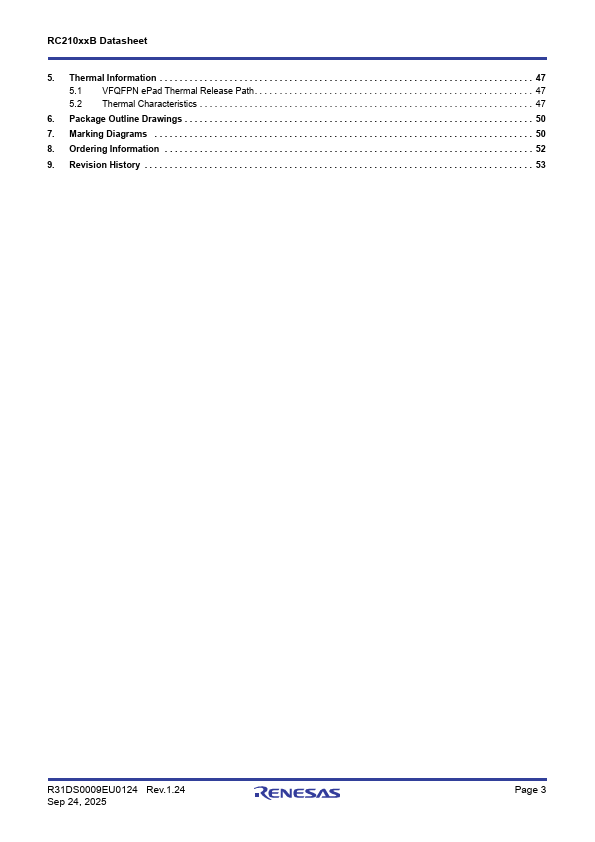

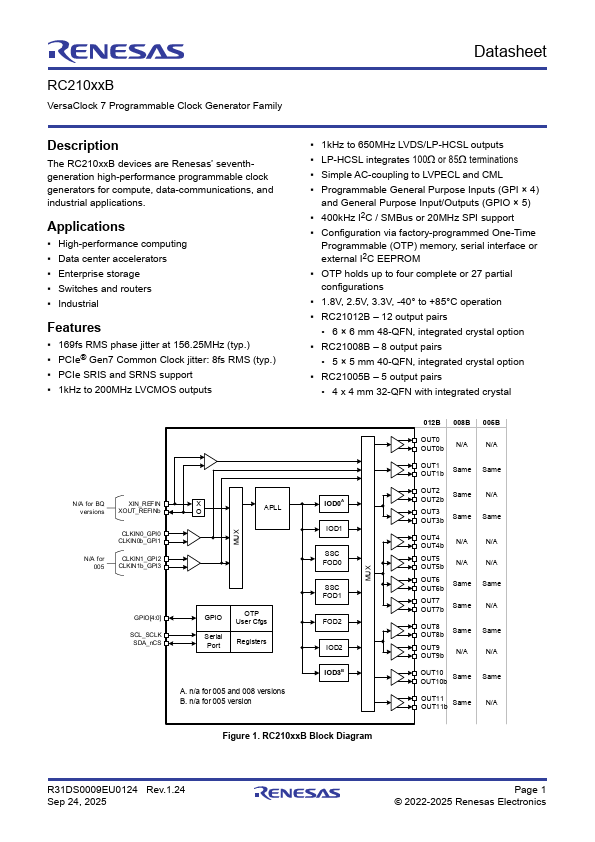

Additional preview pages of the RC21005B datasheet.

RC21005B Product details

Description

The RC210xxB devices are Renesas’ seventhgeneration high-performance programmable clock generators for compute, data-communications, and industrial applications.

High-performance computing Data center accelerators Enterprise storage Switches and routers Ind

Features

169fs RMS phase jitter at 156.25MHz (typ. ).
PCIe® Gen7 Common Clock jitter: 8fs RMS (typ. ).
PCIe SRIS and SRNS support.
1kHz to 200MHz LVCMOS outputs.
1kHz to 650MHz LVDS/LP-HCSL outputs.
LP-HCSL integrates 100 or 85 terminations.
Simple AC-coupling to LVPECL and CML.
Programmable General Purpose Inputs (GPI × 4) and General Purpose Input/Outputs (GPIO × 5).
400kHz I2C / SMBus or 20MHz SPI support.
Configuration via factory-programmed One-Tim.
