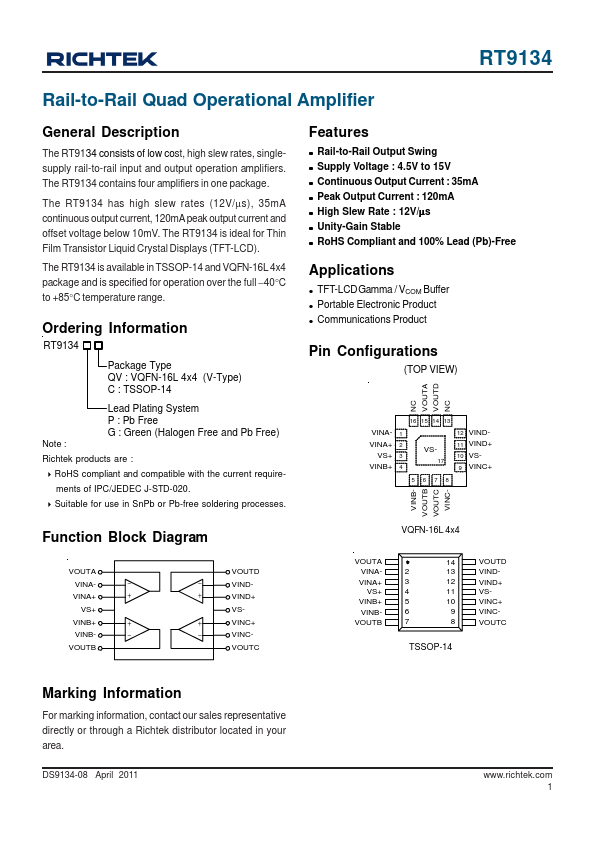

RT9134
RT9134 is Rail-to-Rail Quad Operational Amplifier manufactured by Richiek.
Rail-to-Rail Quad Operational Amplifier
General Description
The RT9134 consists of low cost, high slew rates, singlesupply rail-to-rail input and output operation amplifiers. The RT9134 contains four amplifiers in one package.
The RT9134 has high slew rates (12V/μs), 35m A continuous output current, 120m A peak output current and offset voltage below 10m V. The RT9134 is ideal for Thin Film Transistor Liquid Crystal Displays (TFT-LCD).
The RT9134 is available in TSSOP-14 and VQFN-16L 4x4 package and is specified for operation over the full
- 40°C to +85°C temperature range.
Ordering Information
Package Type QV : VQFN-16L 4x4 (V-Type) C : TSSOP-14
Note :
Lead Plating System P : Pb Free G : Green (Halogen Free and Pb Free)
Richtek products are :
` Ro HS pliant and patible with the current require- ments of IPC/JEDEC J-STD-020.
` Suitable for use in Sn Pb or Pb-free soldering processes.
Function Block Diagram
VOUTA
VINA-
- VINA+
+
VS+
VINB+
+
VINB-
- VOUTB
VOUTD
- VIND-
+
VIND+
VS-
+
VINC+...
