RT9136 - Rail-to-Rail Quad Unity-Gain Operational Amplifier

Product Overview

Richiek

📥 Download Datasheet

RT9136 Rail-to-Rail Quad Unity-Gain Operational Amplifier by Richiek - Datasheet Preview — Datasheet preview – RT9136

Datasheet Details

Part number	RT9136
Manufacturer	Richiek
File Size	251.69 KB
Description	Rail-to-Rail Quad Unity-Gain Operational Amplifier
Datasheet	RT9136 Datasheet

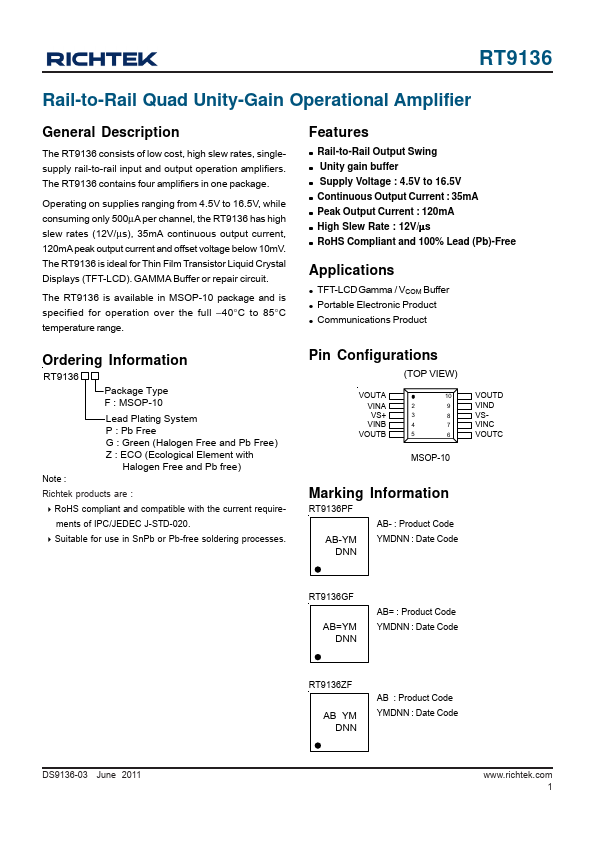

Additional preview pages of the RT9136 datasheet.

Product details

Description

The RT9136 consists of low cost, high slew rates, singlesupply rail-to-rail input and output operation amplifiers.

Features

z Rail-to-Rail Output Swing z Unity gain buffer z Supply Voltage : 4.5V to 16.5V z Continuous Output Current : 35mA z Peak Output Current : 120mA z High Slew Rate : 12V/μs z RoHS Compliant and 100% Lead (Pb)-Free.
