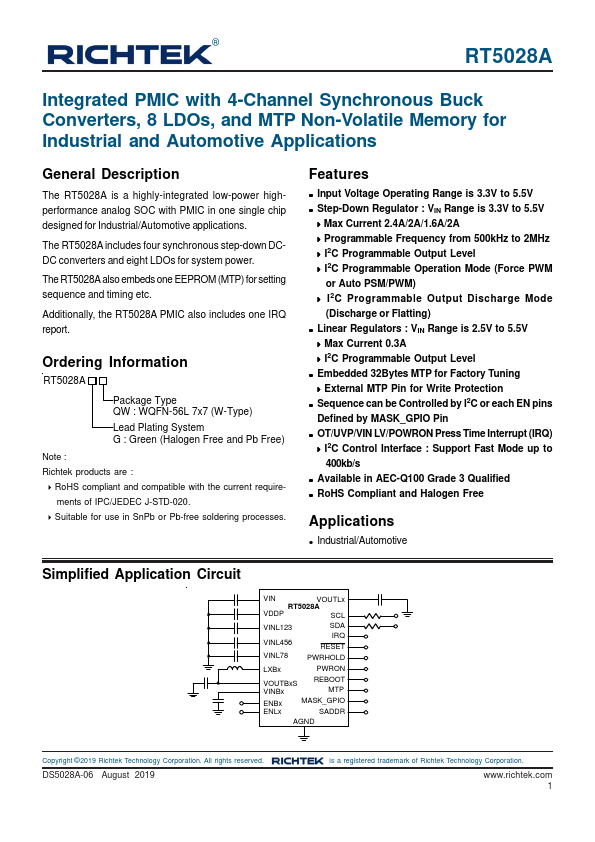

RT5028A Overview
The RT5028A is a highly-integrated low-power highperformance analog SOC with PMIC in one single chip designed for Industrial/Automotive applications. The RT5028A includes four synchronous step-down DC/ DC converters and eight LDOs for system power. The RT5028A also embeds one EEPROM (MTP) for setting sequence and timing etc.
RT5028A Key Features
- Input Voltage Operating Range is 3.3V to 5.5V
- Step-Down Regulator : VIN Range is 3.3V to 5.5V
- Linear Regulators : VIN Range is 2.5V to 5.5V
- Embedded 32Bytes MTP for Factory Tuning External MTP Pin for Write Protection
- Sequence can be Controlled by I2C or each EN pins Defined by MASK_GPIO Pin
- Available in AEC-Q100 Grade 3 Qualified 2
- RoHS pliant and Halogen Free
RT5028A Applications
- Input Voltage Operating Range is 3.3V to 5.5V
- Step-Down Regulator : VIN Range is 3.3V to 5.5V
- Linear Regulators : VIN Range is 2.5V to 5.5V
- Embedded 32Bytes MTP for Factory Tuning External MTP Pin for Write Protection
