RT5028D - PMIC

Product Overview

Richtek

Datasheet Details

Part number	RT5028D
Manufacturer	Richtek
File Size	511.29 KB
Description	PMIC
Datasheet	RT5028D Datasheet

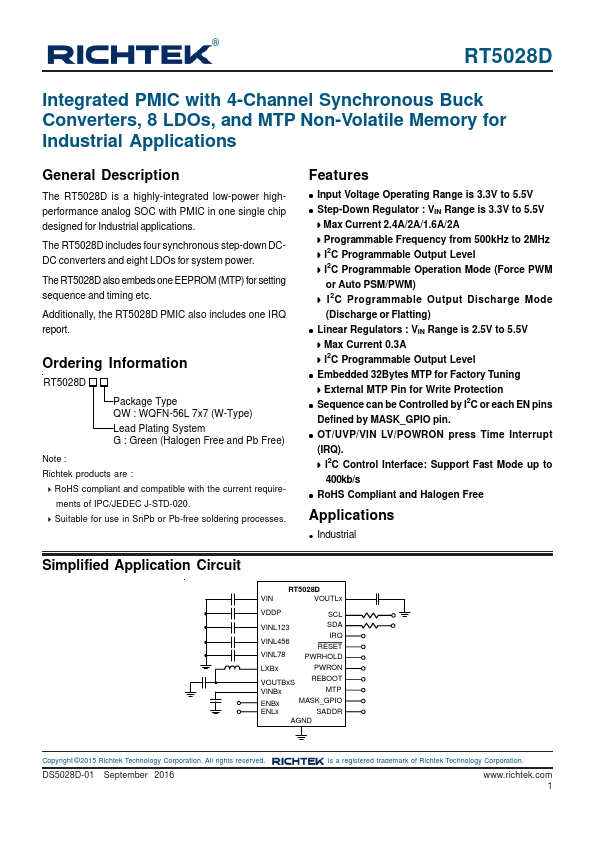

Additional preview pages of the RT5028D datasheet.

Product details

Description

The RT5028D is a highly-integrated low-power highperformance analog SOC with PMIC in one single chip designed for Industrial applications. Industrial Ordering Information RT5028D Package Type QW : WQFN-56L 7x7 (W-Type) Lead Plating System G :

Features

Input Voltage Operating Range is 3.3V to 5.5V.
Step-Down Regulator : VIN Range is 3.3V to 5.5V  Max Current 2.4A/2A/1.6A/2A  Programmable Frequency from 500kHz to 2MHz  I2C Programmable Output Level  I2C Programmable Operation Mode (Force PWM or Auto PSM/PWM)  I2C Programmable Output Discharge Mode (Discharge or Flatting).
Linear Regulators : VIN Range is 2.5V to 5.5V  Max Current 0.3A  I2C Programmable Output Level.
Embedded 32Bytes MTP for Factory Tuning  External.
