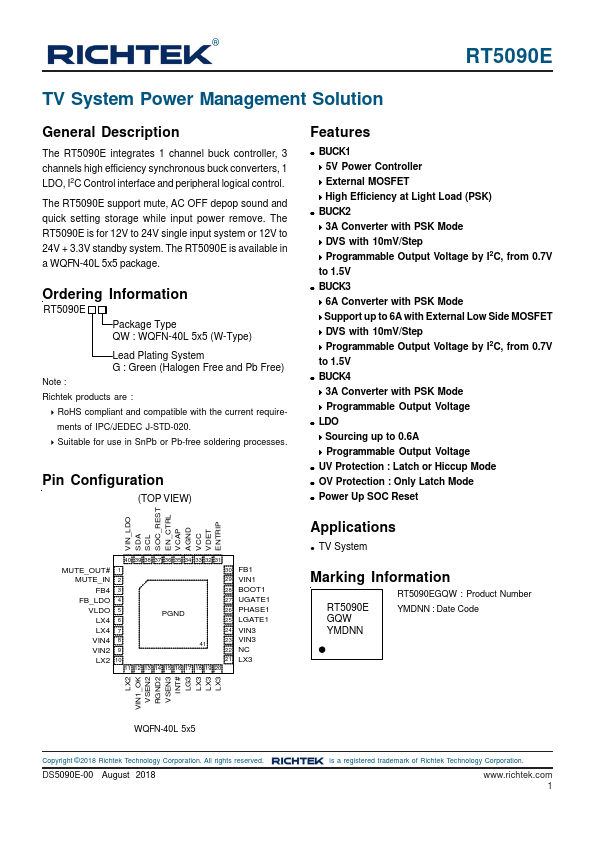

RT5090E
RT5090E is TV System Power Management Solution manufactured by Richtek.
®
TV System Power Management Solution
General Description
The RT5090E integrates 1 channel buck controller, 3 channels high efficiency synchronous buck converters, 1 LDO, I2C Control interface and peripheral logical control.
The RT5090E support mute, AC OFF depop sound and quick setting storage while input power remove. The RT5090E is for 12V to 24V single input system or 12V to 24V + 3.3V standby system. The RT5090E is available in a WQFN-40L 5x5 package.
Ordering Information
RT5090E Package Type QW : WQFN-40L 5x5 (W-Type) Lead Plating System G : Green (Halogen Free and Pb Free)
Note : Richtek products are :
RoHS pliant and patible with the current requirements of...
