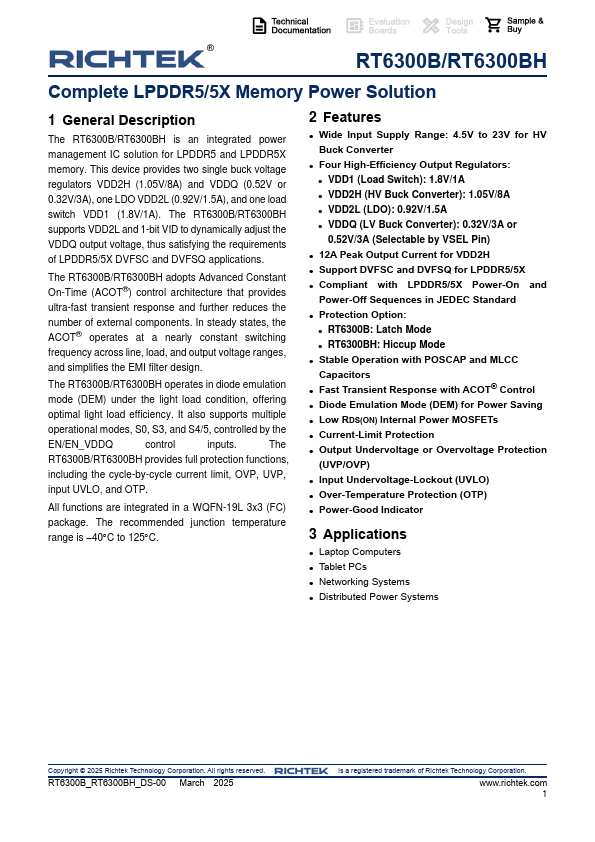

RT6300B Overview
Description
The RT6300B/RT6300BH is an integrated power management IC solution for LPDDR5 and LPDDR5X memory. This device provides two single buck voltage regulators VDD2H (1.05V/8A) and VDDQ (0.52V or 0.32V/3A), one LDO VDD2L (0.92V/1.5A), and one load switch VDD1 (1.8V/1A).
Key Features
- Wide Input Supply Range: 4.5V to 23V for HV Buck Converter
- Four High-Efficiency Output Regulators
- VDD1 (Load Switch): 1.8V/1A
- VDD2H (HV Buck Converter): 1.05V/8A
- VDD2L (LDO): 0.92V/1.5A
- VDDQ (LV Buck Converter): 0.32V/3A or 0.52V/3A (Selectable by VSEL Pin)
- 12A Peak Output Current for VDD2H
- Support DVFSC and DVFSQ for LPDDR5/5X
- Compliant with LPDDR5/5X Power-On and Power-Off Sequences in JEDEC Standard
- Protection Option
