RT6300C
RT6300C is Complete LPDDR5/5X Memory Power Solution manufactured by Richtek.

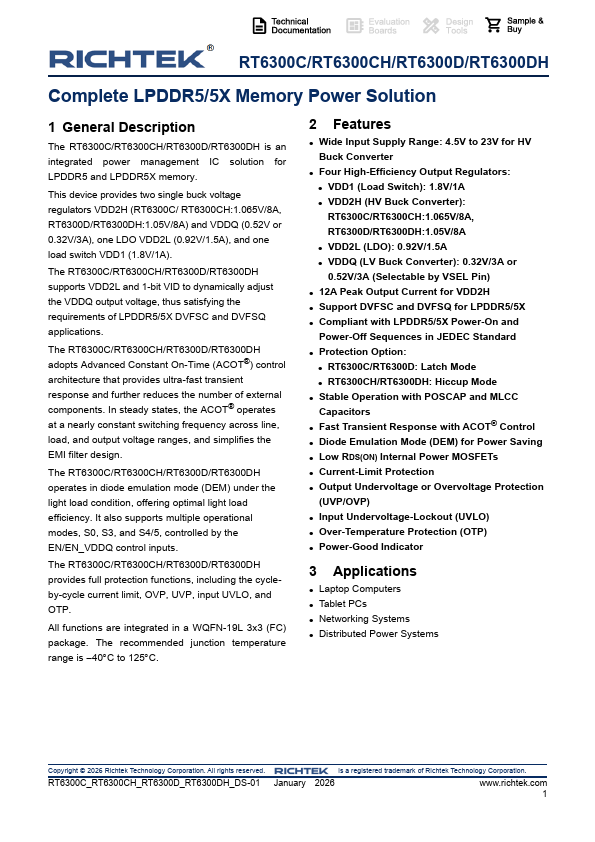

RT6300C/RT6300CH/RT6300D/RT6300DH plete LPDDR5/5X Memory Power Solution
1 General Description
The RT6300C/RT6300CH/RT6300D/RT6300DH is an integrated power management IC solution for LPDDR5 and LPDDR5X memory.
This device provides two single buck voltage regulators VDD2H (RT6300C/ RT6300CH:1.065V/8A, RT6300D/RT6300DH:1.05V/8A) and VDDQ (0.52V or 0.32V/3A), one LDO VDD2L (0.92V/1.5A), and one load switch VDD1 (1.8V/1A).
The RT6300C/RT6300CH/RT6300D/RT6300DH supports VDD2L and 1-bit VID to dynamically adjust the VDDQ output voltage, thus satisfying the requirements of LPDDR5/5X DVFSC and DVFSQ applications.
The RT6300C/RT6300CH/RT6300D/RT6300DH adopts Advanced Constant On-Time (ACOT® )...
