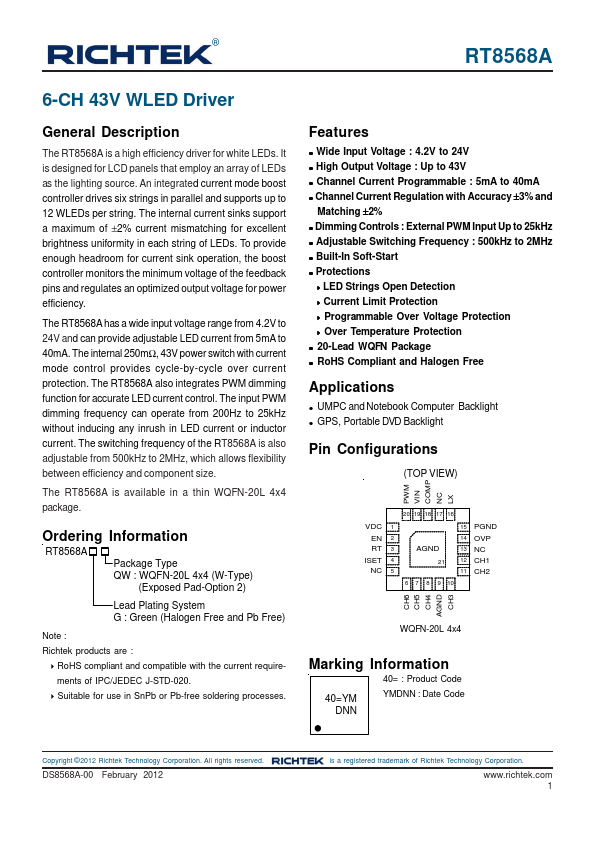

RT8568A
RT8568A is 6-CH 43V WLED Driver manufactured by Richtek.
®
6-CH 43V WLED Driver
General Description
The RT8568A is a high efficiency driver for white LEDs. It is designed for LCD panels that employ an array of LEDs as the lighting source. An integrated current mode boost controller drives six strings in parallel and supports up to 12 WLEDs per string. The internal current sinks support a maximum of ±2% current mismatching for excellent brightness uniformity in each string of LEDs. To provide enough headroom for current sink operation, the boost controller monitors the minimum voltage of the feedback pins and regulates an optimized output voltage for power efficiency.
The RT8568A has a wide input voltage range from 4.2V to 24V and can...
