RT8816B - Dual-Phase PWM Controller

General Description

The RT8816B is a 2/1 phase synchronous Buck PWM controller which is optimized for high performance graphic microprocessor and computer applications.

Key Features

  • external reference input and PWMVID dynamic output voltage control, in which the feedback voltage is regulated and tracks external input reference voltage. Other features include adjustable switching frequency, dynamic phase number control, internal softstart, power good indicator, and enable functions. Ordering Information RT8816B Package Type QW : WQFN-20L 3x3 (W-Type) Lead Plating System G : Green (Halogen Free and Pb Free) Note : Richtek products are :  RoHS compliant and compatible with th.

📥 Download Datasheet

Datasheet Details

Part number RT8816B
Manufacturer Richtek
File Size 355.62 KB
Description Dual-Phase PWM Controller
Datasheet download datasheet RT8816B Datasheet

Full PDF Text Transcription for RT8816B (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for RT8816B. For precise diagrams, and layout, please refer to the original PDF.

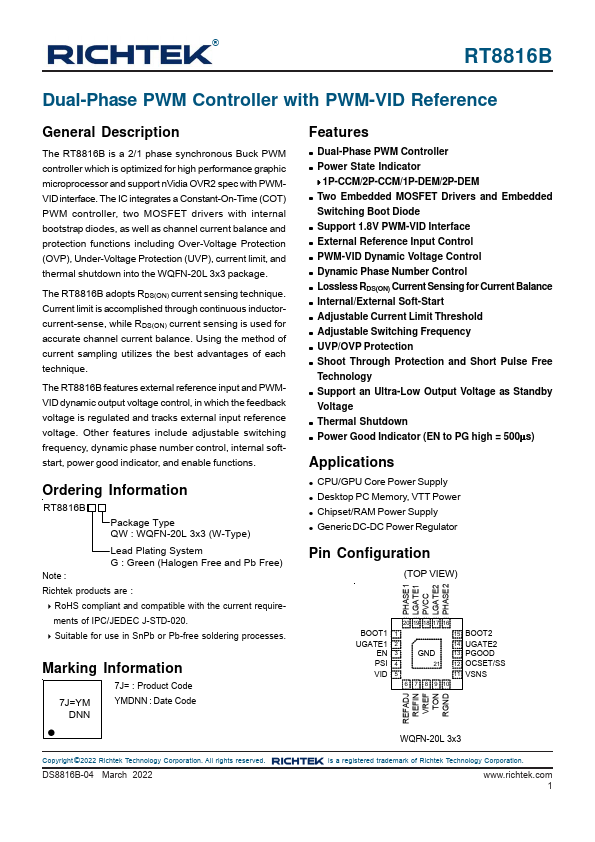

® RT8816B Dual-Phase PWM Controller with PWM-VID Reference General Description The RT8816B is a 2/1 phase synchronous Buck PWM controller which is optimized for high perf...

View more extracted text
phase synchronous Buck PWM controller which is optimized for high performance graphic microprocessor and computer applications. The IC integrates a Constant-On-Time (COT) PWM controller, two MOSFET drivers with internal bootstrap diodes, as well as channel current balance and protection functions including Over-Voltage Protection (OVP), Under-Voltage Protection (UVP), current limit, and thermal shutdown into the WQFN-20L 3x3 package. The RT8816B adopts RDS(ON) current sensing technique. Current limit is accomplished through continuous inductorcurrent-sense, while RDS(ON) current sensing is used for accurate channel current
