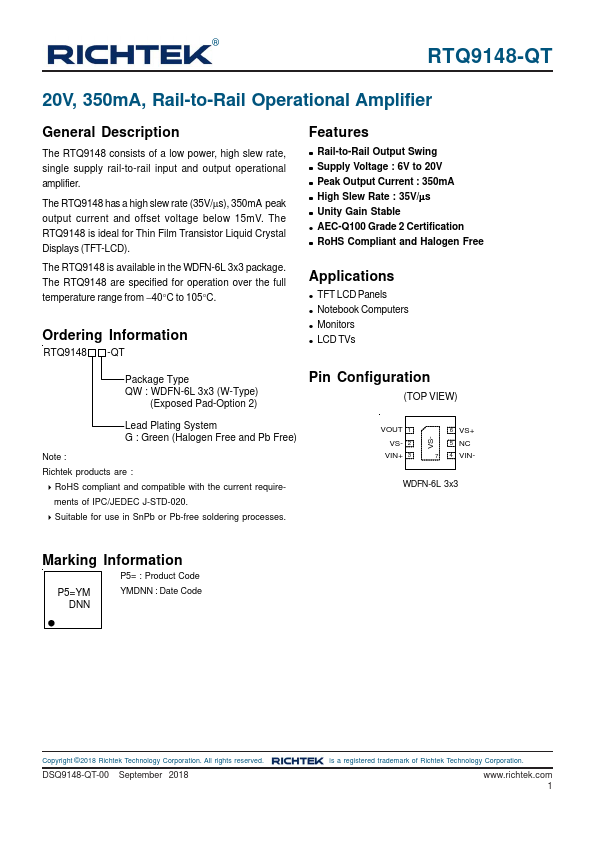

RTQ9148-QT Description
The RTQ9148 consists of a low power, high slew rate, single supply rail-to-rail input and output operational amplifier. The RTQ9148 has a high slew rate (35V/μs), 350mA peak output current and offset voltage below 15mV. The RTQ9148 is ideal for Thin Film Transistor Liquid Crystal Displays (TFT-LCD).
RTQ9148-QT Key Features
- Rail-to-Rail Output Swing
- Supply Voltage : 6V to 20V
- Peak Output Current : 350mA
- High Slew Rate : 35V/μs
- Unity Gain Stable
- AEC-Q100 Grade 2 Certification
- RoHS pliant and Halogen Free
