RK616 Overview

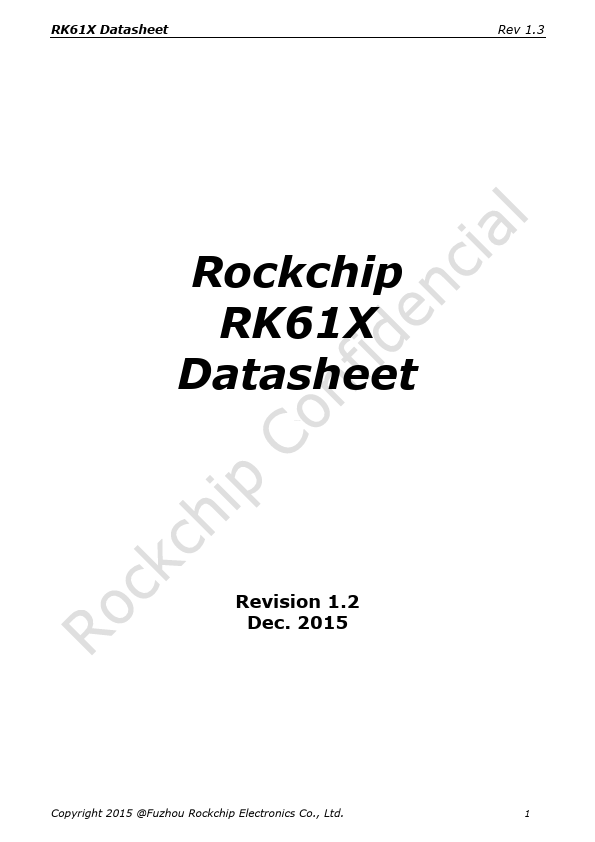

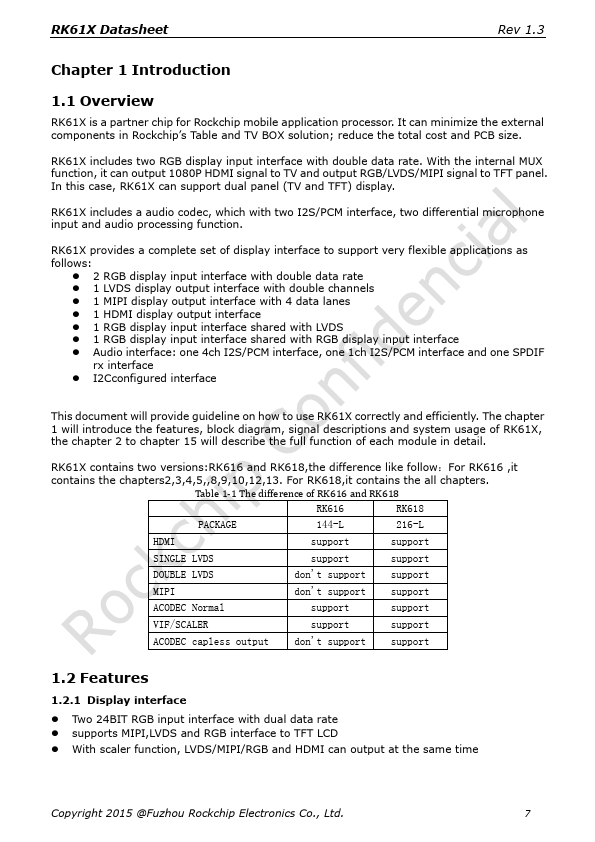

RK61X Datasheet Rev 1.3 Rockchip RK61X Datasheet PRELIM IN ARY Revision 1.2 Dec. 2015 Copyright 2015 @Fuzhou Rockchip Electronics Co., Ltd. 1 RK61X Datasheet Rev 1.3 Chapter 1 Introduction 1.1 Overview RK61X is a partner chip for Rockchip mobile application processor.
RK616 Key Features

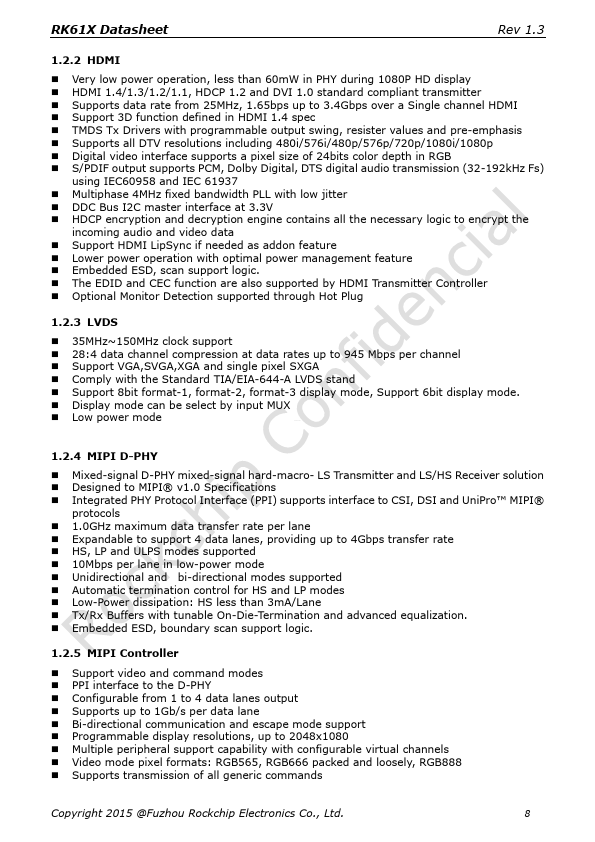

- Two 24BIT RGB input interface with dual data rate
- supports MIPI,LVDS and RGB interface to TFT LCD
- With scaler function, LVDS/MIPI/RGB and HDMI can output at the same time
- Very low power operation, less than 60mW in PHY during 1080P HD display
- HDMI 1.4/1.3/1.2/1.1, HDCP 1.2 and DVI 1.0 standard pliant transmitter
- Supports data rate from 25MHz, 1.65bps up to 3.4Gbps over a Single channel HDMI
- Support 3D function defined in HDMI 1.4 spec
- TMDS Tx Drivers with programmable output swing, resister values and pre-emphasis
- Supports all DTV resolutions including 480i/576i/480p/576p/720p/1080i/1080p
- Digital video interface supports a pixel size of 24bits color depth in RGB
RK616 Applications
- 2 RGB display input interface with double data rate
- 1 LVDS display output interface with double channels
- 1 MIPI display output interface with 4 data lanes
