Rockchip RK618

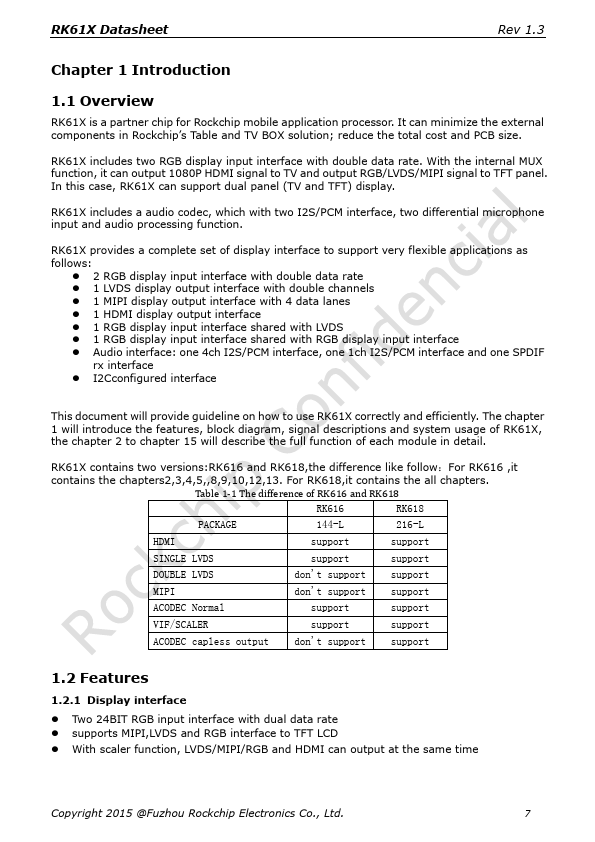

RK61X is a partner chip for Rockchip mobile application processor. It can minimize the external components in Rockchip’s Table and TV BOX solution; reduce the total cost and PCB size. With the internal MUX function, it can output 1080P HDMI signal to TV and output RGB/LVDS/MIPI signal to TFT panel.| Part No. | RK618 |
|---|---|
| Datasheet | RK618 Download |
| Manufacturer |  Rockchip |
| Description | partner chip for Rockchip mobile application processor |
| Buy | Stock & Price |
FEATURES
1.2.1 Display interface● Two 24BIT RGB input interface with dual data rate
● supports MIPI,LVDS and RGB interface to TFT LCD
● With scaler function, LVDS/MIPI/RGB and HDMI can output at the same time Copyright 2015 @Fuzhou Rockchip Electronics Co., Ltd. 7 RK61X Datasheet Rev 1.3 1.2.2 HDMI
● Very low power operation, less than 60mW in PHY during 1080P HD display
● HDMI 1.4/1.3/1.2/1.1, HDCP 1.2 and DVI 1.0 standard compliant transmitter
● Supports data rate from 25MHz, 1.65bps up to 3.4Gbps over a Single channel HDMI
● Support 3D function defined in HDMI 1.4 spec
● TMDS Tx Drivers with programmable output swing, resister values and pre-emphasis
● Supports all DTV resolutions including 480i/576i/480p/576p/720p/1080i/1080p
● Digital video interface supports a pixel size of 24bits color depth in RGB
● S/PDIF output supports PCM, Dolby Digital, DTS digital audio transmission (32-192kHz Fs) using IEC60958 and IEC 61937
● Multiphase 4MHz fixed bandwidth PLL with low jitter
● DDC Bu...
