2SD1857A - POWER TRANSISTOR

Product Overview

Rohm

Part number	2SD1857A
Manufacturer	ROHM
File Size	63.85 KB
Description	POWER TRANSISTOR
Datasheet	2SD1857A Datasheet
Additional preview pages of the 2SD1857A datasheet.

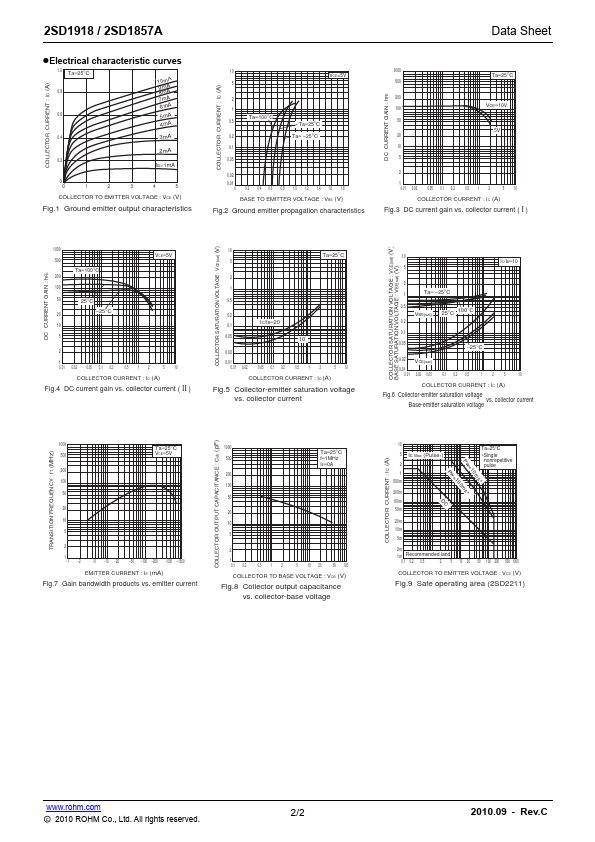

1) High breakdown voltage. (BVCEO = 160V) 2) Low collector output capacitance. (Typ. 20pF at VCB = 10V) 3) High transition frequency. (fT = 80MHZ) 4) Complements the 2SB1275 / 2SB1236A. !External dimensions (Units : mm) 2SD2211 1.0 1.5 0.4 (1) 4.0 2.5 0.5 3.0 0.5 (3) 1.5 0.4 1.5 4.5 1.6 (2) ROHM : MPT3 EIAJ : SC-62 (1) Base(Gate) (2) Collector(Drain) (3) Emitter(Source) !Absolute maximum ratings (Ta = 25°C) Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage.
