BD14222G-C
BD14222G-C is Automotive Current Sense Amplifier manufactured by ROHM.
- Part of the BD14220G-C comparator family.
- Part of the BD14220G-C comparator family.

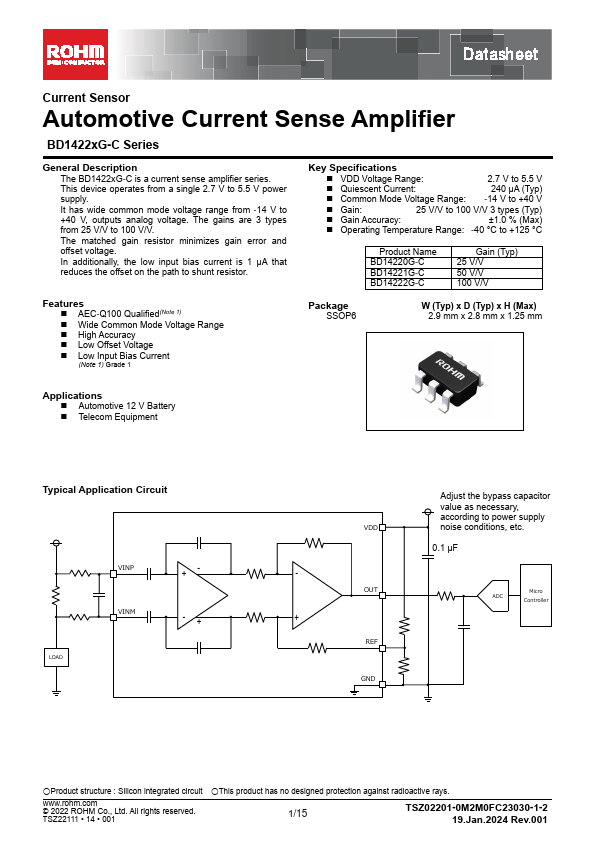

Description
The BD1422x G-C is a current sense amplifier series. This device operates from a single 2.7 V to 5.5 V power supply. It has wide mon mode voltage range from -14 V to +40 V, outputs analog voltage. The gains are 3 types from 25 V/V to 100 V/V. The matched gain resistor minimizes gain error and offset voltage. In additionally, the low input bias current is 1 µA that reduces the offset on the path to shunt resistor.
Features
- AEC-Q100 Qualified(Note 1)
- Wide mon Mode Voltage Range
- High Accuracy
- Low Offset Voltage
- Low Input Bias Current
(Note 1) Grade 1
Key Specifications
- VDD Voltage Range:
2.7 V to 5.5 V
- Quiescent Current:
240 μA (Typ)
- mon Mode Voltage Range: -14 V to +40 V
- Gain:
25 V/V to 100 V/V 3 types (Typ)
- Gain Accuracy:
±1.0 % (Max)
- Operating Temperature Range: -40 °C to +125 °C
Product Name BD14220G-C BD14221G-C BD14222G-C
Gain (Typ) 25 V/V 50 V/V 100 V/V
Package SSOP6
W (Typ) x D (Typ) x H (Max) 2.9 mm x 2.8 mm x 1.25 mm
Applications
- Automotive 12 V Battery
- Tele Equipment
Typical Application Circuit
LOAD
VINP VINM
+-+
Adjust the bypass capacitor value as necessary, according to power supply
VDD noise conditions, etc.
0.1 µF
- OUT
+
Micro...
