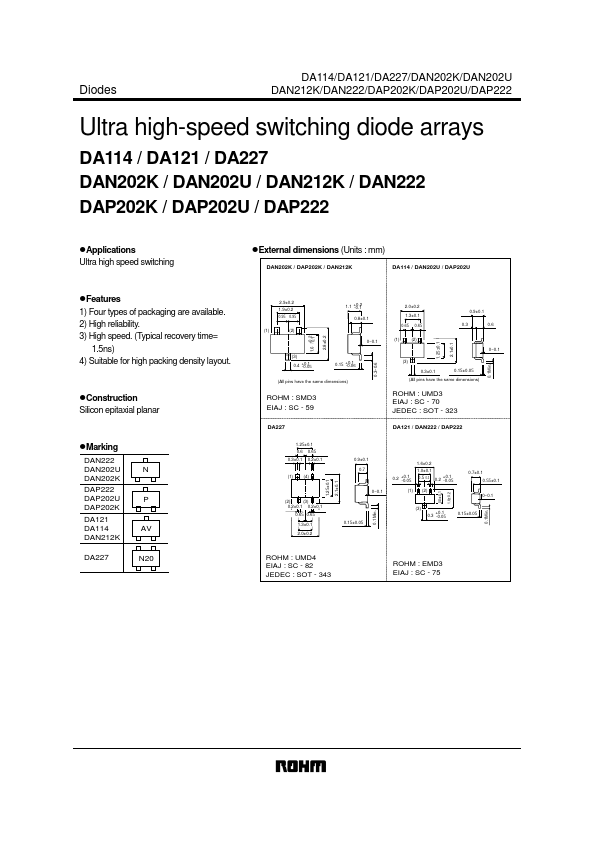

ROHM Semiconductor DAN212K
Ultra high-speed switching diode arrays
| Part No. | DAN212K |
|---|---|
| Datasheet | DAN212K Download |
| Manufacturer |  ROHM Semiconductor |
| Description | Ultra high-speed switching diode arrays |
| Buy | Stock & Price |
APPLICATIONS
Ultra high speed switching !External dimensions (Units : mm) DAN202K / DAP202K / DAN212K DA114 / DAN202U / DAP202U !FEATURES
1) Four types of packaging are available. 2) High reliability. 3) High speed. (Typical recovery time= 1.5ns) 4) Suitable for high packing density layout. !Construction Silicon epitaxial planar !Marking DAN222 DAN202U N DAN202K DAP222 DAP202U P DAP202K DA121 DA114 AV DAN212K DA227 N20 2.9±0.2 1.9±0.2 0.95 0.95 (1) (2) 1.1 +0.2 -0.1 0.8±0.1 0~0.1 2.8±0.2 +0.2 -0.1 1.6 (3) 0.4 +0.1 -0.05 0.15 +0.1 -0.06 (All pins have the same dimensions) ROHM : SMD3 EIAJ : SC - 59 DA227 0.3~0.6 2.0±0.2 1.3±0.1 0.65 0.65 0.9±0.1 0.3 0.6 1.25±0.1 2.1±0.1 0.1Min. (1) (2) (3) 0.3±0.1 0.15±0.05 (All pins have the same dimensions) 0~0.1 ROHM : UMD3 EIAJ : SC - 70 JEDEC : SOT - 323 DA121 / DAN222 / DAP222 1.25±0.1 0.6 0.65 0.3±0.1 0.2±0.1 (1) (4) (2) (3) 0.2±0.1 0.2±0.1 0.65 0.65 1.3±0.1 2.0±0.2 1.25±0.1 2.1±0.1 0.1Min. 0.8±0.1 1.6±0.2 0.1Min. 0.9±0.1 0.7 0~0.1 0.2 +0.1 -0.05...
