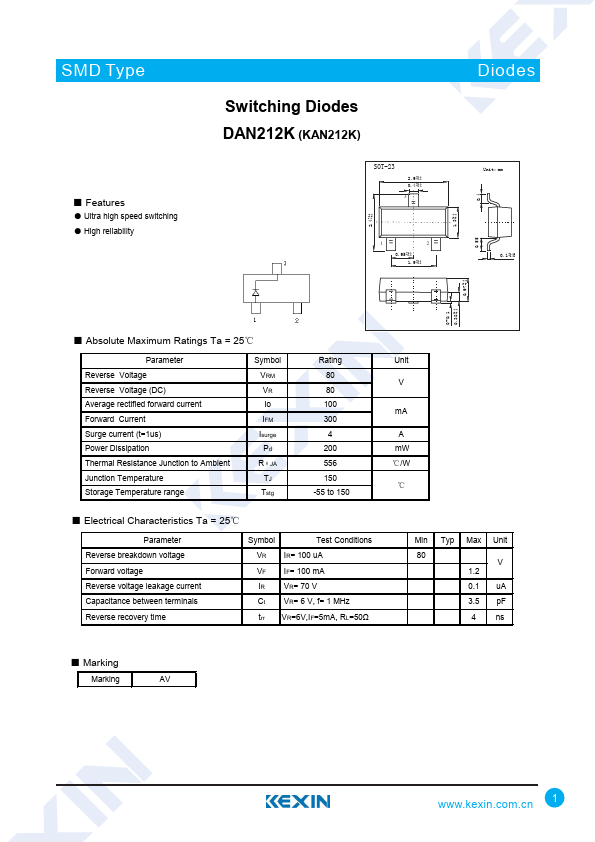

DAN212K
Features
- Ultra high speed switching
- High reliability
Switching Diodes DAN212K (KAN212K)
SOT-23
2.9 +0.1 -0.1
0.4 +0.1 -0.1
+0.1 2.4 -0.1
0.95 +0.1 -0.1 1.9 +0.1 -0.1
+0.1 1.3 -0.1
Diodes
Unit: mm 0.1 +0.05
-0.01
+0.1 0.97 -0.1
0-0.1 +0.1 0.38
-0.1
- Absolute Maximum Ratings Ta = 25℃
Parameter Reverse Voltage Reverse Voltage (DC) Average rectified forward current Forward Current Surge current (t=1us) Power Dissipation Thermal Resistance Junction to Ambient Junction Temperature Storage Temperature range
Symbol VRM VR Io IFM Isurge Pd RθJA TJ Tstg
Rating 80 80 100 300 4 200 556 150
-55 to 150
Unit V m A A m W ℃/W ℃
- Electrical Characteristics Ta = 25℃
Parameter Reverse breakdown voltage Forward voltage Reverse voltage leakage current Capacitance between terminals Reverse recovery time
Symbol
Test Conditions
VR IR= 100 u A
VF IF= 100 m A
VR= 70 V
Ct VR= 6 V, f= 1 MHz trr VR=6V,IF=5m A, RL=50Ω
Min Typ Max Unit 80
V 1.2 0.1 u A 3.5 p F 4 ns
-...
