DTA143ECA - Digital transistors

Product Overview

Rohm

Part number	DTA143ECA
Manufacturer	ROHM
File Size	70.04 KB
Description	Digital transistors
Datasheet	DTA143ECA Datasheet

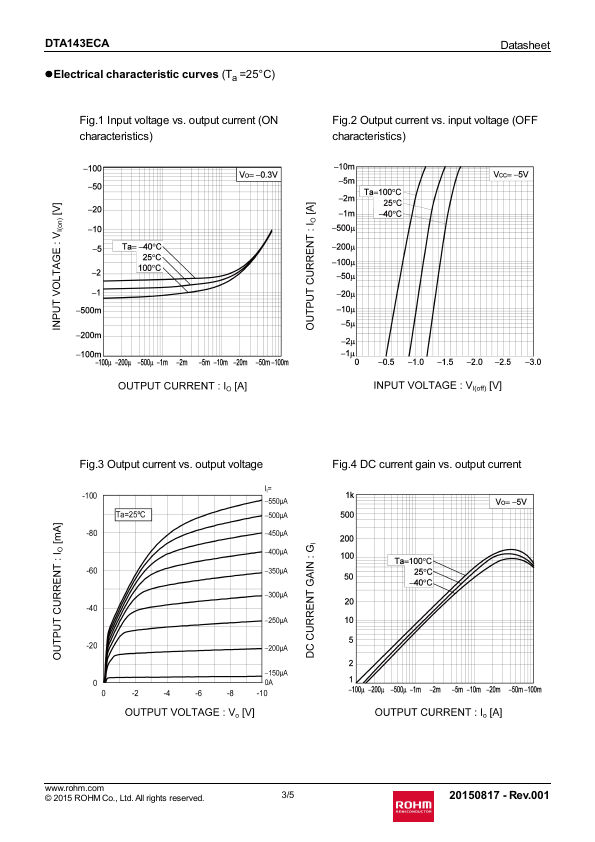

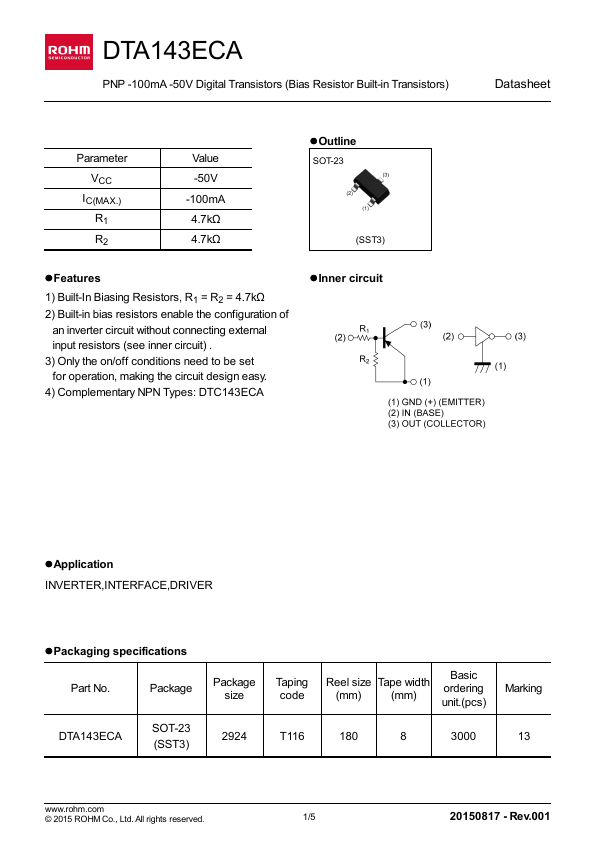

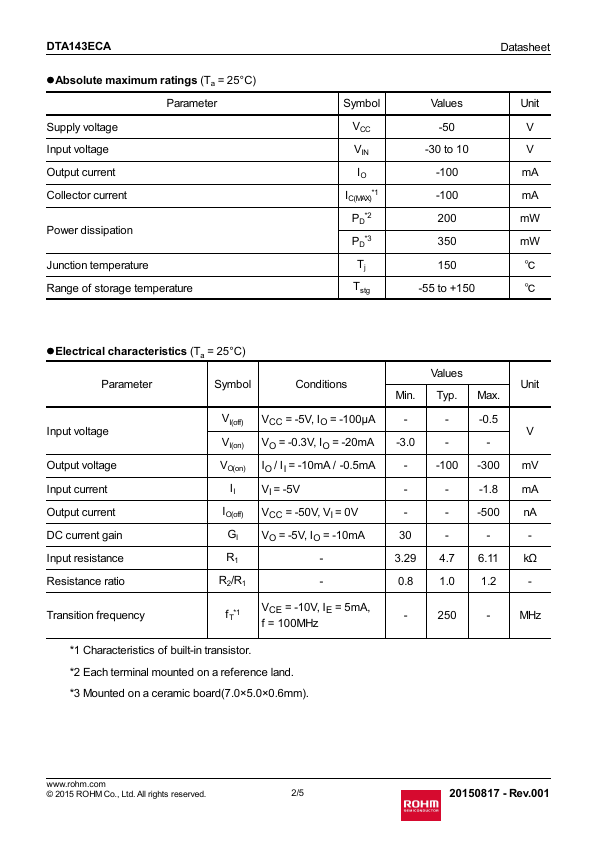

Additional preview pages of the DTA143ECA datasheet.

1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 2) The bias resistors consist of thinfilm resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3) Only the on / off conditions need to be set for operation, making device design easy. FExternal dimensions (Units: mm) FStructure PNP digital transistor (.
