DTA143ECA
DTA143ECA is Digital Transistors manufactured by Yangjie Electronic.
Features
- Epoxy meets UL-94 V-0 flammability rating
- Moisture Sensitivity Level 1
- Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors
- Surface mount package ideally Suited for Automatic Insertion
- PNP
Mechanical Data
- Package: SOT-23
- Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
- Marking: 13

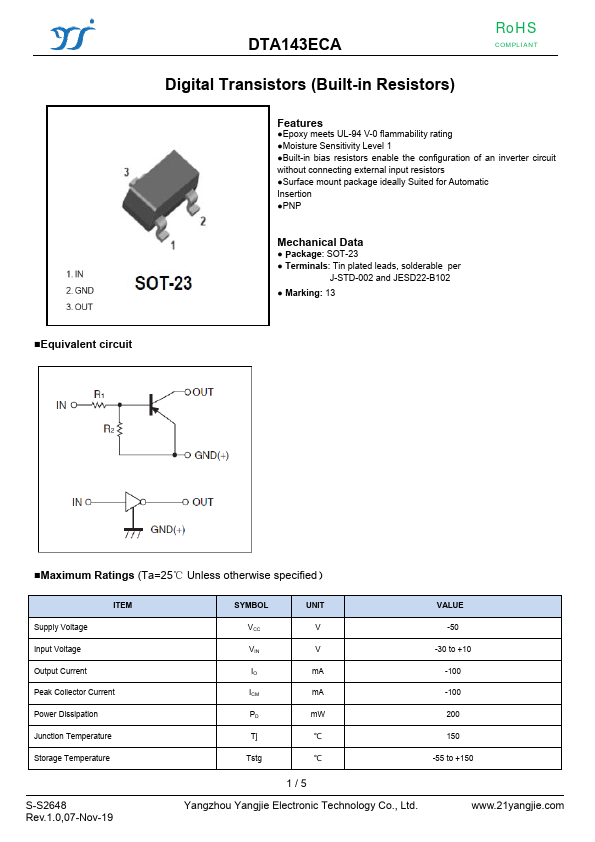

- Equivalent circuit
- Maximum Ratings (Ta=25℃ Unless otherwise specified）
ITEM Supply Voltage Input Voltage Output Current Peak Collector Current Power Dissipation Junction Temperature Storage Temperature
S-S2648 Rev.1.0,07-Nov-19
SYMBOL
UNIT
VALUE
VCC VIN IO ICM PD Tj Tstg
V V m A m A m W ℃ ℃
-50 -30 to +10
-100 -100 200 150 -55 to +150
1/5 Yangzhou Yangjie Electronic Technology Co., Ltd.
.21yangjie.

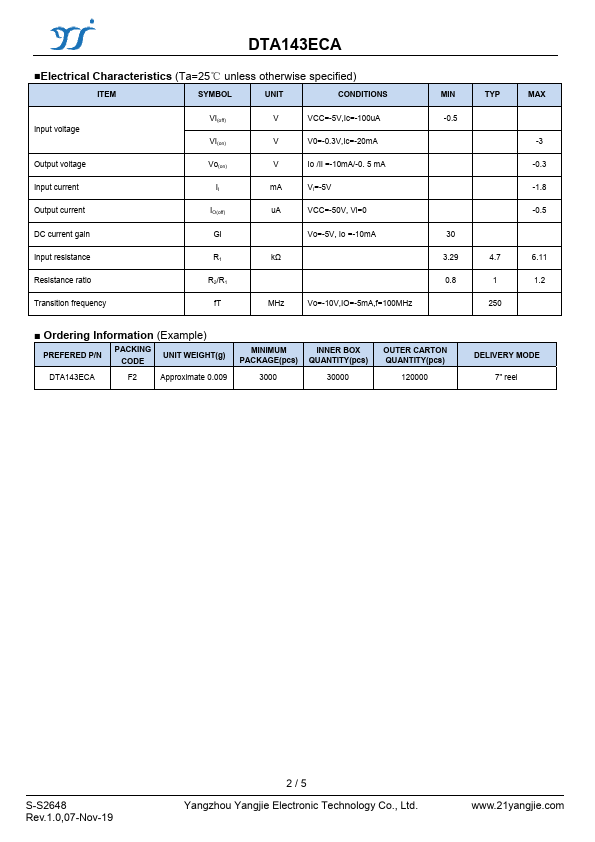

- Electrical Characteristics (Ta=25℃ unless otherwise specified)
ITEM
SYMBOL
UNIT
CONDITIONS
Input voltage
VI(off) VI(on)
VCC=-5V,Ic=-100u A
V0=-0.3V,Ic=-20m A
Output voltage Input current
Vo(on) II
Io /Ii =-10m A/-0. 5 m A m...
