DTC114YEBHZG Datasheet | ROHM

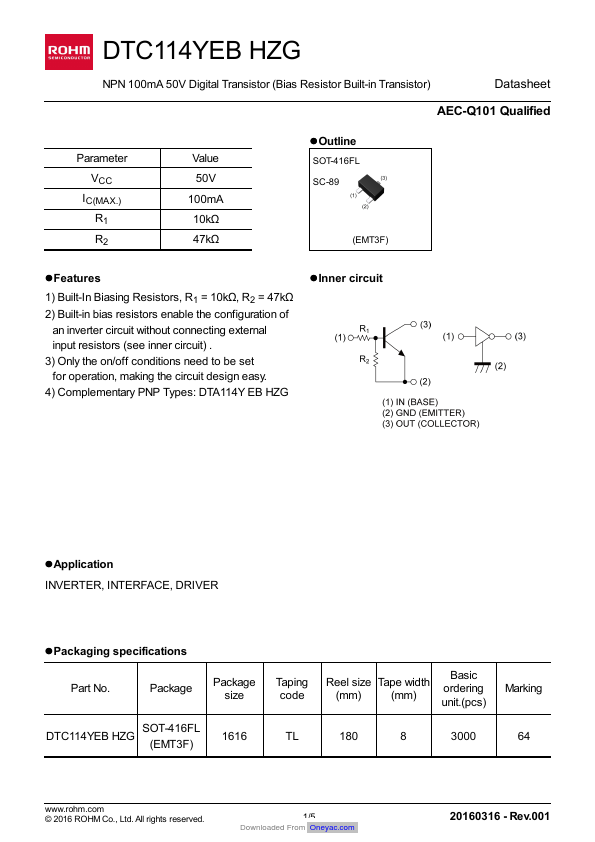

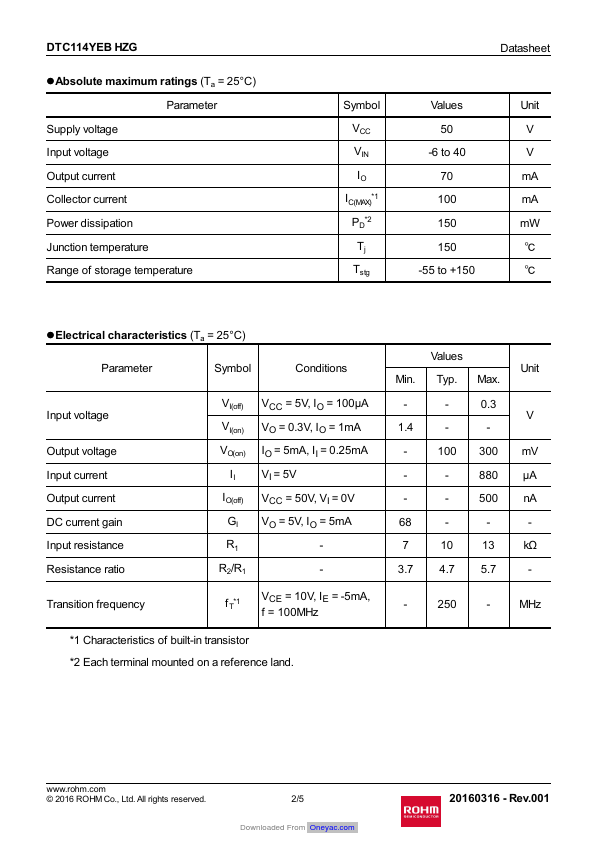

DTC114YEB HZG NPN 100m A 50V Digital Transistor (Bias Resistor Built-in Transistor) AEC-Q101 Qualified Parameter VCC IC(MAX.) R1 R2 Value 50V 100m A 10kΩ 47kΩ l Features 1) Built-In Biasing Resistors, R1 = 10kΩ, R2 = 47kΩ 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) plementary PNP Types: DTA114Y EB HZG l Outline SOT-416FL 　 SC-89 　 　 　 　 　 (EMT3F) 　 　 　 　 　　　　　　　　 l Inner circuit l Application INVERTER, INTERFACE, DRIVER l Packaging specifications Part No. Package Package size 　　　　　　　　　　　　　　　　　　　　　　 Taping code Reel size Tape width (mm) (mm) Basic ordering unit.(pcs) Marking DTC114YEB HZG SOT-416FL 1616 (EMT3F) 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　　 　 　 　 　 　 　 　 　 　 　 .rohm. © 2016 ROHM Co., Ltd. All rights reserved. 1/5 Downloaded From Oneyac. - Rev.001 DTC114YEB HZG 　 l Absolute maximum ratings (Ta = 25°C) Parameter Supply voltage Input voltage Output current Collector current Power dissipation Junction temperature Range of storage...
