FMY1A Datasheet Dual Transistor

Manufacturer: ROHM

Datasheet Details

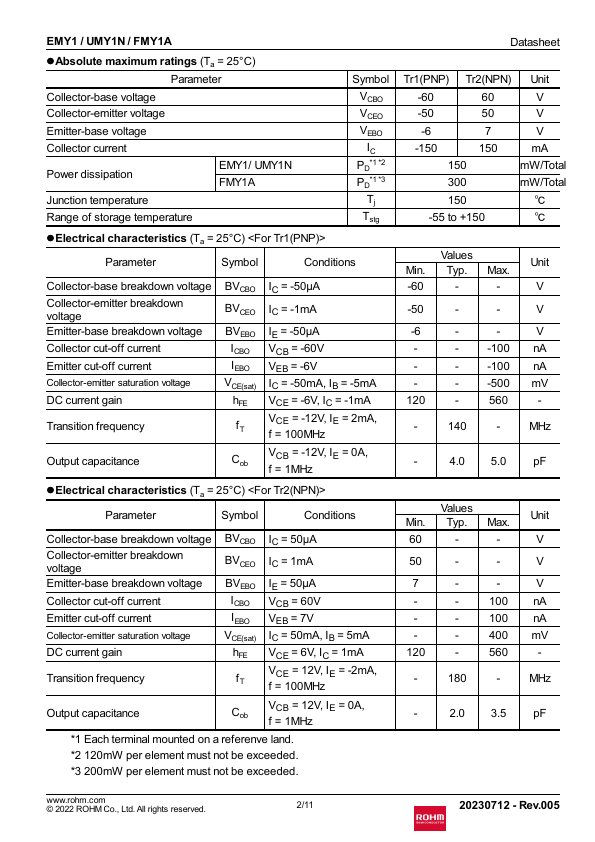

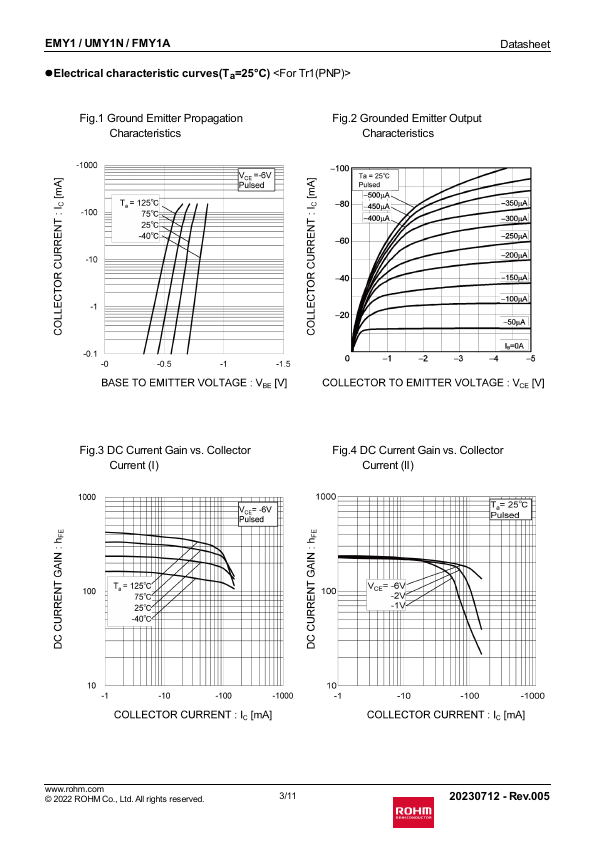

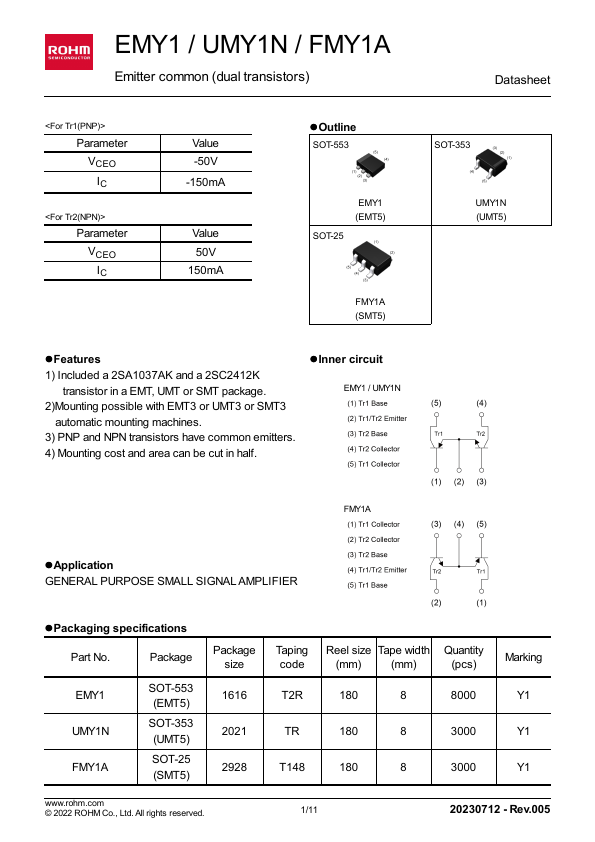

EMY1 / UMY1N / FMY1A Transistors Emitter common (dual transistors) EMY1 / UMY1N / FMY1A !

1) Includes a 2SA1037AK and a 2SC2412K transistor in a EMT or UMT or SMT package. 2) PNP and NPN transistors have common emitters. 3) Mounting cost and area can be cut in half. !External dimensions (Units : mm) EMY1 0.22 (4) (3) (2) (5) 0.13 1.2 1.6 (1) !Structure Epitaxial planar type PNP / NPN silicon transistor Each lead has same dimensions ROHM : EMT5 Abbreviated symbol : Y1 UMY1N (4) (3) (6) EMY1 / UMY1N (3) Tr2 (4) (2) (1) Tr1 (5)/(6) FMY1A 0.15 1.25 2.1 0.7 0.9 1.1 2.9 (3) Tr2.
