MCR03 - (MCR Series) Thick Film Chip Resistors

Product Overview

Rohm

Part number	MCR03
Manufacturer	ROHM
File Size	1.00 MB
Description	(MCR Series) Thick Film Chip Resistors
Datasheet	MCR03 Datasheet
Note	This datasheet PDF includes multiple part numbers: MCR03, MCR004. Please refer to the document for exact specifications by model.

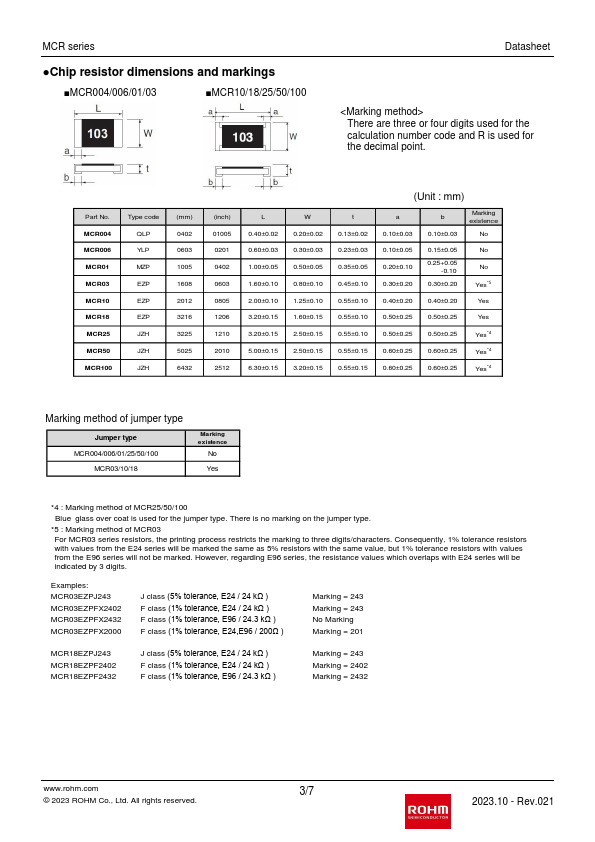

Additional preview pages of the MCR03 datasheet.

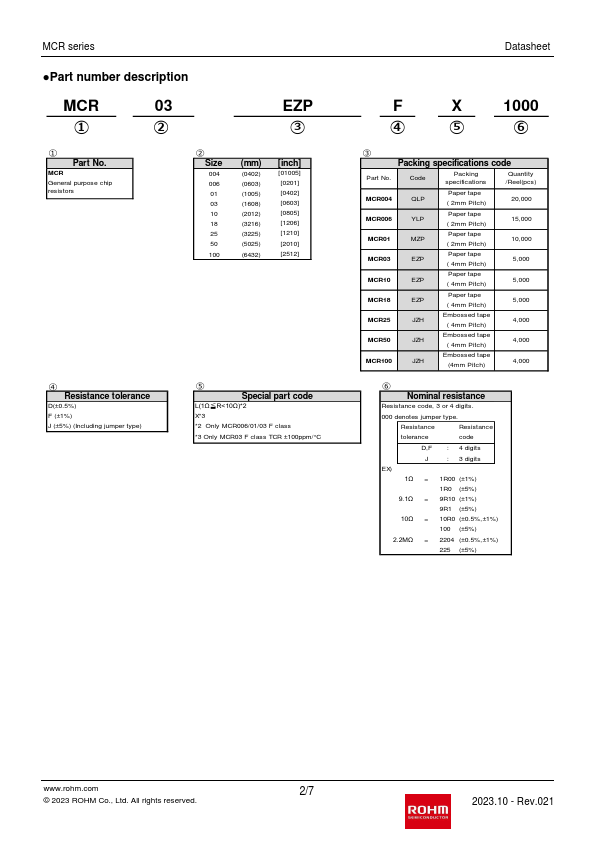

MCR 0 0 4 QL P J 100 Part No.MCR (Micro chip resistors) Size (mm [inch]) 004(0402 [01005]) 006(0603 [0201]) 01(1005 [0402]) 03(1608 [0603])

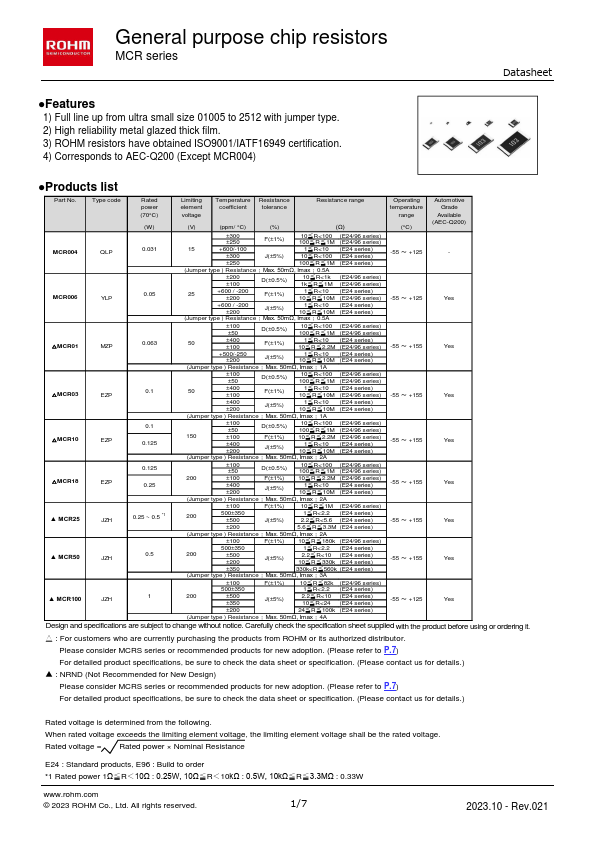

1)Full line up from ultra small size (01005) to 2512 with jumper type. 2)High reliability metal glazed thick film. 3)ROHM resistors have obtained ISO9001/ISO/TS16949 certification. Datasheet Part No. MCR004 MCR006 MCR01 MCR03 MCR10 MCR18 MCR25 MCR50 MCR100 Size (mm) (inch) 0402 01005 0603 0201 1005 0402 1608 0603 2012 0805 3216 1206 3225 1210 5025 2010 6432 2512 Type code QLP YLP MZP EZP EZP EZP JZH JZH JZH Packaging specifications Quantity/ Reel Paper tape(2mmPitch) Paper tape(2mmPitch).
