MCR004 - Thick Film Chip Resistors

General Description

① Part No.

Key Features

  • 1) Full line up from ultra small size 01005 to 2512 with jumper type. 2) High reliability metal glazed thick film. 3) ROHM resistors have obtained ISO9001/IATF16949 certification. 4) Corresponds to AEC-Q200 (Except MCR004).
  • Products list Part No. Type code Rated Limiting Temperature Resistance Resistance range Operating Automotive power element coefficient tolerance temperature Grade (70°C) voltage range Available (AEC-Q200) (W) (V) (ppm/ °C) (%) (Ω) (°C) MCR004 QL.

📥 Download Datasheet

Datasheet Details

Part number MCR004
Manufacturer ROHM
File Size 1.05 MB
Description Thick Film Chip Resistors
Datasheet download datasheet MCR004 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MCR02 Ethernet Based Contactless Card R/W Terminals OTTRON
MCR0201AT High Stability Thin Film Flat Chip Resistors Vishay
MCR05 Ethernet Based Contactless Card R/W Terminals OTTRON
MCR08 SENSITIVE GATE SILICON CONTROLLED RECTIFIER UTC
MCR08B Thyristors Littelfuse

Other Datasheets by ROHM

Part Number Description
MCR004E General purpose chip resistors
MCR006 Thick film chip resistors
MCR01 Thick Film Chip Resistors
MCR03 Thick Film Chip Resistors
MCR10 Thick Film Chip Resistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

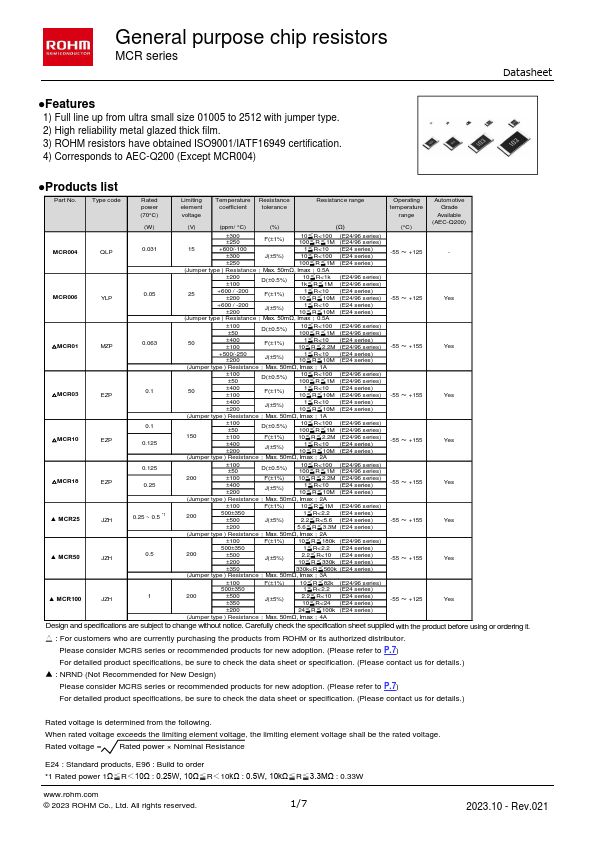

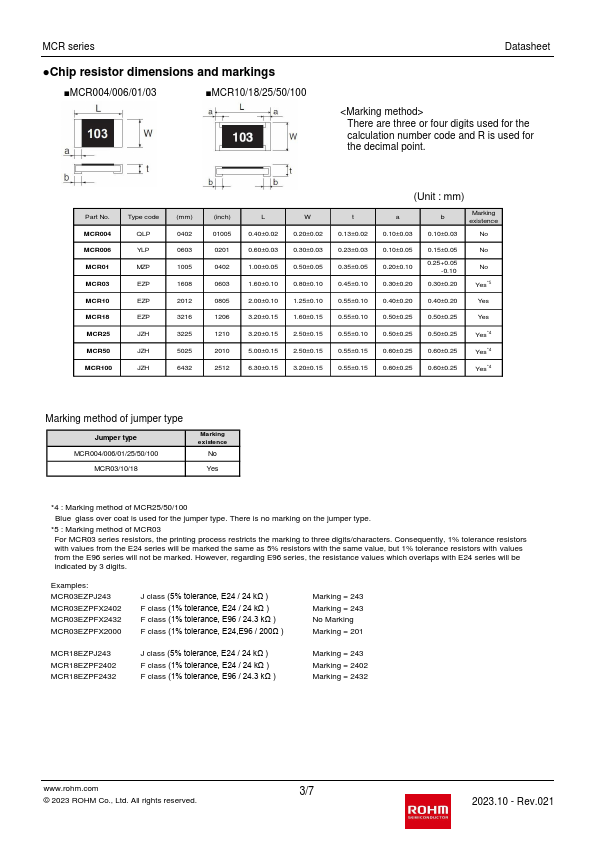

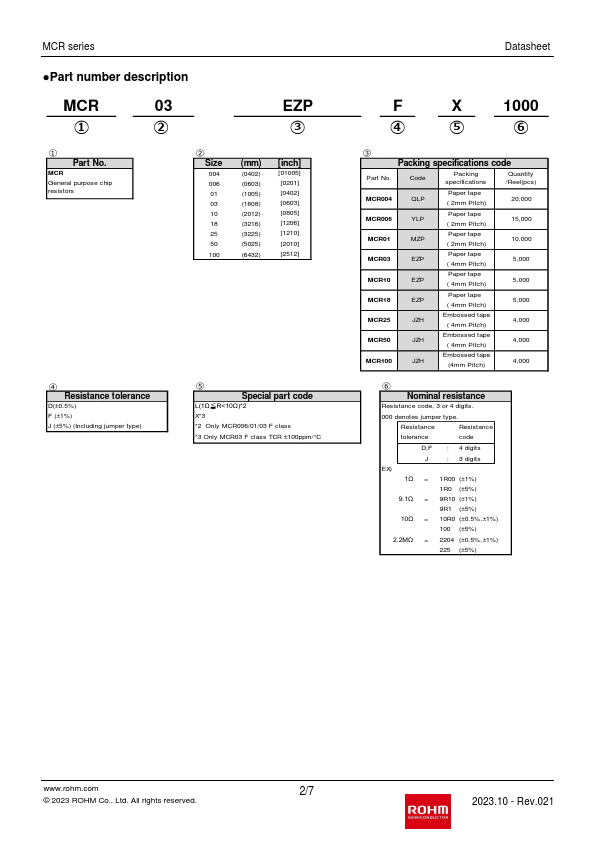

General purpose chip resistors MCR series Datasheet ●Features 1) Full line up from ultra small size 01005 to 2512 with jumper type. 2) High reliability metal glazed thick film. 3) ROHM resistors have obtained ISO9001/IATF16949 certification. 4) Corresponds to AEC-Q200 (Except MCR004) ●Products list Part No. Type code Rated Limiting Temperature Resistance Resistance range Operating Automotive power element coefficient tolerance temperature Grade (70°C) voltage range Available (AEC-Q200) (W) (V) (ppm/ °C) (%) (Ω) (°C) MCR004 QLP 0.031 ±300 ±250 F(±1%) 10≦R<100 (E24/96 series) 100≦R≦1M (E24/96 series) 15 +600/-100 ±300 J(±5%) 1≦R<10 (E24 series) 10≦R<100 (E24 series) -55 ～ +125 - ±250 100≦R≦1M (E24 series) (Jumper type ) Resistance ： Max.
