MCR10 - Thick Film Chip Resistors

Download the MCR10 datasheet PDF. This datasheet also covers the MCR004 variant, as both devices belong to the same thick film chip resistors family and are provided as variant models within a single manufacturer datasheet.

General Description

① Part No.

Key Features

  • 1) Full line up from ultra small size 01005 to 2512 with jumper type. 2) High reliability metal glazed thick film. 3) ROHM resistors have obtained ISO9001/IATF16949 certification. 4) Corresponds to AEC-Q200 (Except MCR004).
  • Products list Part No. Type code Rated Limiting Temperature Resistance Resistance range Operating Automotive power element coefficient tolerance temperature Grade (70°C) voltage range Available (AEC-Q200) (W) (V) (ppm/ °C) (%) (Ω) (°C) MCR004 QL.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MCR004_Rohm.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MCR10
Manufacturer ROHM
File Size 1.05 MB
Description Thick Film Chip Resistors
Datasheet download datasheet MCR10 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MCR100 Silicon Controlled Rectifiers Motorola
MCR100 0.8A SCR Micro Electronics
MCR100 SENSITIVE GATE SILICON CONTROLLED RECTIFIERS REVERSE BLOCKING THYRISTORS Unisonic Technologies
MCR100 Sensitive Gate Silicon Controlled Rectifiers ON Semiconductor
MCR100 Thyristor BLUE ROCKET ELECTRONICS

Other Datasheets by ROHM

Part Number Description
MCR100 Thick Film Chip Resistors
MCR100-J MCR100
MCR100L General Purpose Chip Resistors
MCR10L General Purpose Chip Resistors
MCR18 Thick Film Chip Resistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

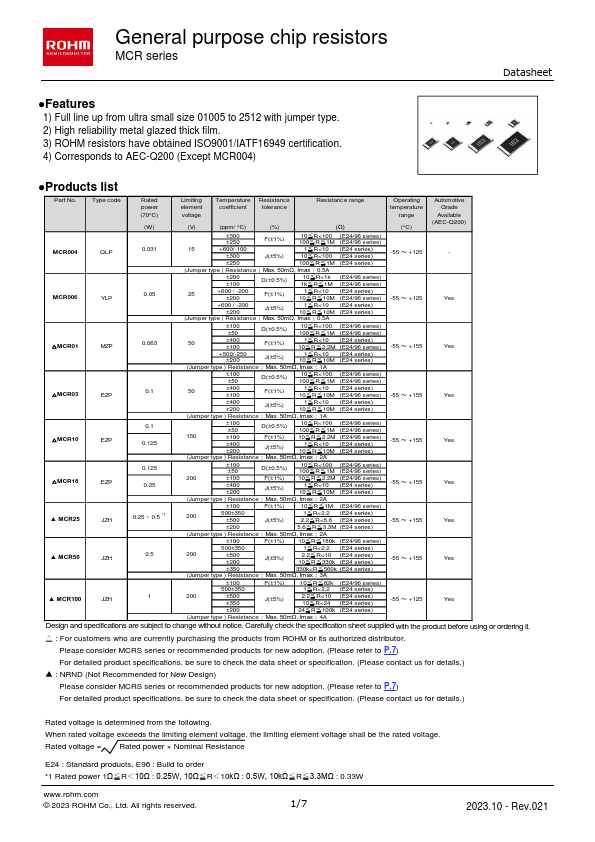

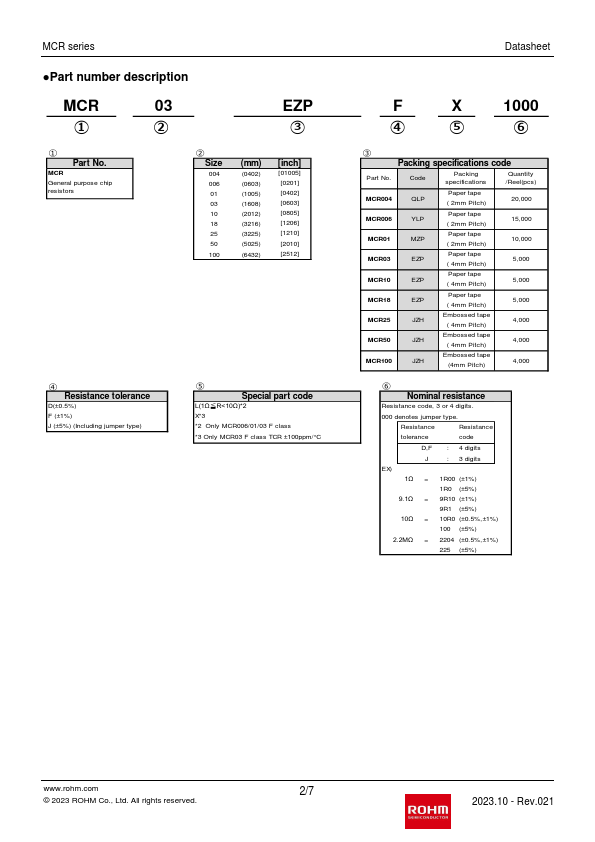

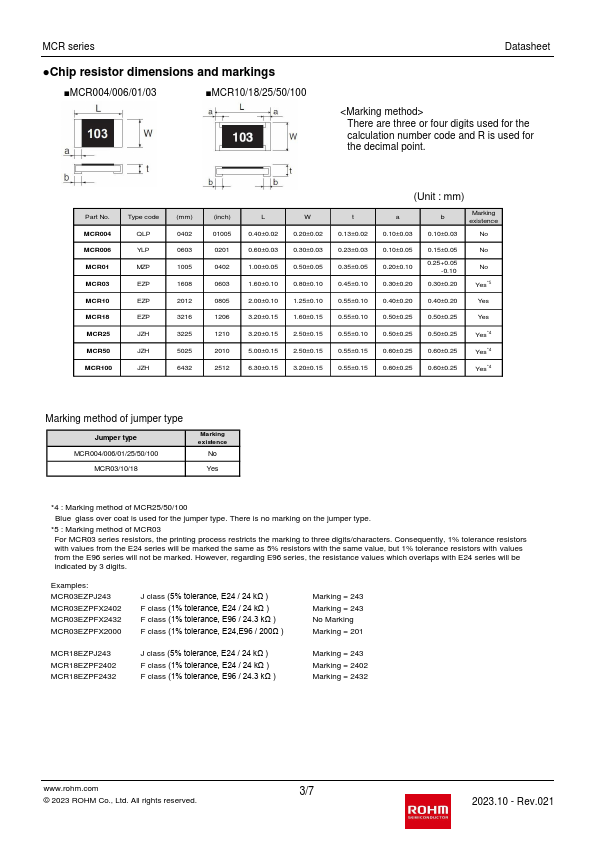

General purpose chip resistors MCR series Datasheet ●Features 1) Full line up from ultra small size 01005 to 2512 with jumper type. 2) High reliability metal glazed thick film. 3) ROHM resistors have obtained ISO9001/IATF16949 certification. 4) Corresponds to AEC-Q200 (Except MCR004) ●Products list Part No. Type code Rated Limiting Temperature Resistance Resistance range Operating Automotive power element coefficient tolerance temperature Grade (70°C) voltage range Available (AEC-Q200) (W) (V) (ppm/ °C) (%) (Ω) (°C) MCR004 QLP 0.031 ±300 ±250 F(±1%) 10≦R<100 (E24/96 series) 100≦R≦1M (E24/96 series) 15 +600/-100 ±300 J(±5%) 1≦R<10 (E24 series) 10≦R<100 (E24 series) -55 ～ +125 - ±250 100≦R≦1M (E24 series) (Jumper type ) Resistance ： Max.
