MCR100 - (MCR Series) Thick Film Chip Resistors

Product Overview

📥 Download Datasheet

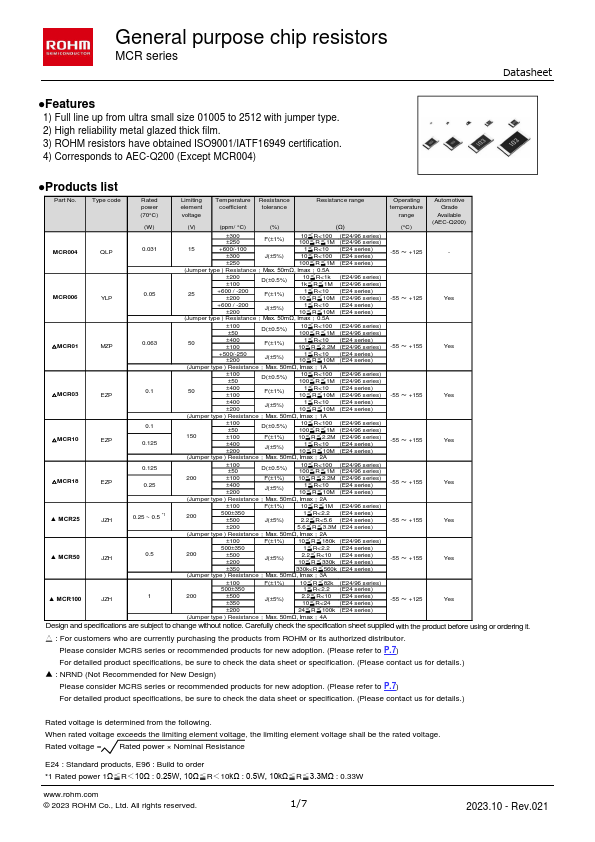

Datasheet preview – MCR100

Datasheet Details

Part number MCR100
Manufacturer ROHM
File Size 1.00 MB
Description (MCR Series) Thick Film Chip Resistors
Datasheet download datasheet MCR100 Datasheet
Note This datasheet PDF includes multiple part numbers: MCR100, MCR004.
Please refer to the document for exact specifications by model.

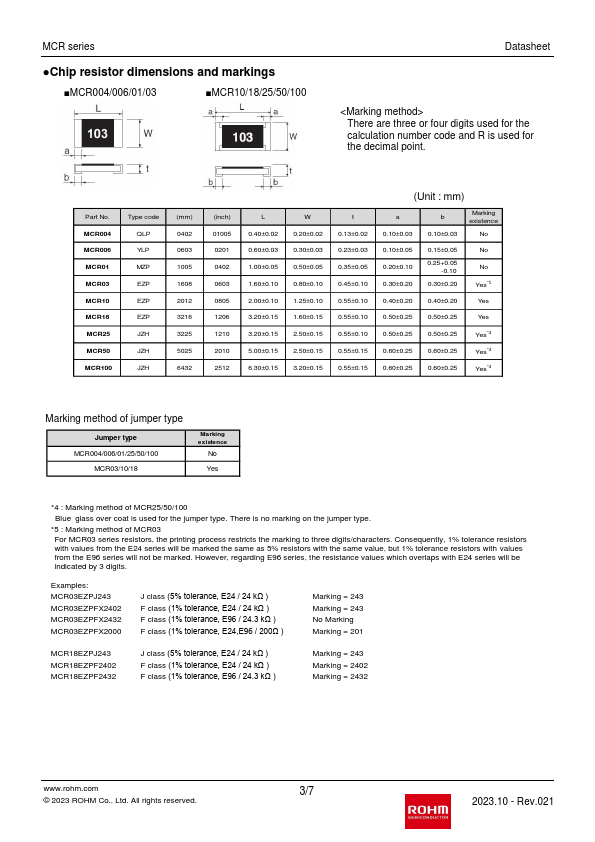

Additional preview pages of the MCR100 datasheet.

Product details

Description

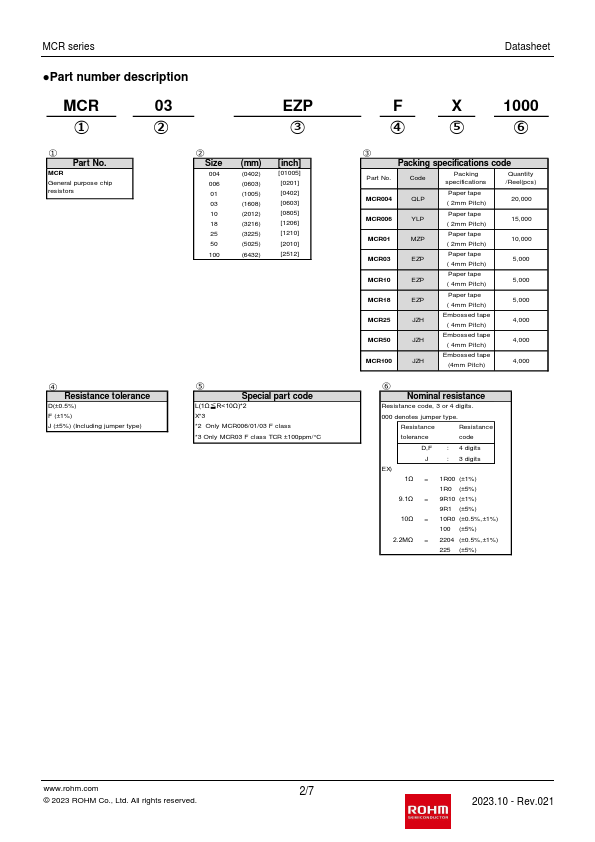

MCR 0 0 4 QL P J 100 Part No.MCR (Micro chip resistors) Size (mm [inch]) 004(0402 [01005]) 006(0603 [0201]) 01(1005 [0402]) 03(1608 [0603]) 10(2012 [0805]) 18(3216 [1206]) 25(3225 [1210]) 50(5025 [2010]) 100(6432 [2512]) Type code Resistance tolerance D (±0.5%) F (±1%) FX (±1%) Only MCR03EZP J (±5%) (Including jumper type) Nominal resistance Resistance code, 3 or 4 digits.000 denotes jumper type.Resistance Resistance tolerance code D,F ： 4 digits J ： 3 digits EX.) 1Ω = 1R

Features
