MCR100L - General Purpose Chip Resistors

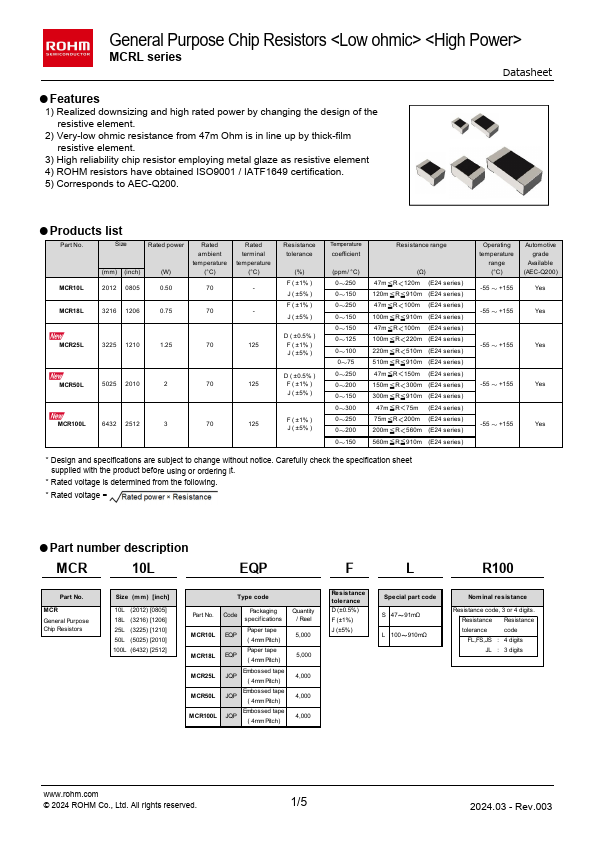

This page provides the datasheet information for the MCR100L, a member of the MCR10L General Purpose Chip Resistors family.

Datasheet Summary

Description

Part No.

Part No.

Features

  • 1) Realized downsizing and high rated power by changing the design of the resistive element. 2) Very-low ohmic resistance from 47m Ohm is in line up by thick-film resistive element. 3) High reliability chip resistor employing metal glaze as resistive element 4) ROHM resistors have obtained ISO9001 / IATF1649 certification. 5) Corresponds to AEC-Q200.

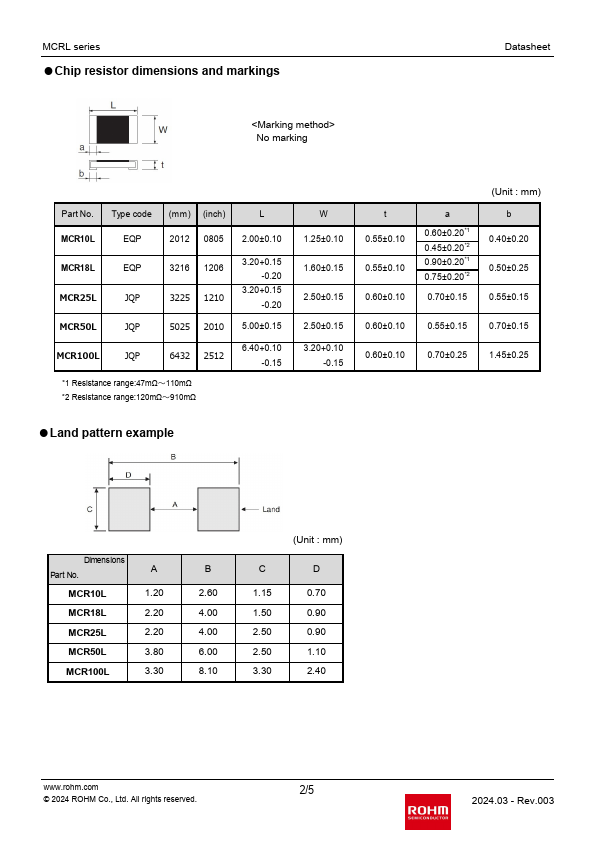

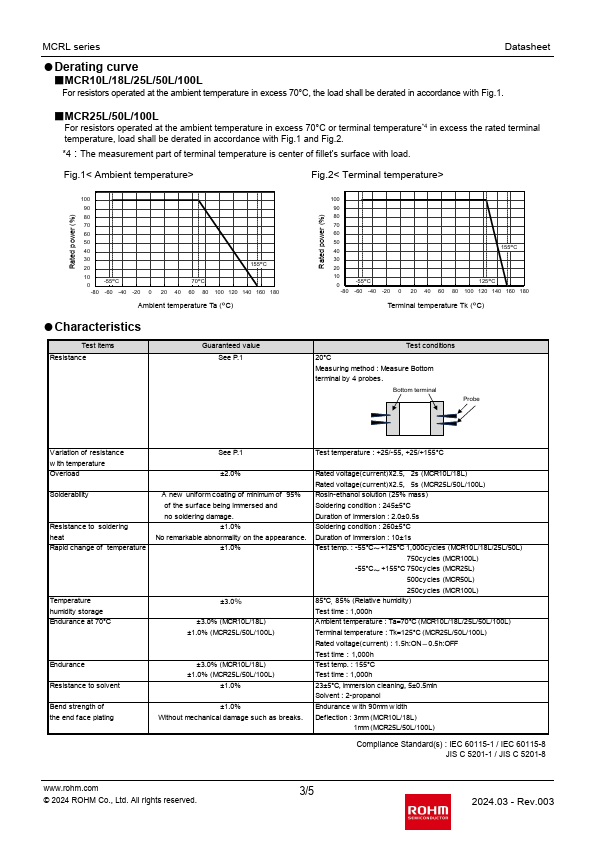

  • Products list Part No. Size Rated power (mm) (inch) (W) Rated ambient tem perature (°C) Rated term inal tem perature (°C) MCR10L 20.
