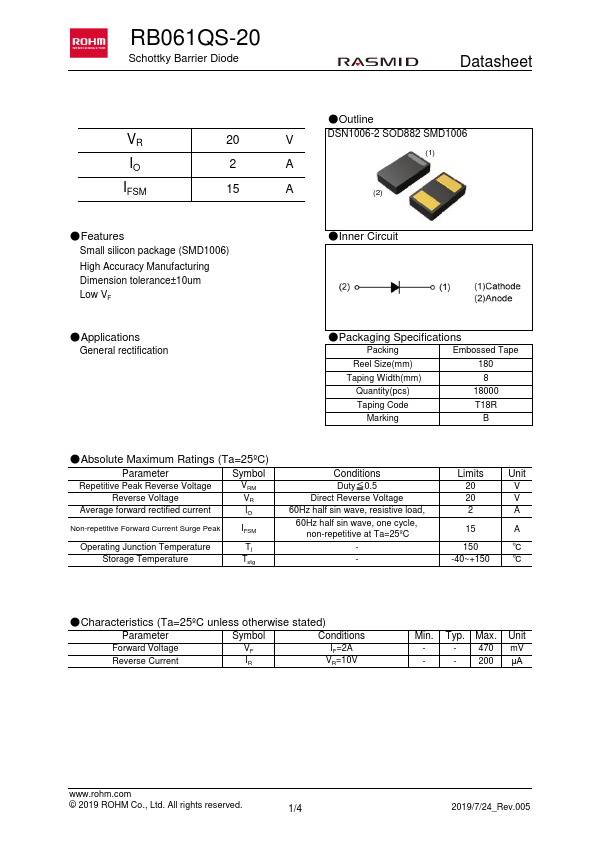

RB061QS-20
RB061QS-20 is Schottky Barrier Diode manufactured by ROHM.
Features
Small silicon package (SMD1006) High Accuracy Manufacturing Dimension tolerance±10um Low VF
- Inner Circuit
- Applications
General rectification
- Packaging Specifications
Packing
Embossed Tape
Reel Size(mm)
Taping Width(mm)
Quantity(pcs)
Taping Code
T18R
Marking
- Absolute Maximum Ratings (Ta=25ºC)
Parameter
Symbol
Repetitive Peak Reverse Voltage
Reverse Voltage
Average forward rectified current
Non-repetitive Forward Current Surge Peak
IFSM
Operating Junction Temperature
Tj
Storage Temperature
Tstg
Conditions Duty≦0.5 Direct Reverse Voltage 60Hz half sin wave, resistive load, 60Hz half sin wave, one cycle, non-repetitive at Ta=25ºC
- Limits Unit
℃
-40~+150
℃
- Characteristics (Ta=25ºC unless otherwise...
