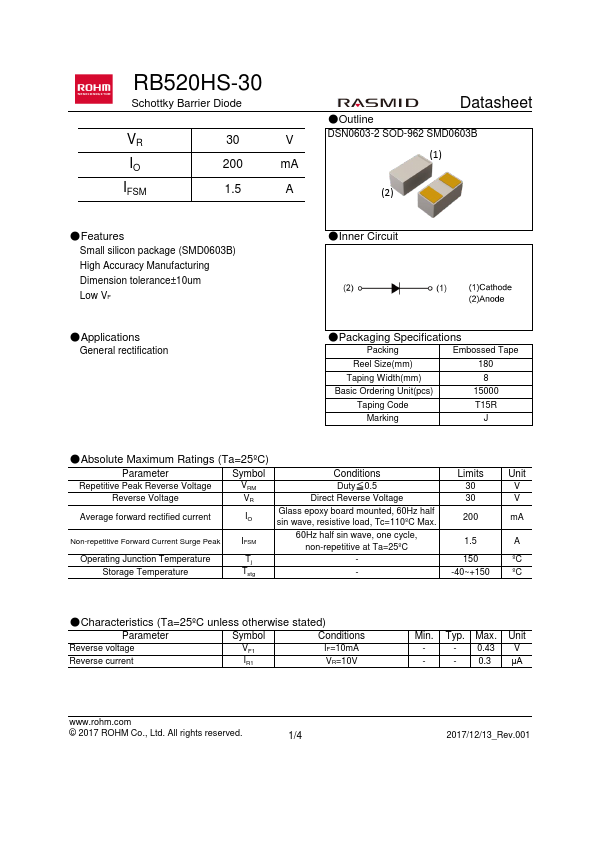

RB520HS-30
RB520HS-30 is Schottky Barrier Diode manufactured by ROHM.
Features
Small silicon package (SMD0603B) High Accuracy Manufacturing Dimension tolerance±10um Low VF
- Inner Circuit
- Applications
General rectification
- Packaging Specifications
Packing
Embossed Tape
Reel Size(mm)
Taping Width(mm)
Basic Ordering Unit(pcs)
Taping Code
T15R
Marking
- Absolute Maximum Ratings (Ta=25ºC)
Parameter
Symbol
Conditions
Limits Unit
Repetitive Peak Reverse Voltage
Duty≦0.5
Reverse Voltage
Direct Reverse Voltage
Average forward rectified current
Glass epoxy board mounted, 60Hz half sin wave, resistive load, Tc=110ºC Max.
200 m A
Non-repetitive Forward Current Surge Peak
IFSM
60Hz half sin wave, one cycle, non-repetitive at Ta=25ºC
Operating Junction...
