RR264MM-400 - Rectifying Diode

Key Features

  • Small power mold type (PMDU) 2) High reliability 0.9±0.1 0.8±0.1 ROHM : PMDU JEDEC : SOD-123FL : Manufacture Date.
  • Taping specifications (Unit : mm) PMDU.
  • Structure cathode anode.
  • Construction Silicon diffused junction type 4.0±0.1 2.0±0.05 φ11..5555±00.0.055 1.75±0.1 0.25±0.05 8.0±0.2 3.3.77110±.0.018 3.5±0.05 1.81±0.1 4.0±0.1 φ1.0± 00.1.1 11.6.5MMAAXX.
  • Absolute maximum ratings (Ta= 25°C) Parameter Symbol Conditions Limits Unit Repetitive peak revers.

📥 Download Datasheet

Datasheet Details

Part number RR264MM-400
Manufacturer ROHM
File Size 1.13 MB
Description Rectifying Diode
Datasheet download datasheet RR264MM-400 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
RR2632 Metal thin film chip resistors Susumu

Other Datasheets by ROHM

Part Number Description
RR264MM-400TF Rectifying Diode
RR264M-400 Rectifying diode
RR264M-400TF Rectifying Diode
RR255M-400 Rectifier diode
RR274EA-400 Rectifier diodes

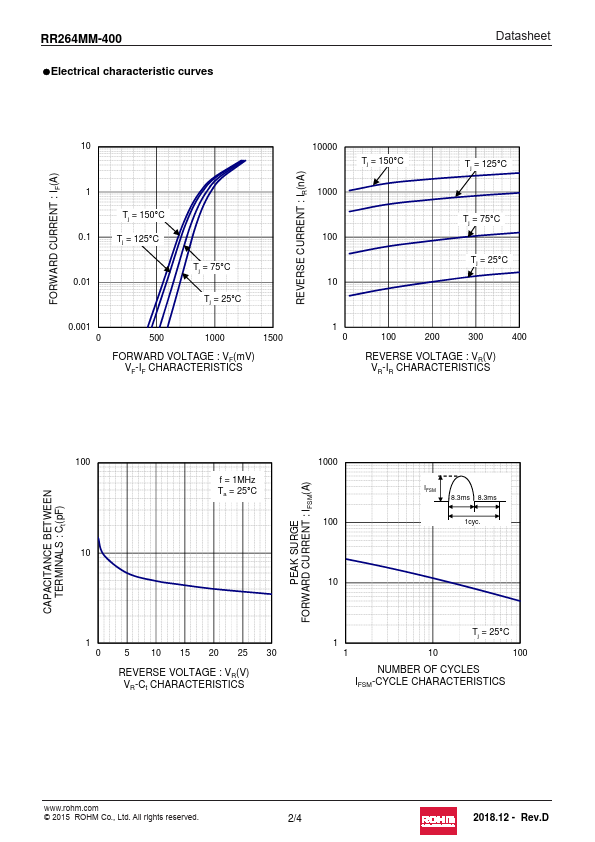

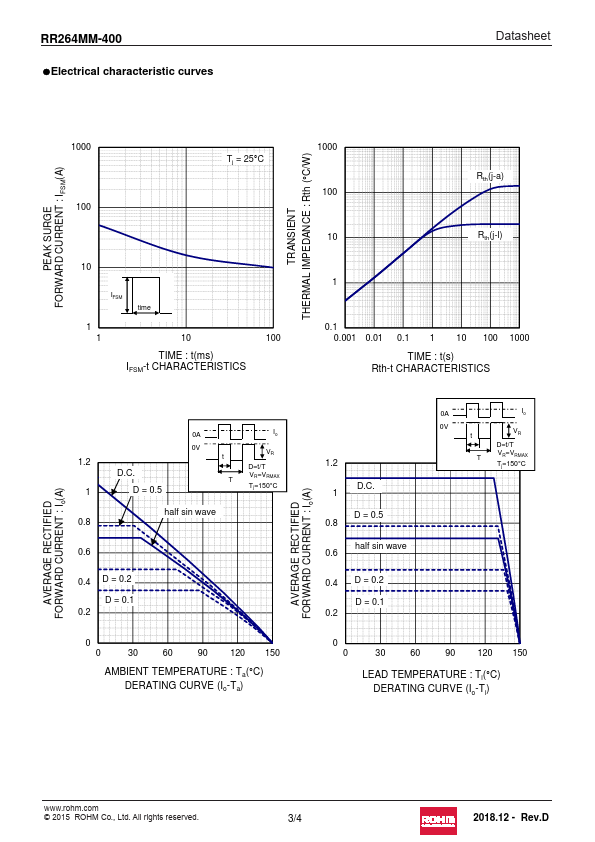

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

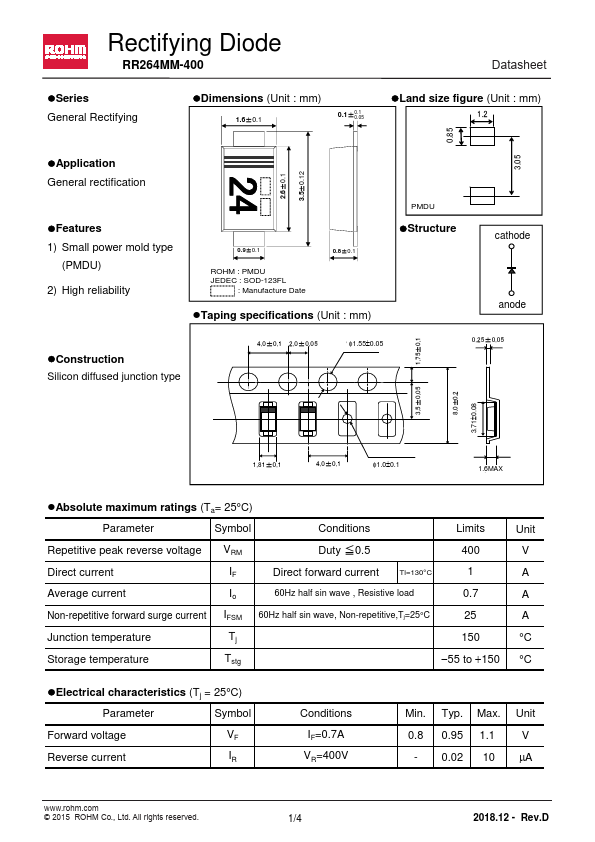

Rectifying Diode RR264MM-400 Series General Rectifying Dimensions (Unit : mm) 1.6±0.1 0.1±00..015 Datasheet Land size figure (Unit : mm) 1.2 2.6±0.1 3.5±0.12 0.85 3.05 Application General rectification Features 1) Small power mold type (PMDU) 2) High reliability 0.9±0.1 0.8±0.1 ROHM : PMDU JEDEC : SOD-123FL : Manufacture Date Taping specifications (Unit : mm) PMDU Structure cathode anode Construction Silicon diffused junction type 4.0±0.1 2.0±0.05 φ11..5555±00.0.055 1.75±0.1 0.25±0.05 8.0±0.2 3.3.77110±.0.018 3.5±0.05 1.81±0.1 4.0±0.1 φ1.0± 00.1.1 11.6.5MMAAXX Absolute maximum ratings (Ta= 25°C) Parameter Symbol Conditions Limits Unit Repetitive peak reverse voltage VRM Duty ≦0.
