RR264MM-400TF - Rectifying Diode

Key Features

  • wer mold type (PMDU) 2) High reliability 0.9±0.1 ROHM : PMDU JEDEC :SOD-123 0.8±0.1 1 Manufacture Date.
  • Taping specifications (Unit : mm) PMDU.
  • Structure cathode anode.
  • Construction Silicon diffused junction type 4.0±0.1 2.0±0.05 φ11..5555±00.0.055 0.25±0.05 1.75±0.1 8.0±0.2 3.71±0.1 3.5±0.05 1.81±0.1 4.0±0.1 φ11..00±00.1.1 1.5MAX.
  • Absolute maximum ratings (Ta= 25°C) Parameter Symbol Conditions Limits Repetitive peak reverse voltage VRM Duty ≦0.5 400.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
RR2632 Metal thin film chip resistors Susumu

Other Datasheets by ROHM

Part Number Description
RR264MM-400 Rectifying Diode
RR264M-400 Rectifying diode
RR264M-400TF Rectifying Diode
RR255M-400 Rectifier diode
RR274EA-400 Rectifier diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

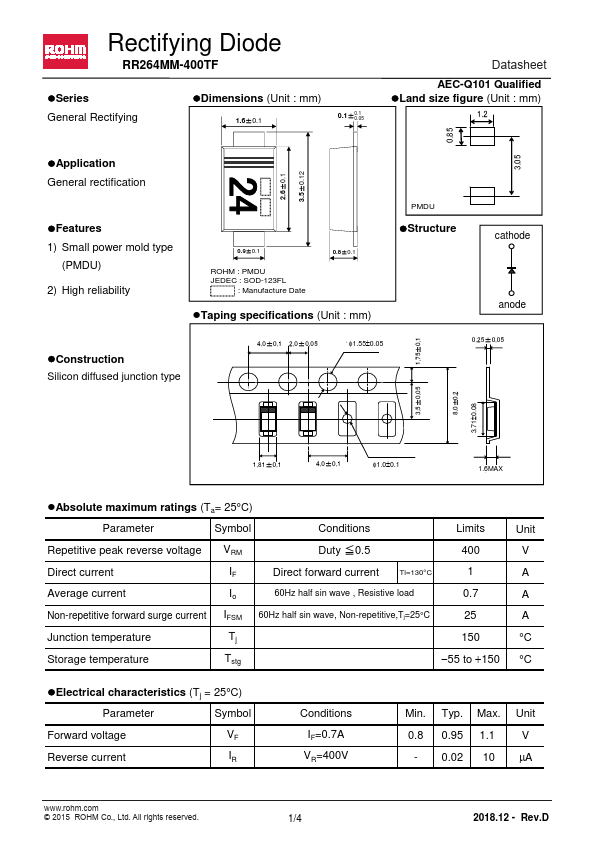

Rectifying Diode RR264MM-400TF Series General Rectifying Dimensions (Unit : mm) 1.6±0.1 0.1±0.1 　　　 0.05 Datasheet AEC-Q101 Qualified Land size figure (Unit : mm) 1.2 2.6±0.1 3.5±00..212 0.85 3.05 Application General rectification 1① Features 1) Small power mold type (PMDU) 2) High reliability 0.9±0.1 ROHM : PMDU JEDEC :SOD-123 0.8±0.1 1 Manufacture Date Taping specifications (Unit : mm) PMDU Structure cathode anode Construction Silicon diffused junction type 4.0±0.1 2.0±0.05 φ11..5555±00.0.055 0.25±0.05 1.75±0.1 8.0±0.2 3.71±0.1 3.5±0.05 1.81±0.1 4.0±0.1 φ11..00±00.1.1 1.5MAX Absolute maximum ratings (Ta= 25°C) Parameter Symbol Conditions Limits Repetitive peak reverse voltage VRM Duty ≦0.
