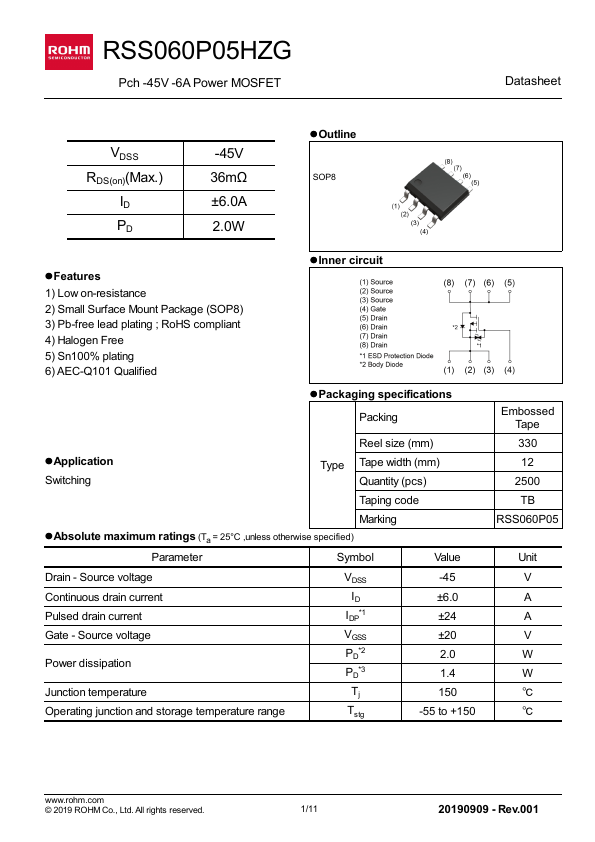

RSS060P05HZG
RSS060P05HZG is Pch -45V -6A Power MOSFET manufactured by ROHM.
Pch -45V -6A Power MOSFET
Datasheet l Outline
VDSS
-45V
RDS(on)(Max.)
36mΩ
SOP8
±6.0A
2.0W
l Features
1) Low on-resistance 2) Small Surface Mount Package (SOP8) 3) Pb-free lead plating ; Ro HS pliant 4) Halogen Free 5) Sn100% plating 6) AEC-Q101 Qualified l Inner circuit l Packaging specifications Packing
Embossed Tape
Reel size (mm)
330 l Application Switching
Type Tape width (mm) Quantity (pcs)
12 2500
Taping code
Marking l Absolute maximum ratings (Ta = 25°C ,unless otherwise specified)
RSS060P05
Parameter
Symbol
Value
Unit
Drain
- Source voltage
VDSS
-45
Continuous drain current
±6.0
Pulsed drain current
IDP-...
