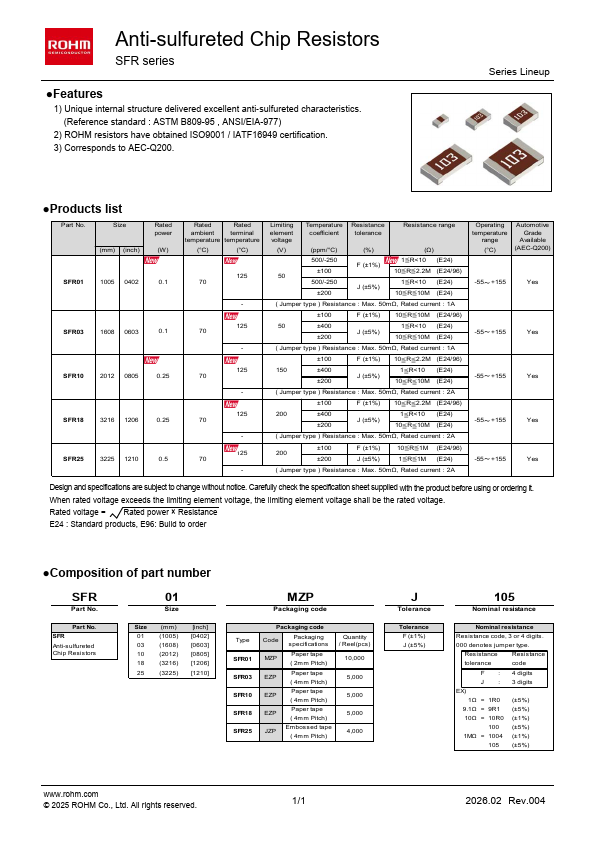

SFR01
SFR01 is Anti-sulfureted Chip Resistors manufactured by ROHM.
Features
1) Unique internal structure delivered excellent anti‑sulfureted characteristics. (Reference standard : ASTM B809-95 , ANSI/EIA-977)
2) ROHM resistors have obtained ISO9001 / IATF16949 certification. 3) Corresponds to AEC-Q200.
Series Lineup
- Products list
Part No.
Size
(mm) (inch)
1005 0402
SFR03
1608 0603
SFR10
2012 0805
SFR18
3216 1206
SFR25
3225 1210
Rated power
(W) 0.1
0.25 0.5
Rated
Rated ambient terminal temperature temperature
(°C)
(°C)
125 70
- 125 70
- 125 70
- 125 70
125 70
- Limiting element voltage
(V)
Temperature Resistance coefficient tolerance
(ppm/°C)
(%)
Resistance range (Ω)
500/-250
1≦R<10 (E24)
F...
