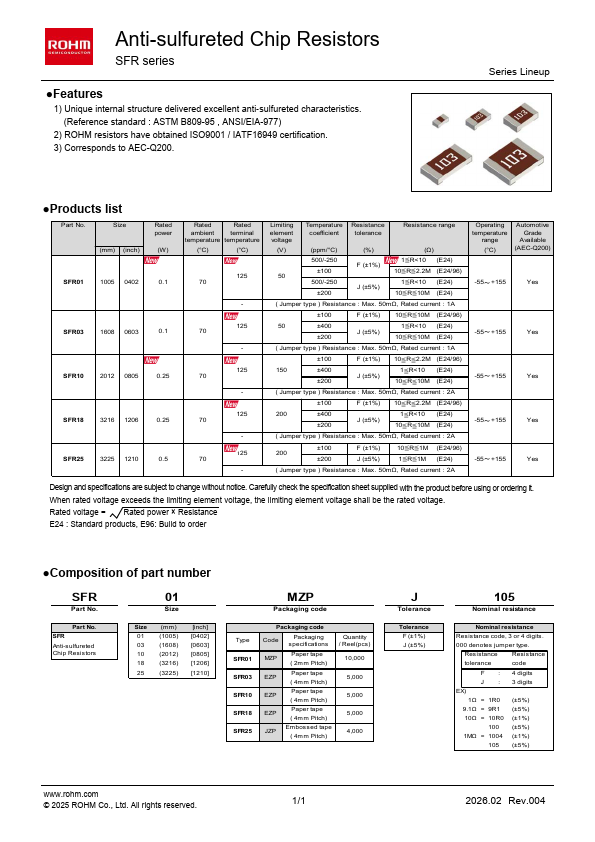

ROHM Semiconductor SFR03
Anti-sulfureted Chip Resistors
| Part No. | SFR03 |
|---|---|
| Datasheet | SFR03 Download |
| Manufacturer |  ROHM Semiconductor |
| Description | Anti-sulfureted Chip Resistors |
| Buy | Stock & Price |
FEATURES
1) Unique internal structure delivered excellent anti‑sulfureted characteristics. (Reference standard : ASTM B809-95 , ANSI/EIA-977) 2) ROHM resistors have obtained ISO9001 / IATF16949 certification. 3) Corresponds to AEC-Q200. Series Lineup●Products list Part No. Size (mm) (inch) SFR01 1005 0402 SFR03 1608 0603 SFR10 2012 0805 SFR18 3216 1206 SFR25 3225 1210 Rated power (W) 0.1 0.1 0.25 0.25 0.5 Rated Rated ambient terminal temperature temperature (°C) (°C) 125 70 - 125 70 - 125 70 - 125 70 125 70 - Limiting element voltage (V) Temperature Resistance coefficient tolerance (ppm/°C) (%) Resistance range (Ω) 500/-250 1≦R<10 (E24) F (±1%) ±100 10≦R≦2.2M (E24/96) 50 500/-250 1≦R<10 (E24) J (±5%) ±200 10≦R≦10M (E24) ( Jumper type ) Resistance : Max. 50mΩ, Rated current : 1A ±100 F (±1%) 10≦R≦10M (E24/96) 50 ±400 1≦R<10 (E24) J (±5%) ±200 10≦R≦10M (E24) ( Jumper type ) Resistance : Max. 50mΩ, Rated current : 1A ±100 F (±1%) 10≦R≦2.2M (E24/96) 150 ±400 1≦R<10 (E24) J (±5%) ±200 10≦R≦10M (E24) ( Jumper type ) Resistance : Max.
