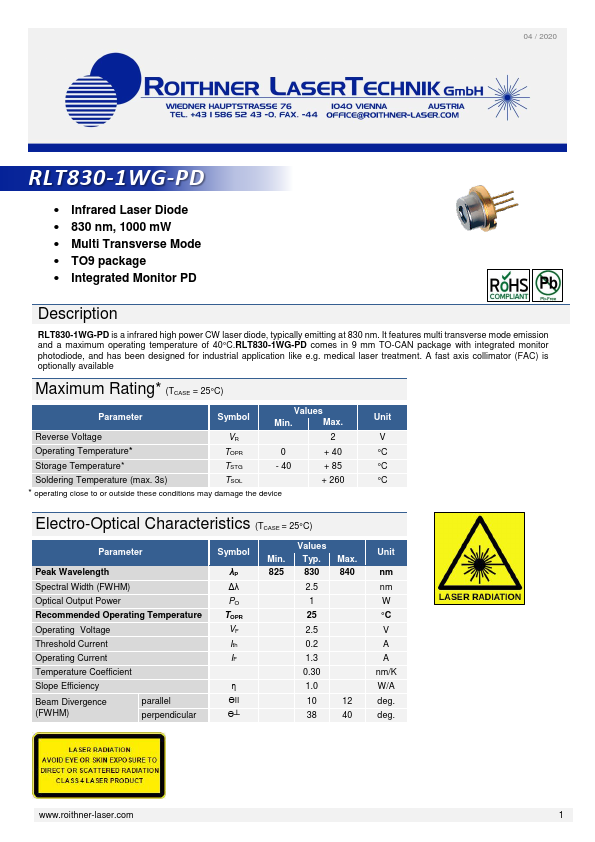

RLT830-1WG-PD
RLT830-1WG-PD is manufactured by Roithner.
04 / 2020
- Infrared Laser Diode
- 830 nm, 1000 mW
- Multi Transverse Mode
- TO9 package
- Integrated Monitor PD
Description
RLT830-1WG-PD is a infrared high power CW laser diode, typically emitting at 830 nm. It Features multi transverse mode emission and a maximum operating temperature of 40°C.RLT830-1WG-PD es in 9 mm TO-CAN package with integrated monitor photodiode, and has been designed for industrial application like e.g. medical laser treatment. A fast axis collimator (FAC) is optionally available
Maximum Rating- (TCASE = 25°C)
Parameter
Symbol
Values
Min.
Max.
Reverse Voltage
Operating Temperature-
TOPR
+ 40
Storage Temperature-
TSTG
-...
