MS1242 - 24bit High Precision Low Power Dissipation ADC

Description

The MS1242/MS1243 is high-precision, wide dynamic range, delta-sigma, analog-to-digital converter with 24-bit no missing codes and 21 bits effective resolution, operating from 2.7V to 5.25V power supply.

Features

  • 24 Bits No Missing Codes, 21 Bits Effective Resolution.
  • Integrated 50Hz and 60Hz Rejection Filters.
  • INL: Less than 0.0015%.
  • Programmable Gains from 1 to 128.
  • Single-cycle Setup Time.
  • Programmable Data Output Rate.
  • External Reference Voltage : 0.1V to 5V.
  • Compatible with SPI.
  • Low Power Consumption.
  • Four Input Channels (MS1242).
  • Eight Input Channels(MS1243).

📥 Download Datasheet

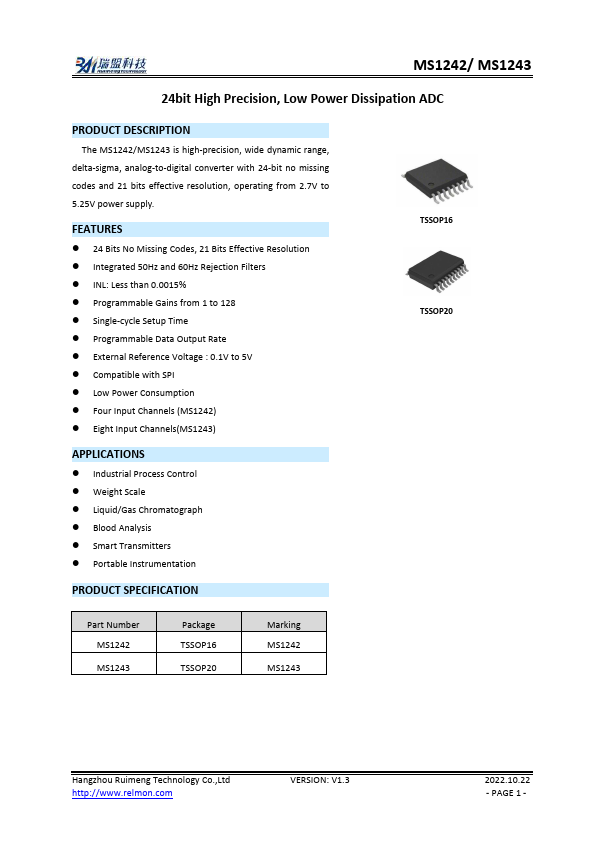

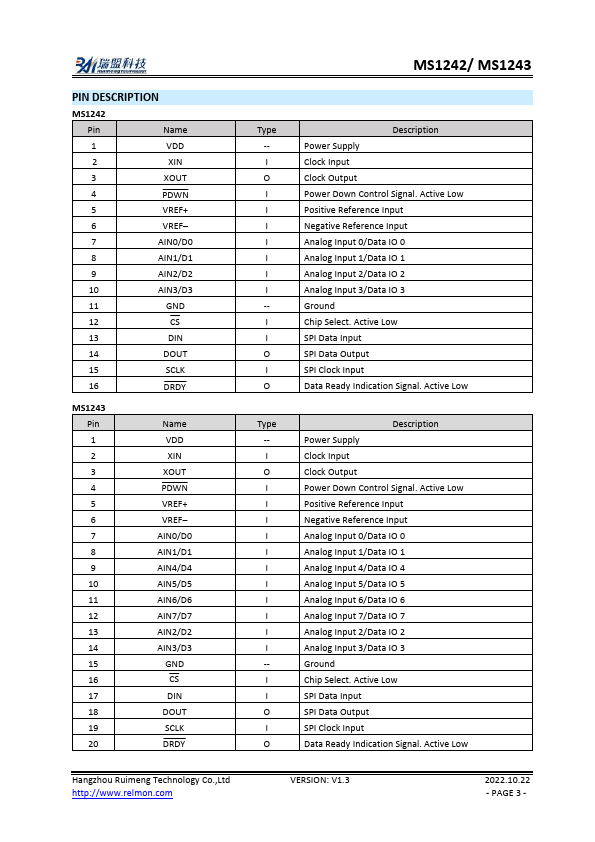

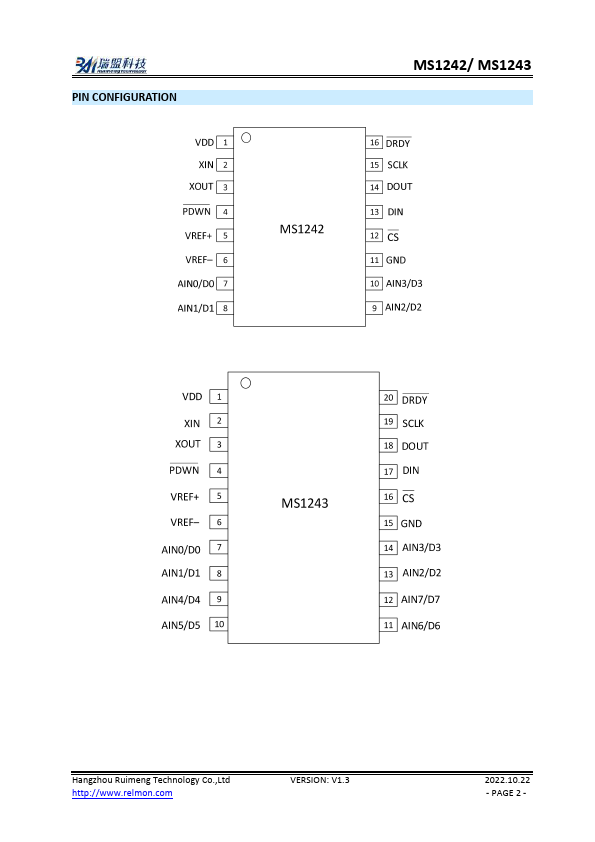

Datasheet preview – MS1242
