MS1243 - 24bit High Precision Low Power Dissipation ADC

This page provides the datasheet information for the MS1243, a member of the MS1242 24bit High Precision Low Power Dissipation ADC family.

Description

The MS1242/MS1243 is high-precision, wide dynamic range, delta-sigma, analog-to-digital converter with 24-bit no missing codes and 21 bits effective resolution, operating from 2.7V to 5.25V power supply.

Features

  • 24 Bits No Missing Codes, 21 Bits Effective Resolution.
  • Integrated 50Hz and 60Hz Rejection Filters.
  • INL: Less than 0.0015%.
  • Programmable Gains from 1 to 128.
  • Single-cycle Setup Time.
  • Programmable Data Output Rate.
  • External Reference Voltage : 0.1V to 5V.
  • Compatible with SPI.
  • Low Power Consumption.
  • Four Input Channels (MS1242).
  • Eight Input Channels(MS1243).

📥 Download Datasheet

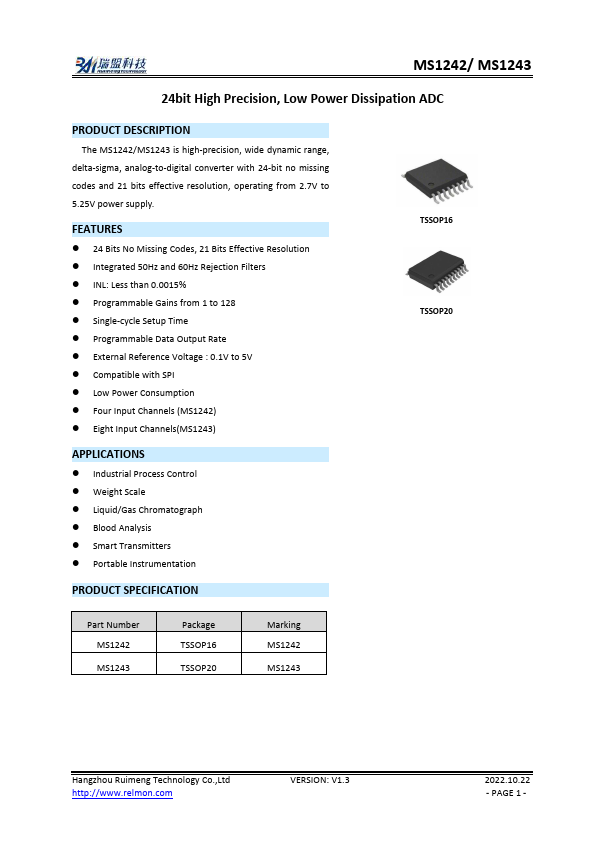

Datasheet preview – MS1243

Datasheet Details

Part number MS1243
Manufacturer Ruimeng
File Size 1.72 MB
Description 24bit High Precision Low Power Dissipation ADC
Datasheet download datasheet MS1243 Datasheet

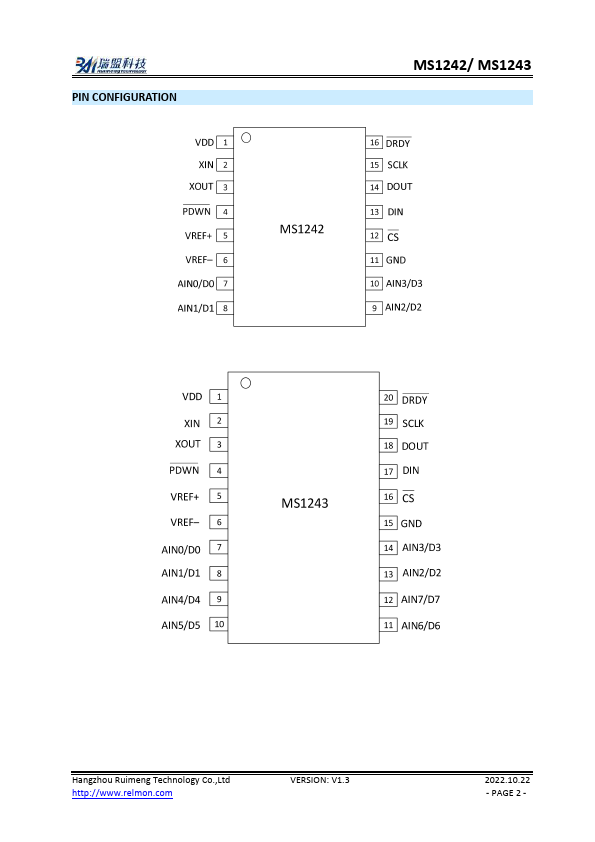

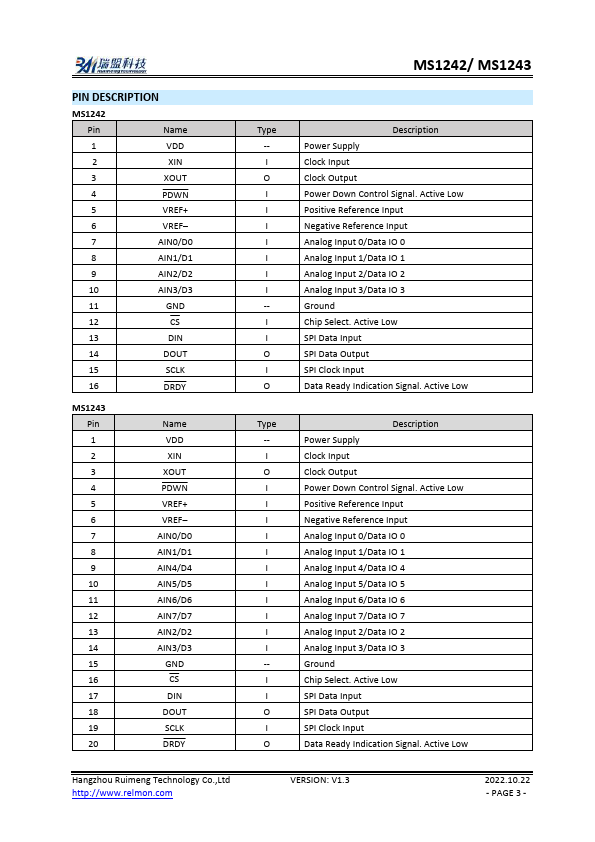

Additional preview pages of the MS1243 datasheet.
