MS2374 - Four Channel Differential Line Driver

Description

The MS2374 series is a four-channel complementary line driver, which meets the demands of ANSI TIA/EIA-422-B and ITU (original CCITT) suggestion V.11.

Tri-state outputs could provide high current for driving equalization lines, such as twisted-pair or parallel transmission line.

Features

  • Meet or Exceed the Demands of ANSI TIA/EIA-422-B and ITU.
  • 5V Single Power Supply.
  • Compatible with TTL.
  • Complementary Outputs.
  • High Output Impedance in Power-down Condition.
  • Complementary Output Enable Input.

📥 Download Datasheet

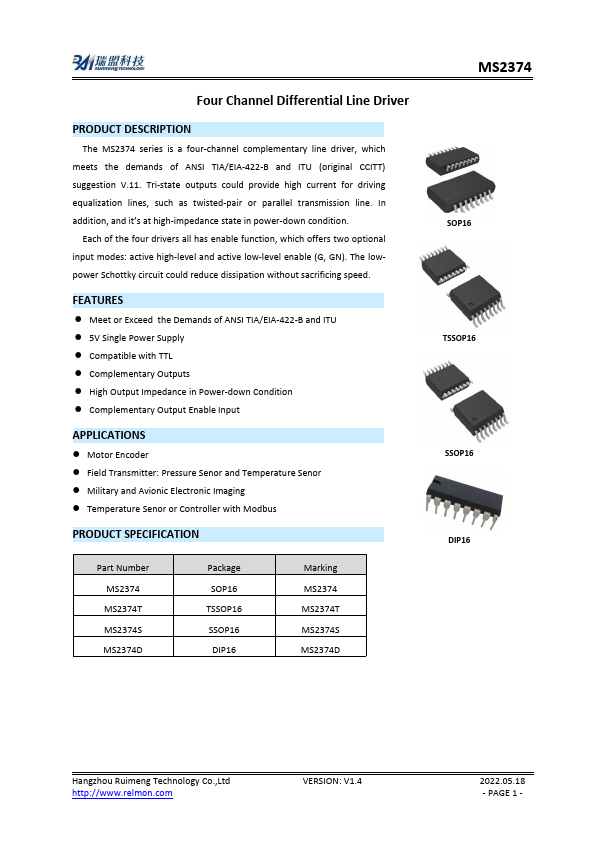

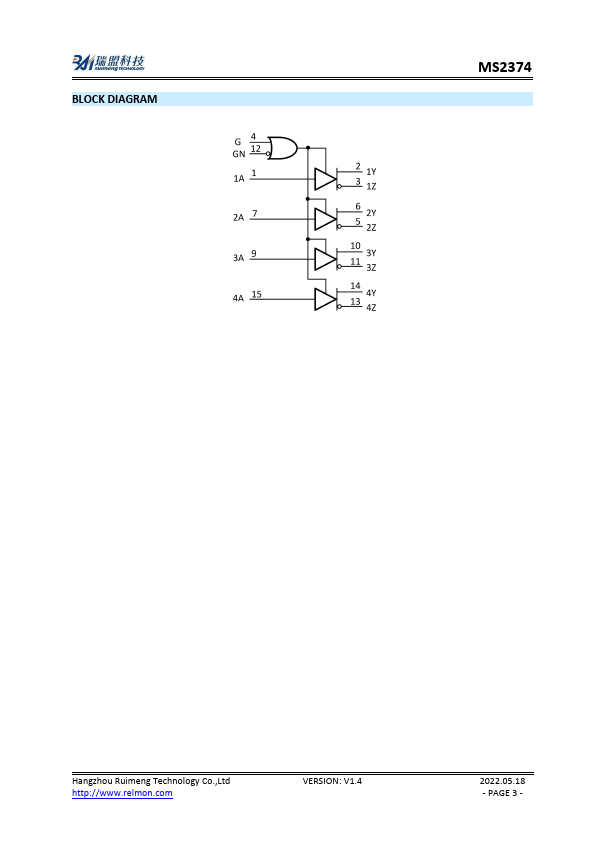

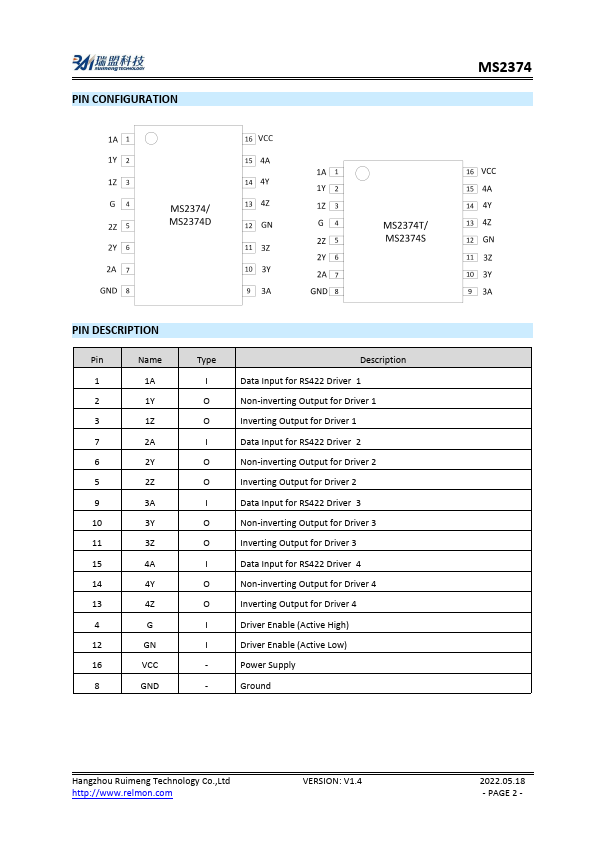

Datasheet preview – MS2374
