MS2374T - Four Channel Differential Line Driver

Download the MS2374T datasheet PDF (MS2374 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for four channel differential line driver.

Description

The MS2374 series is a four-channel complementary line driver, which meets the demands of ANSI TIA/EIA-422-B and ITU (original CCITT) suggestion V.11.

Tri-state outputs could provide high current for driving equalization lines, such as twisted-pair or parallel transmission line.

Features

  • Meet or Exceed the Demands of ANSI TIA/EIA-422-B and ITU.
  • 5V Single Power Supply.
  • Compatible with TTL.
  • Complementary Outputs.
  • High Output Impedance in Power-down Condition.
  • Complementary Output Enable Input.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MS2374-Ruimeng.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MS2374T
Manufacturer Ruimeng
File Size 1.41 MB
Description Four Channel Differential Line Driver
Datasheet download datasheet MS2374T Datasheet

📁 Similar Datasheet

Other Datasheets by Ruimeng
  • MS2374 - Four Channel Differential Line Driver
  • MS2375 - Four-channel differential line receiver
  • MS2375T - Four-channel differential line receiver
  • MS2267 - amplifier
  • MS2510 - 8-Bit High-Speed Analog-to-Digital (ADC) Converter
  • MS2631 - Single-channel 10-order HD video filtering driver
  • MS2659 - TONE RINGER
  • MS2681 - Single-channel 10-order HD video filtering driver

Full PDF Text Transcription

Click to expand full text

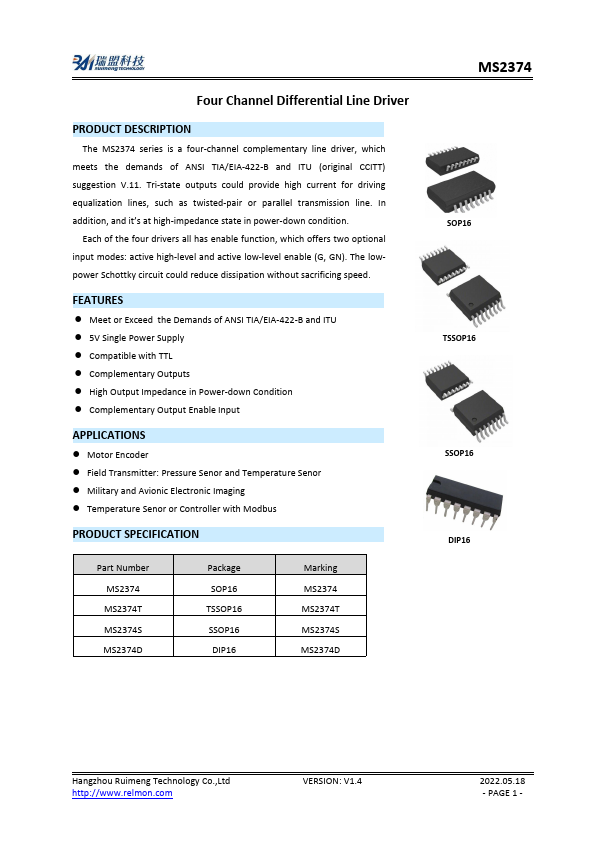

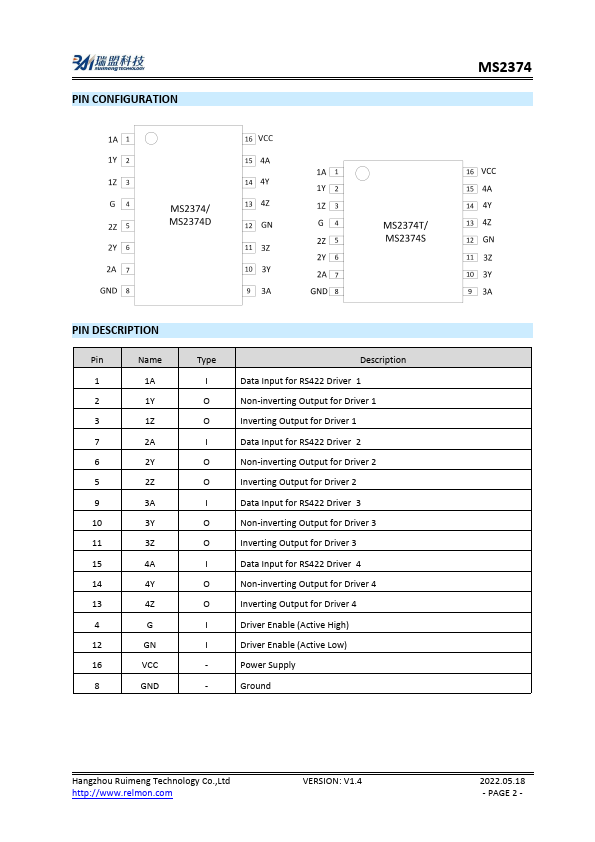

Four Channel Differential Line Driver PRODUCT DESCRIPTION The MS2374 series is a four-channel complementary line driver, which meets the demands of ANSI TIA/EIA-422-B and ITU (original CCITT) suggestion V.11. Tri-state outputs could provide high current for driving equalization lines, such as twisted-pair or parallel transmission line. In addition, and it’s at high-impedance state in power-down condition. Each of the four drivers all has enable function, which offers two optional input modes: active high-level and active low-level enable (G, GN). The lowpower Schottky circuit could reduce dissipation without sacrificing speed.
