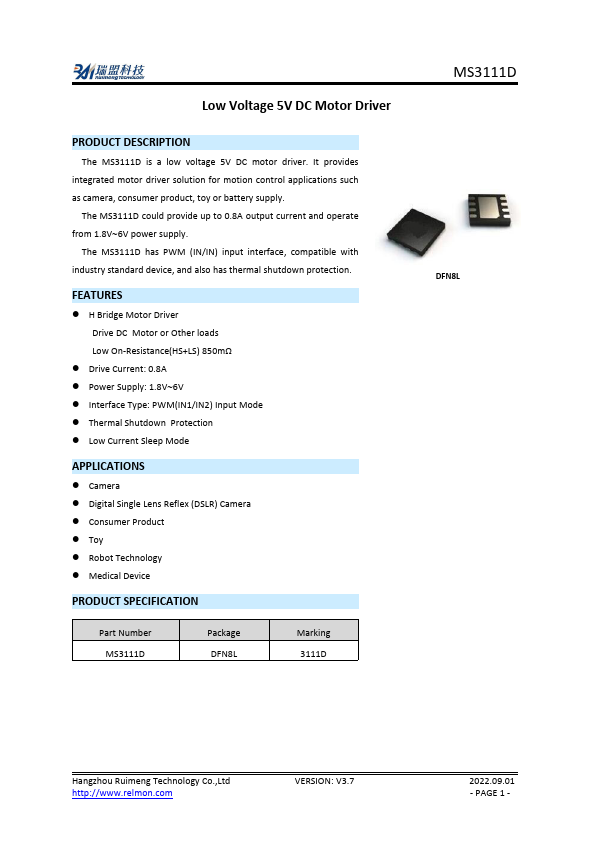

MS3111D
MS3111D is Low Voltage 5V DC Motor Driver manufactured by Ruimeng.
DESCRIPTION
The MS3111D is a low voltage 5V DC motor driver. It provides integrated motor driver solution for motion control applications such as camera, consumer product, toy or battery supply.
The MS3111D could provide up to 0.8A output current and operate from 1.8V6V power supply.
The MS3111D has PWM (IN/IN) input interface, patible with industry standard device, and also has thermal shutdown protection.
FEATURES
- H Bridge Motor Driver Drive DC Motor or Other loads Low On-Resistance(HS+LS) 850mΩ
- Drive Current: 0.8A
- Power Supply: 1.8V6V
- Interface Type: PWM(IN1/IN2) Input Mode
- Thermal Shutdown Protection
- Low Current Sleep Mode
APPLICATIONS
- Camera
- Digital Single Lens Reflex (DSLR) Camera
- Consumer Product
- Toy
- Robot Technology
- Medical Device
PRODUCT SPECIFICATION
Part Number MS3111D
Package DFN8L
Marking 3111D
DFN8L
Hangzhou Ruimeng Technology Co.,Ltd http://.relmon.
VERSION: V3.7
- PAGE 1

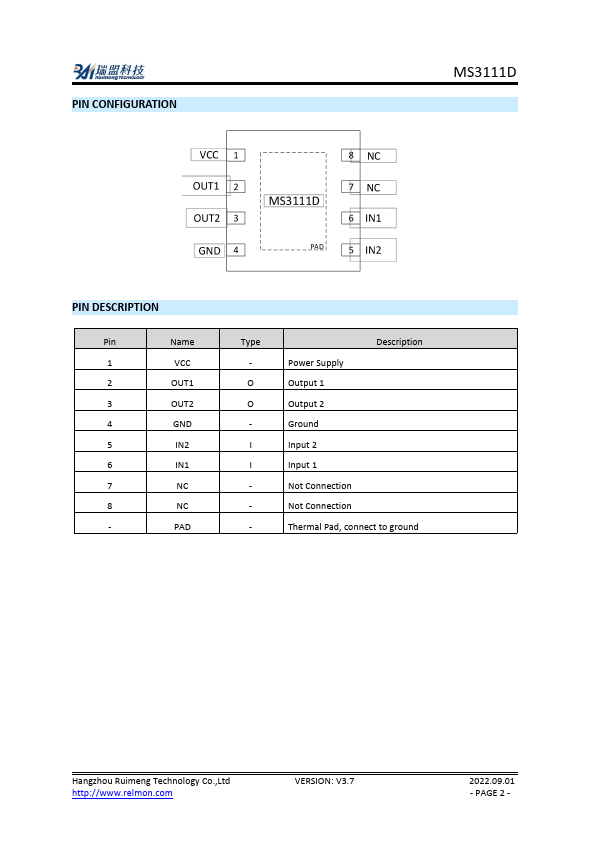

- PIN CONFIGURATION
PIN DESCRIPTION
Pin
Name
OUT1
OUT2
IN2
IN1...
