MS40 - Bipolar Hall-effect Sensor

Datasheet Summary

Description

The MS40/MS40S is bipolar hall switch circuit, which has fast response speed and high sensitivity.

The MS40/MS40S is also featured by wide operating temperature range, high reliability and reverse voltage protection.

DC operating voltage ranges from 4.5V to 24V.

Features

Small Outline Package.
Bipolar Magnetic Field Sensing, High Sensitivity, Specially Suitable for Speed Sensing and Rotation Detection.

Ruimeng

📥 Download Datasheet

Datasheet Details

Part number	MS40
Manufacturer	Ruimeng
File Size	533.29 KB
Description	Bipolar Hall-effect Sensor
Datasheet	MS40 Datasheet

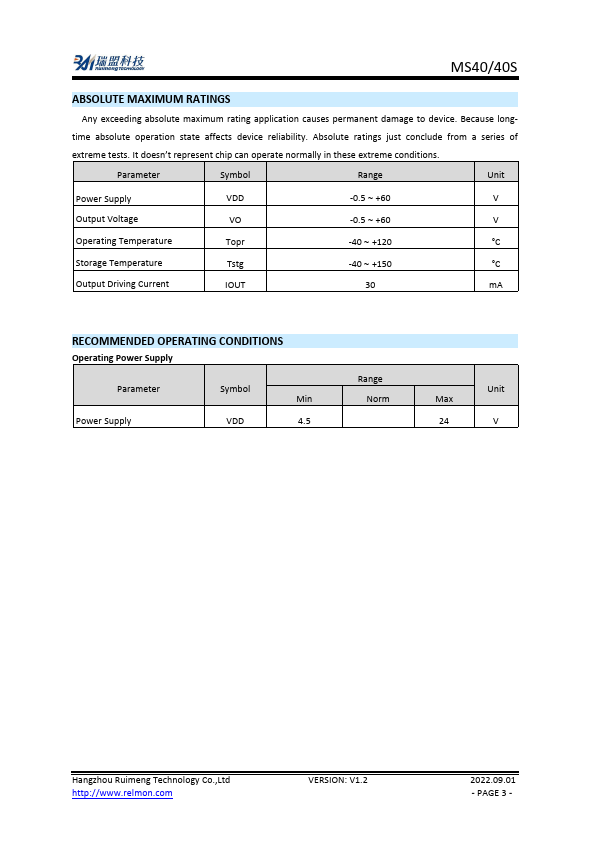

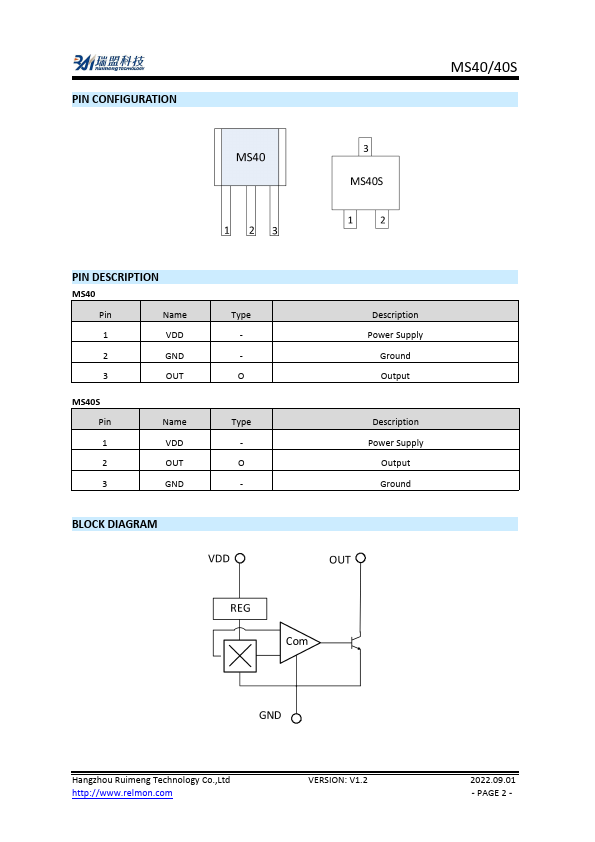

Additional preview pages of the MS40 datasheet.

📁 Similar Datasheet

MS40 - Surface Mount Si-Bridge-Rectifiers (Diotec Semiconductor)
MS4 - SLOW BLOW MICRO FUSE (Bel)
MS412FE - Lithium Rechargeable Battery (Seiko)
MS414GE - Lithium Rechargeable Battery (Seiko)
MS41919 - Web video camera & Surveillance camera with the lens driver chip (Rui UNITA)
MS4515 - pressure transducer (TE)
MS4515DO - pressure transducer (TE)
MS4525 - pressure transducer (TE)
MS4525DO - pressure transducer (TE)
MS456A - 7-Segment Numeric Display (Micro Electronics)

Other Datasheets by Ruimeng

MS40S - Bipolar Hall-effect Sensor
MS41929 - Lens Driver
MS41949 - micro-stepping motor drive
MS4554N - 4bit bi-directional level converter

Full PDF Text Transcription

Click to expand full text

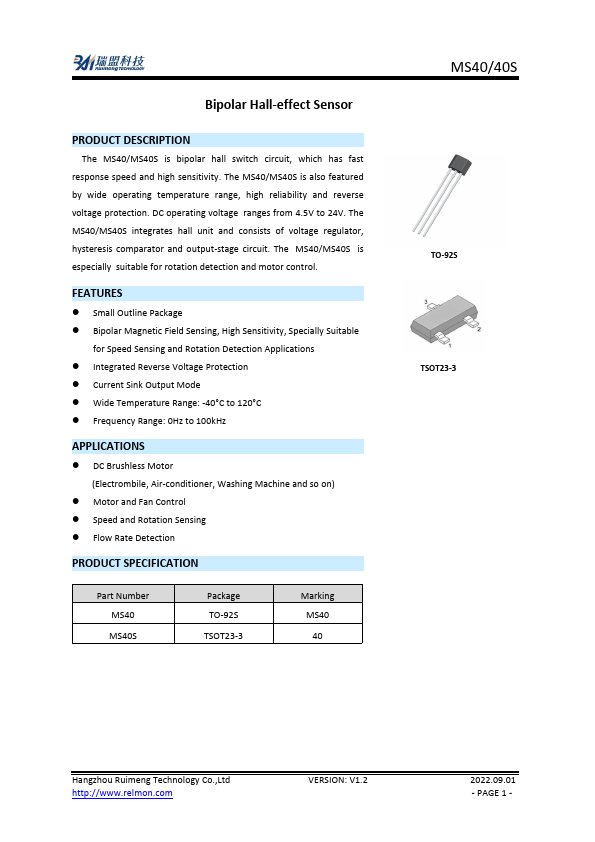

Bipolar Hall-effect Sensor PRODUCT DESCRIPTION The MS40/MS40S is bipolar hall switch circuit, which has fast response speed and high sensitivity. The MS40/MS40S is also featured by wide operating temperature range, high reliability and reverse voltage protection. DC operating voltage ranges from 4.5V to 24V. The MS40/MS40S integrates hall unit and consists of voltage regulator, hysteresis comparator and outputstage circuit. The MS40/MS40S is especially suitable for rotation detection and motor control.
