MS40S - Bipolar Hall-effect Sensor

This page provides the datasheet information for the MS40S, a member of the MS40 Bipolar Hall-effect Sensor family.

Datasheet Summary

Description

The MS40/MS40S is bipolar hall switch circuit, which has fast response speed and high sensitivity.

The MS40/MS40S is also featured by wide operating temperature range, high reliability and reverse voltage protection.

DC operating voltage ranges from 4.5V to 24V.

Features

  • Small Outline Package.
  • Bipolar Magnetic Field Sensing, High Sensitivity, Specially Suitable for Speed Sensing and Rotation Detection.

📥 Download Datasheet

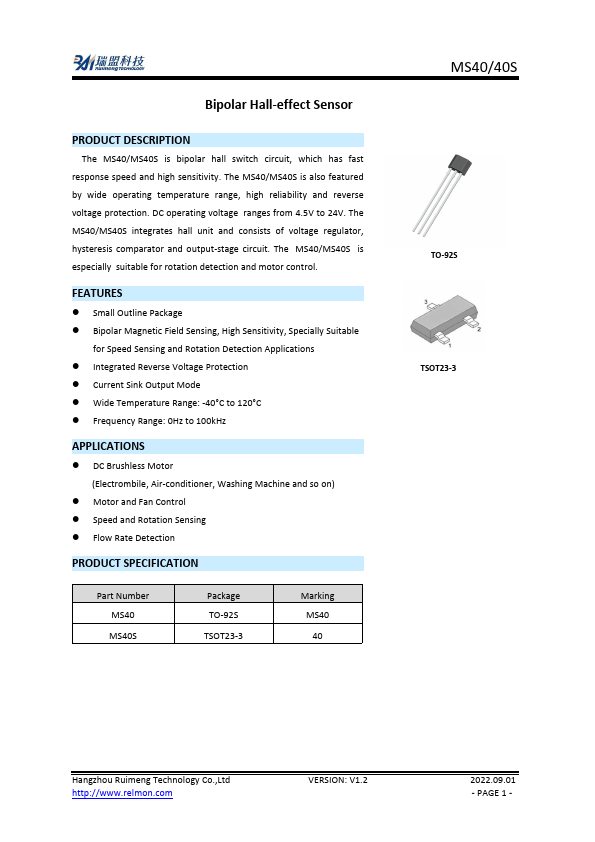

Datasheet preview – MS40S

Datasheet Details

Part number MS40S
Manufacturer Ruimeng
File Size 533.29 KB
Description Bipolar Hall-effect Sensor
Datasheet download datasheet MS40S Datasheet
Additional preview pages of the MS40S datasheet.

📁 Similar Datasheet

  • MS40 - Surface Mount Si-Bridge-Rectifiers (Diotec Semiconductor)
  • MS4 - SLOW BLOW MICRO FUSE (Bel)
  • MS412FE - Lithium Rechargeable Battery (Seiko)
  • MS414GE - Lithium Rechargeable Battery (Seiko)
  • MS41919 - Web video camera & Surveillance camera with the lens driver chip (Rui UNITA)
  • MS4515 - pressure transducer (TE)
  • MS4515DO - pressure transducer (TE)
  • MS4525 - pressure transducer (TE)
  • MS4525DO - pressure transducer (TE)
  • MS456A - 7-Segment Numeric Display (Micro Electronics)
Other Datasheets by Ruimeng
  • MS40 - Bipolar Hall-effect Sensor
  • MS41929 - Lens Driver
  • MS41949 - micro-stepping motor drive
  • MS4554N - 4bit bi-directional level converter

Full PDF Text Transcription

Click to expand full text

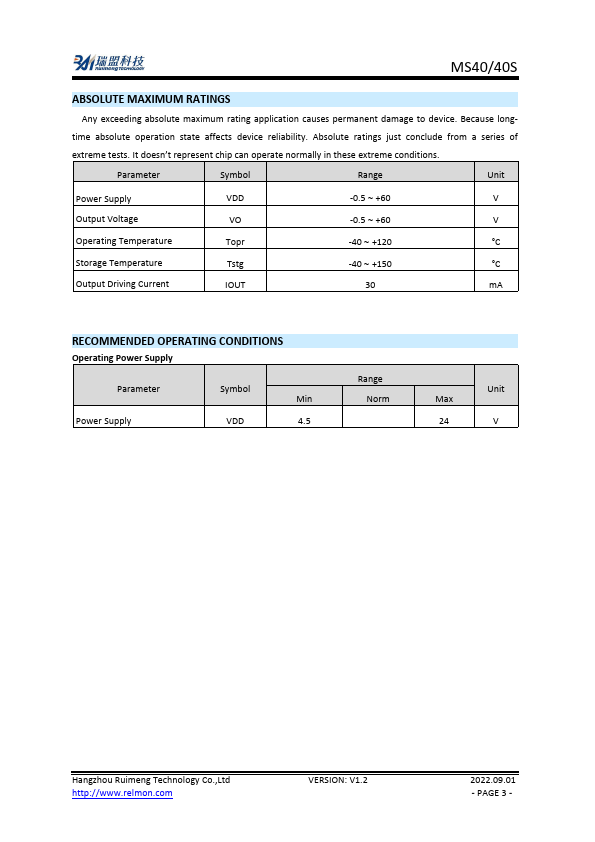

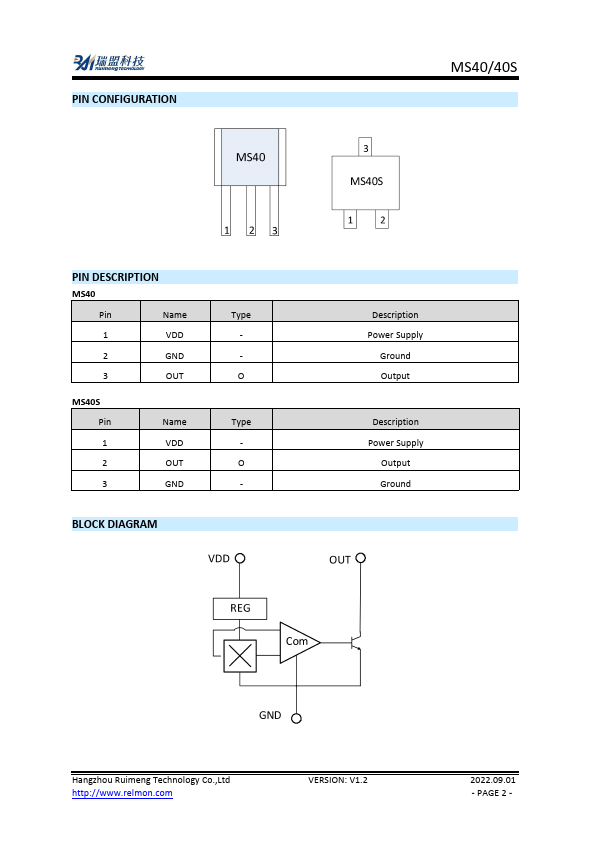

Bipolar Hall-effect Sensor PRODUCT DESCRIPTION The MS40/MS40S is bipolar hall switch circuit, which has fast response speed and high sensitivity. The MS40/MS40S is also featured by wide operating temperature range, high reliability and reverse voltage protection. DC operating voltage ranges from 4.5V to 24V. The MS40/MS40S integrates hall unit and consists of voltage regulator, hysteresis comparator and output­stage circuit. The MS40/MS40S is especially suitable for rotation detection and motor control.
