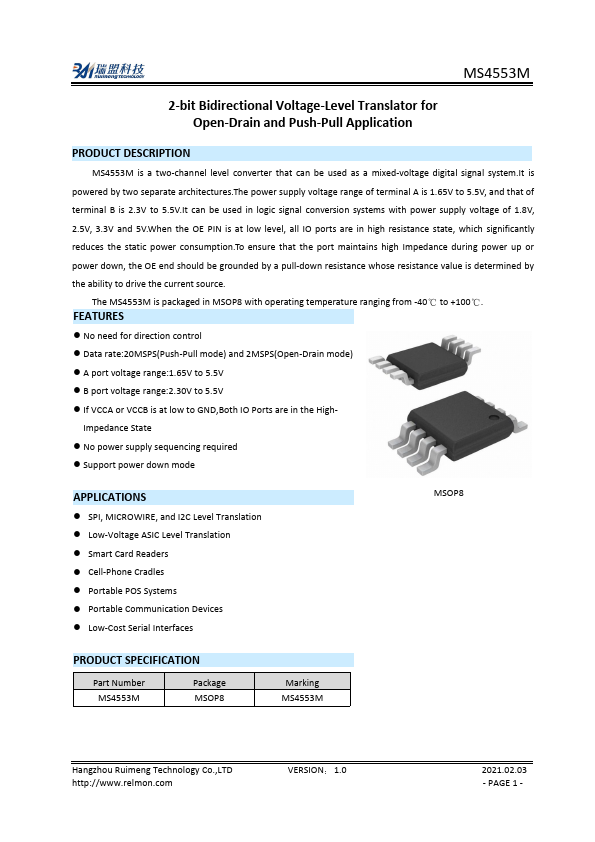

MS4553M Description
MS4553M is a two-channel level converter that can be used as a mixed-voltage digital signal system.It is powered by two separate architectures.The power supply voltage range of terminal A is 1.65V to 5.5V, and that of terminal B is 2.3V to 5.5V.It can be used in logic signal conversion systems with power supply voltage of 1.8V, 2.5V, 3.3V and 5V.When the OE PIN is at low level, all IO ports are in high resistance...
MS4553M Key Features
- No need for direction control
- Data rate:20MSPS(Push-Pull mode) and 2MSPS(Open-Drain mode)
- A port voltage range:1.65V to 5.5V
- B port voltage range:2.30V to 5.5V
- If VCCA or VCCB is at low to GND,Both IO Ports are in the High
- No power supply sequencing required
- Support power down mode
