MS5614 Datasheet 2.5v To 5.5v 12-bit Dac

Manufacturer: Ruimeng

Overview: MS5614/5614T 2.5V to 5.5V 12Bit DAC with POWER DOWN PRODUCT.

Datasheet Details

Part number MS5614
Manufacturer Ruimeng
File Size 756.48 KB
Description 2.5V to 5.5V 12-Bit DAC
Datasheet MS5614-Ruimeng.pdf

General Description

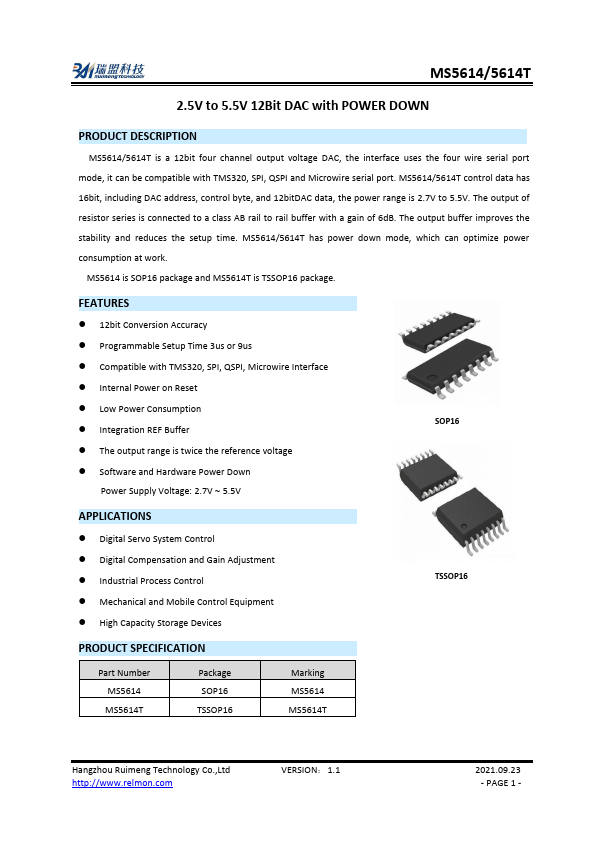

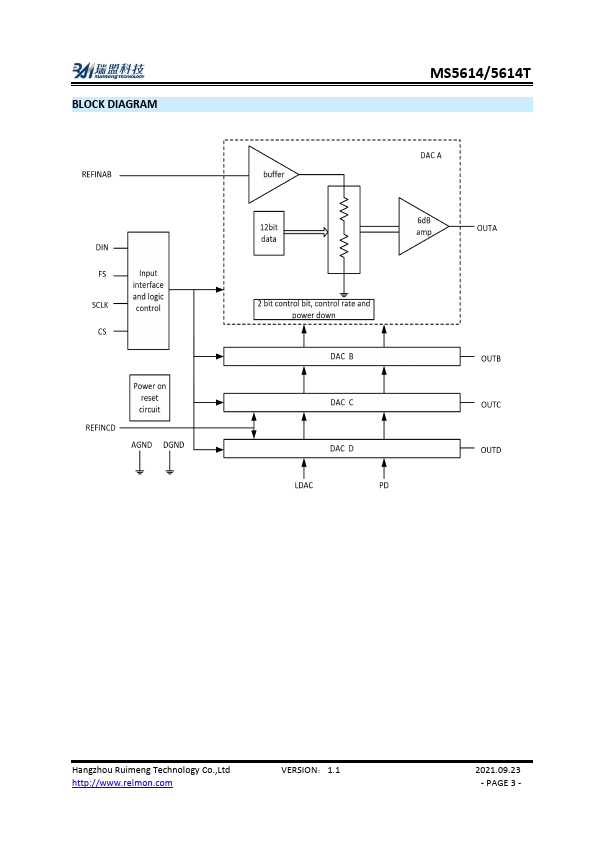

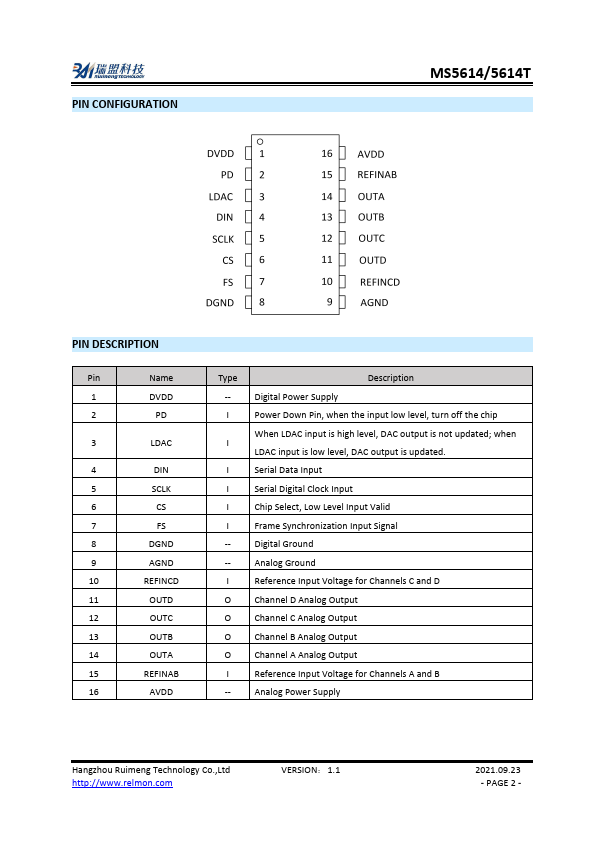

MS5614/5614T is a 12bit four channel output voltage DAC, the interface uses the four wire serial port mode, it can be compatible with TMS320, SPI, QSPI and Microwire serial port.

MS5614/5614T control data has 16bit, including DAC address, control byte, and 12bitDAC data, the power range is 2.7V to 5.5V.

The output of resistor series is connected to a class AB rail to rail buffer with a gain of 6dB.

Key Features

  • 12bit Conversion Accuracy.
  • Programmable Setup Time 3us or 9us.
  • Compatible with TMS320, SPI, QSPI, Microwire Interface.
  • Internal Power on Reset.
  • Low Power Consumption.
  • Integration REF Buffer.
  • The output range is twice the reference voltage.
  • Software and Hardware Power Down Power Supply Voltage: 2.7V  5.5V SOP16.
