MS7705 - 16-bit Analog to Digital Converter

Description

The MS7705/MS7706 is an analog-to-digital converter for low-frequency measurement.

It uses Σ-Δ conversion technology to realize 16-bit no missing codes feature.

The operating voltage range is 2.7V-3.3V or 4.75V-5.25V.

Features

  • MS7705: Two Fully Differential Input Channels.
  • MS7706: Three Pseudo Differential Input Channels.
  • 16-bit No Missing Codes.
  • 0.003% Non-linearity.
  • PGA: Gain from 1 to 128.
  • Serial Port: SPI, QSPI,.

📥 Download Datasheet

Datasheet Details

Part number MS7705
Manufacturer Ruimeng
File Size 521.63 KB
Description 16-bit Analog to Digital Converter
Datasheet download datasheet MS7705 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MS7 MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS RUBYCON CORPORATION
MS7200 HD to Digital RGB/YUV MACRO SILICON
MS7212 PRESSURE SENSOR DIE Measurement
MS7212-A2 Hermetic Pressure Sensor Die Measurement
MS74181 Power Inductor Fenghua Advanced Technology

Other Datasheets by Ruimeng

Part Number Description
MS7706 16-bit Analog to Digital Converter
MS721 Meter bus (M-Bus) slave transceiver circuit
MS7332M Integrated Single Video Amplifier And Video Coaxial Control Decoder
MS7335M Integrated single-channel video op-amp
MS7336M HD/FHD Selectable Video Filter Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

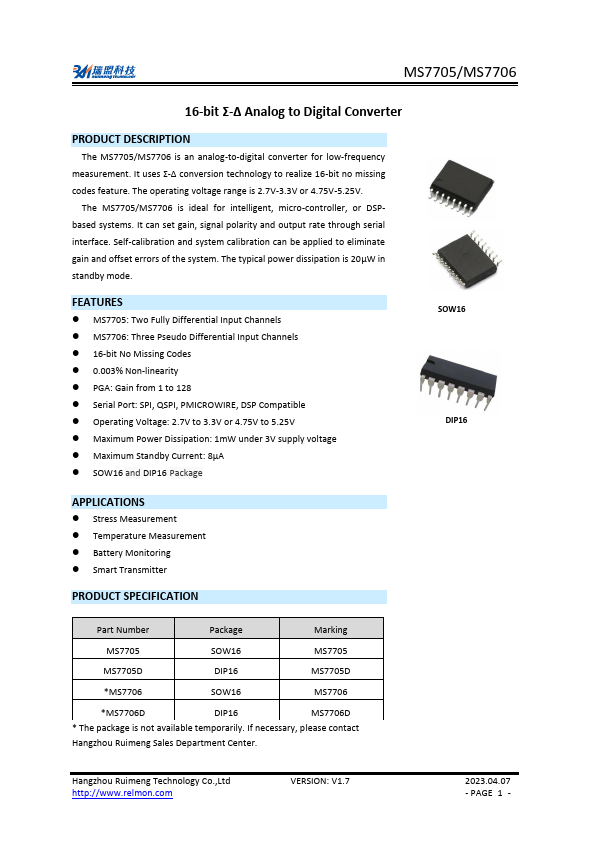

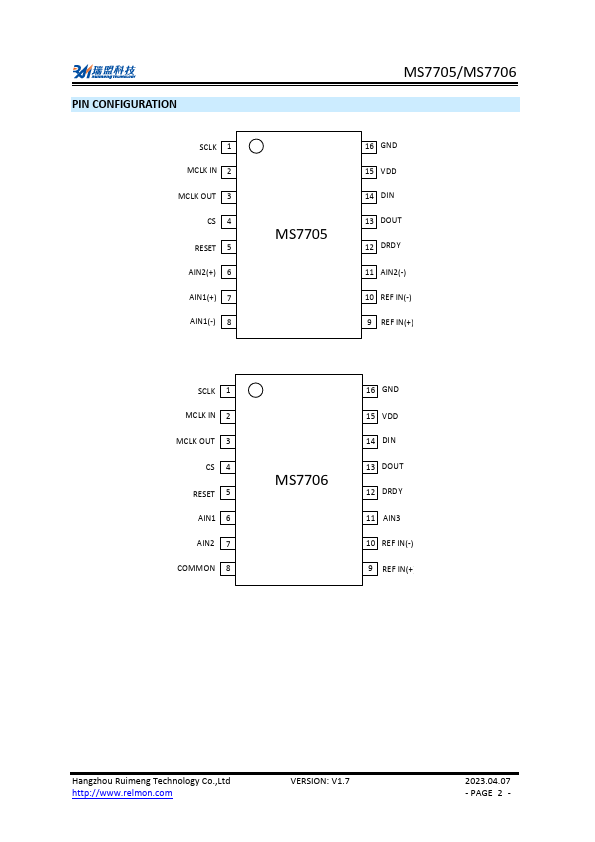

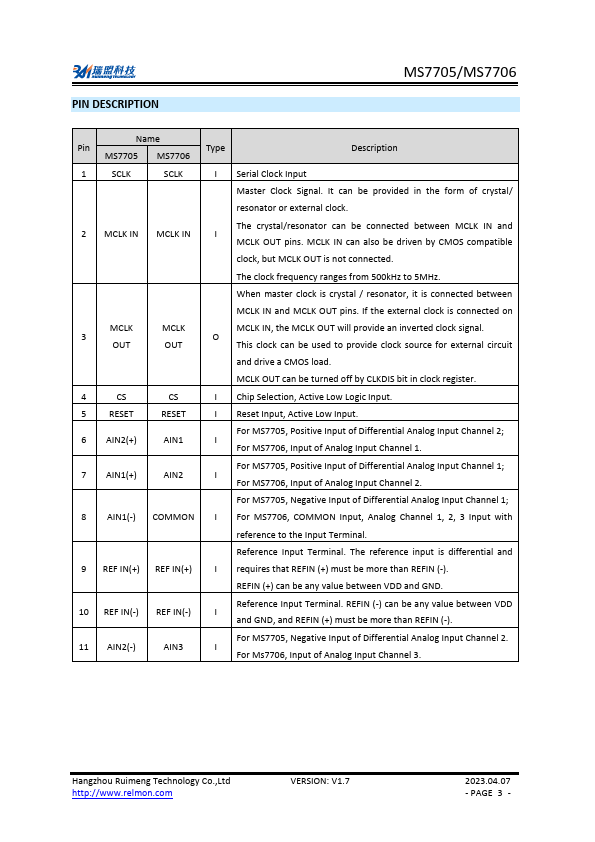

MS7705/MS7706 16-bit Σ-Δ Analog to Digital Converter PRODUCT DESCRIPTION The MS7705/MS7706 is an analog-to-digital converter for low-frequency measurement. It uses Σ-Δ conversion technology to realize 16-bit no missing codes feature. The operating voltage range is 2.7V-3.3V or 4.75V-5.25V. The MS7705/MS7706 is ideal for intelligent, micro-controller, or DSPbased systems. It can set gain, signal polarity and output rate through serial interface. Self-calibration and system calibration can be applied to eliminate gain and offset errors of the system. The typical power dissipation is 20μW in standby mode. FEATURES ⚫ MS7705: Two Fully Differential Input Channels ⚫ MS7706: Three Pseudo Differential Input Channels ⚫ 16-bit No Missing Codes ⚫ 0.
