MS8231 - Rail-to-Rail Input and Output Operational Amplifier

Description

The MS8231/8232 is a single-channel or a dual-channel rail-to-rail input and output operational amplifier with single power supply.

These characteristics like low power dissipation and high precision make itself suitable for battery-powered system and portable electronic system.

Features

  • Rail-to-Rail Input and Output.
  • Low Offset Voltage (Max): ±0.75mV.
  • Low Quiescent Current: 1μA.
  • Power Supply Voltage: 1.8V to 5.5V.
  • Gain Bandwidth: 13kHz.
  • Temperature Range: -40°C to 120°C.

📥 Download Datasheet

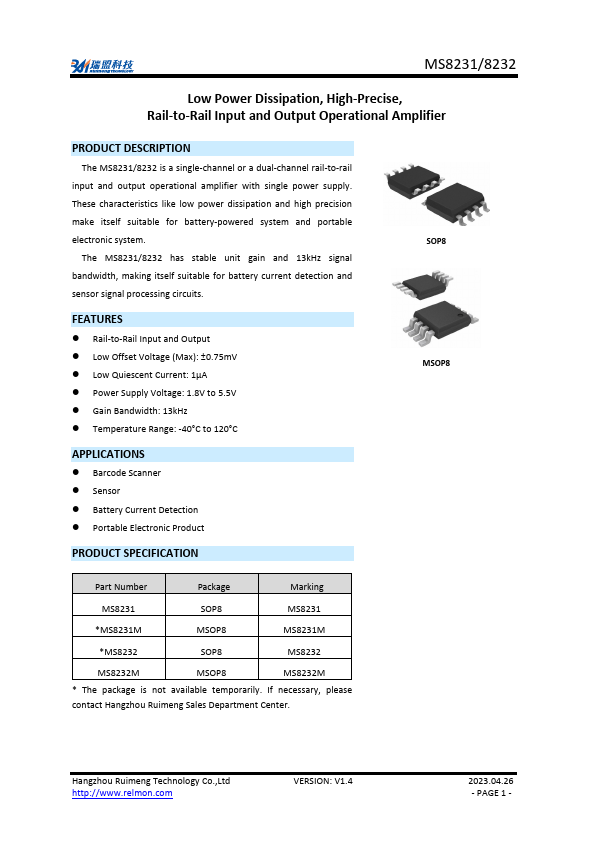

Datasheet preview – MS8231

Datasheet Details

Part number MS8231
Manufacturer Ruimeng
File Size 462.97 KB
Description Rail-to-Rail Input and Output Operational Amplifier
Datasheet download datasheet MS8231 Datasheet

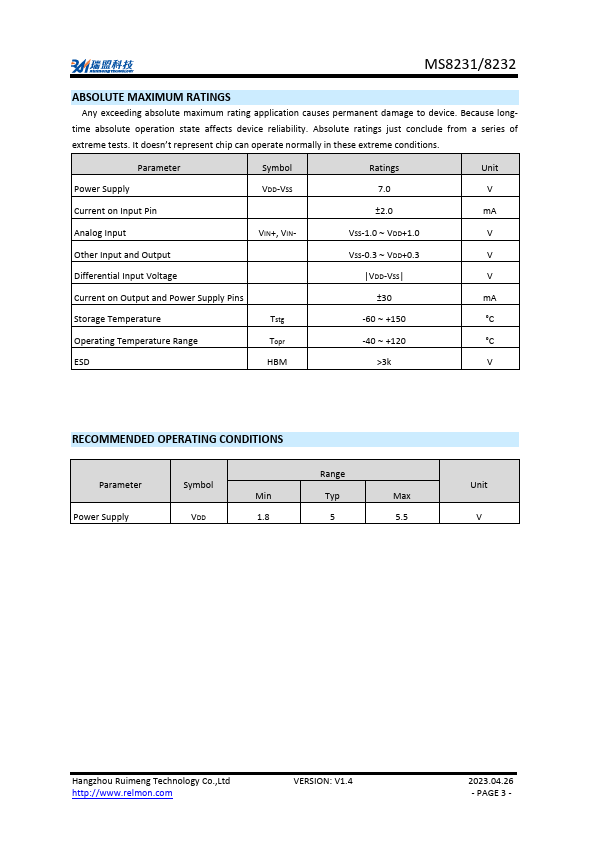

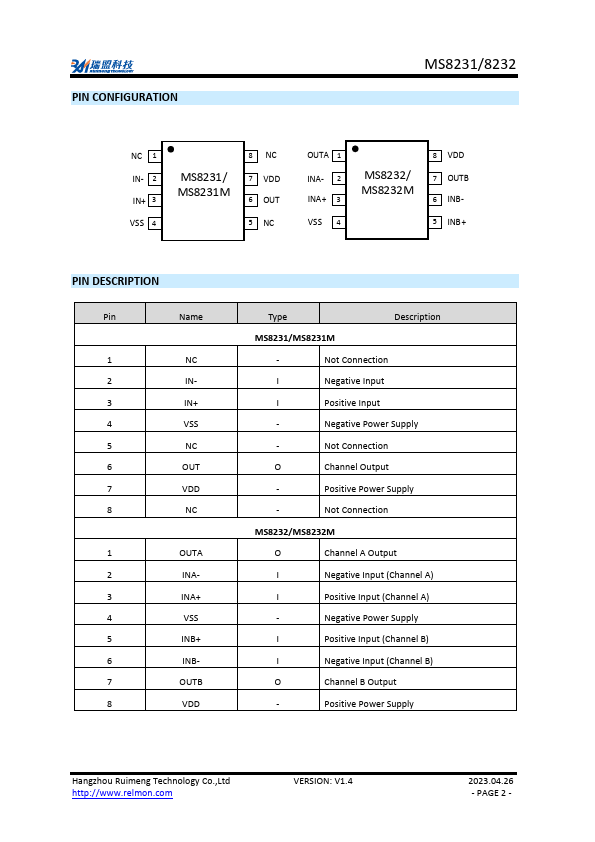

Additional preview pages of the MS8231 datasheet.

📁 Similar Datasheet

  • MS8230B - Digital Multimeter Manual (Mastech)
  • MS8236 - DIGITAL CLAMP METER Manual (Mastech)
  • MS820 - 8 Amp Schottky Barrier Rectifier (Micro Commercial Components)
  • MS8208 - Secondary cost meter (microsyst)
  • MS8229 - DIGITAL MULTIMETER (Mastech)
  • MS8240B - Digital Multimeter Manual (Mastech)
  • MS8250-48 - Schottky Diodes (Microsemi)
  • MS8250A - Digital Multimeter Manual (Mastech)
  • MS8250B - Digital Multimeter Manual (Mastech)
  • MS8261 - DIGITAL MULTIMETER Manual (Mastech)
Other Datasheets by Ruimeng
  • MS8232 - Rail-to-Rail Input and Output Operational Amplifier
  • MS8228 - Dual-channel low-offset operational amplifier
  • MS8241 - Voltage Feedback Amplifier
  • MS8241M - Voltage Feedback Amplifier
  • MS8251 - Low-noise CMOS rail-to-rail input/output operational amplifier
  • MS8051 - CMOS Operational Amplifier
  • MS8052 - CMOS Operational Amplifier
  • MS8054 - CMOS Operational Amplifier

Full PDF Text Transcription

Click to expand full text
MS8231/8232 Low Power Dissipation, High-Precise, Rail-to-Rail Input and Output Operational Amplifier PRODUCT DESCRIPTION The MS8231/8232 is a single-channel or a dual-channel rail-to-rail input and output operational amplifier with single power supply. These characteristics like low power dissipation and high precision make itself suitable for battery-powered system and portable electronic system. The MS8231/8232 has stable unit gain and 13kHz signal bandwidth, making itself suitable for battery current detection and sensor signal processing circuits. FEATURES  Rail-to-Rail Input and Output  Low Offset Voltage (Max): ±0.75mV  Low Quiescent Current: 1μA  Power Supply Voltage: 1.8V to 5.
