MS8232 - Rail-to-Rail Input and Output Operational Amplifier

Download the MS8232 datasheet PDF. This datasheet also covers the MS8231 variant, as both devices belong to the same rail-to-rail input and output operational amplifier family and are provided as variant models within a single manufacturer datasheet.

Description

The MS8231/8232 is a single-channel or a dual-channel rail-to-rail input and output operational amplifier with single power supply.

These characteristics like low power dissipation and high precision make itself suitable for battery-powered system and portable electronic system.

Features

  • Rail-to-Rail Input and Output.
  • Low Offset Voltage (Max): ±0.75mV.
  • Low Quiescent Current: 1μA.
  • Power Supply Voltage: 1.8V to 5.5V.
  • Gain Bandwidth: 13kHz.
  • Temperature Range: -40°C to 120°C.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MS8231-Ruimeng.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MS8232
Manufacturer Ruimeng
File Size 462.97 KB
Description Rail-to-Rail Input and Output Operational Amplifier
Datasheet download datasheet MS8232 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MS8230B Digital Multimeter Manual Mastech
MS8236 DIGITAL CLAMP METER Manual Mastech
MS820 8 Amp Schottky Barrier Rectifier Micro Commercial Components
MS8208 Secondary cost meter microsyst
MS8229 DIGITAL MULTIMETER Mastech

Other Datasheets by Ruimeng

Part Number Description
MS8231 Rail-to-Rail Input and Output Operational Amplifier
MS8228 Dual-channel low-offset operational amplifier
MS8241 Voltage Feedback Amplifier
MS8241M Voltage Feedback Amplifier
MS8251 Low-noise CMOS rail-to-rail input/output operational amplifier

Full PDF Text Transcription

Click to expand full text

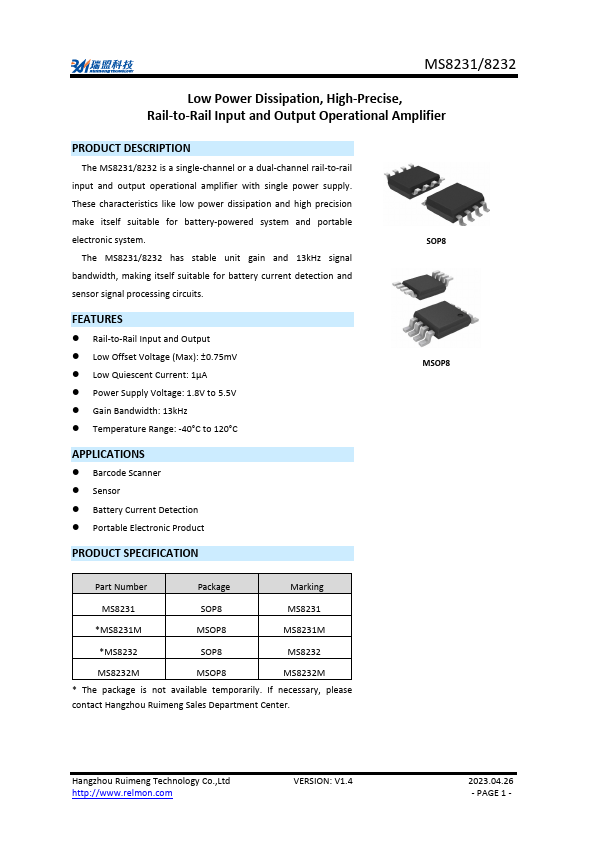

MS8231/8232 Low Power Dissipation, High-Precise, Rail-to-Rail Input and Output Operational Amplifier PRODUCT DESCRIPTION The MS8231/8232 is a single-channel or a dual-channel rail-to-rail input and output operational amplifier with single power supply. These characteristics like low power dissipation and high precision make itself suitable for battery-powered system and portable electronic system. The MS8231/8232 has stable unit gain and 13kHz signal bandwidth, making itself suitable for battery current detection and sensor signal processing circuits. FEATURES  Rail-to-Rail Input and Output  Low Offset Voltage (Max): ±0.75mV  Low Quiescent Current: 1μA  Power Supply Voltage: 1.8V to 5.
