MS8604 - Wideband Operational Amplifier

Download the MS8604 datasheet PDF (MS8601 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for wideband operational amplifier.

Description

The MS8601,MS8602,MS8604 are single,dual,four channel rail-to-rail input/output and single power amplifiers respectively.

The device is featured by ultra-low offset voltage and wide signal bandwidth.

And it adopts 1.8V to 5V single power supply (±0.9 V to ±2.5 V dual power).

Features

  • making the device drift approach zero throughout the operating temperature, are beneficial to position and pressure sensor, medical device and strain gauge.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MS8601-Ruimeng.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MS8604
Manufacturer Ruimeng
File Size 1.02 MB
Description Wideband Operational Amplifier
Datasheet download datasheet MS8604 Datasheet

📁 Similar Datasheet

  • MS860 - 8 Amp Schottky Barrier Rectifier (Micro Commercial Components)
  • MS8607-02BA01 - PHT Combination Sensor (TE)
  • MS80 - Surface Mount Si-Bridge-Rectifiers (Diotec Semiconductor)
  • MS8000 - Single axis analog accelerometer (SAFRAN)
  • MS8001 - GaAs Schottky Diodes (Microsemi)
  • MS8002 - GaAs Schottky Diodes (Microsemi)
  • MS8003 - GaAs Schottky Diodes (Microsemi)
  • MS8004 - GaAs Schottky Diodes (Microsemi)
  • MS808C06 - Schottky Barrier Diode (Fuji Electric)
  • MS809 - Schottky Diodes (Infineon Technologies)
Other Datasheets by Ruimeng
  • MS8601 - Wideband Operational Amplifier
  • MS8602 - Wideband Operational Amplifier
  • MS8605 - Rail-to-Rail Input and Output Amplifier
  • MS8606 - Rail-to-Rail Input and Output Amplifier
  • MS8608 - Rail-to-rail input/output operational amplifier
  • MS8608T - Rail-to-rail input/output operational amplifier
  • MS8613 - Rail-to-Rail Input and Output Operational Amplifier
  • MS8617 - Rail-to-Rail Input and Output Operational Amplifier

Full PDF Text Transcription

Click to expand full text

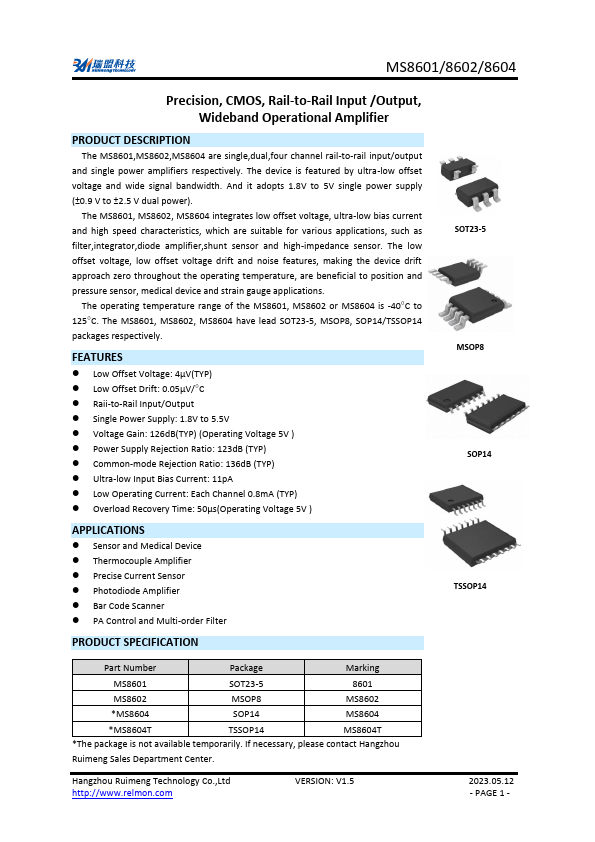

MS8601/8602/8604 Precision, CMOS, Rail-to-Rail Input /Output, Wideband Operational Amplifier PRODUCT DESCRIPTION The MS8601,MS8602,MS8604 are single,dual,four channel rail-to-rail input/output and single power amplifiers respectively. The device is featured by ultra-low offset voltage and wide signal bandwidth. And it adopts 1.8V to 5V single power supply (±0.9 V to ±2.5 V dual power). The MS8601, MS8602, MS8604 integrates low offset voltage, ultra-low bias current and high speed characteristics, which are suitable for various applications, such as filter,integrator,diode amplifier,shunt sensor and high-impedance sensor.
